Rabbit Recombinant Monoclonal Glypican 3 antibody. Suitable for Flow Cyt, WB, IHC-P, ICC/IF and reacts with Human samples. Cited in 7 publications.

Be the first to review this product! Submit a review

Images

Flow Cytometry - Anti-Glypican 3 antibody [SP86] (AB95363), expandable thumbnail
  • Flow Cytometry - Anti-Glypican 3 antibody [SP86] (AB95363), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (AB95363), expandable thumbnail
  • Immunocytochemistry/ Immunofluorescence - Anti-Glypican 3 antibody [SP86] (AB95363), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (AB95363), expandable thumbnail

Publications

Key facts

Isotype

IgG

Host species

Rabbit

Storage buffer

pH: 7.2 - 7.4
Preservative: 0.1% Sodium azide
Constituents: PBS, 1% BSA

Form

Liquid

Clonality

Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow CytWBIHC-PICC/IF
Human
Tested
Tested
Tested
Tested

Tested
Tested

Species

Human

Dilution info

1/80

Notes

Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 - Rabbit monoclonal IgG, is suitable for use as an isotype control with this antibody.

Tested
Tested

Species

Human

Dilution info

-

Notes

-

Tested
Tested

Species

Human

Dilution info

1/100

Notes

Perform heat mediated antigen retrieval (boil tissue section in 10mM citrate buffer, pH 6.0 for 10 min followed by cooling at RT for 20 min).

Tested
Tested

Species

Human

Dilution info

1/200

Notes

-

Associated Products

Select an associated product type

10 products for Alternative Product

Target data

Function

Cell surface proteoglycan that bears heparan sulfate (PubMed:14610063). Negatively regulates the hedgehog signaling pathway when attached via the GPI-anchor to the cell surface by competing with the hedgehog receptor PTC1 for binding to hedgehog proteins (By similarity). Binding to the hedgehog protein SHH triggers internalization of the complex by endocytosis and its subsequent lysosomal degradation (By similarity). Positively regulates the canonical Wnt signaling pathway by binding to the Wnt receptor Frizzled and stimulating the binding of the Frizzled receptor to Wnt ligands (PubMed:16227623, PubMed:24496449). Positively regulates the non-canonical Wnt signaling pathway (By similarity). Binds to CD81 which decreases the availability of free CD81 for binding to the transcriptional repressor HHEX, resulting in nuclear translocation of HHEX and transcriptional repression (By similarity). Inhibits the dipeptidyl peptidase activity of DPP4 (PubMed:17549790). Plays a role in limb patterning and skeletal development by controlling the cellular response to BMP4 (By similarity). Modulates the effects of growth factors BMP2, BMP7 and FGF7 on renal branching morphogenesis (By similarity). Required for coronary vascular development (By similarity). Plays a role in regulating cell movements during gastrulation (By similarity).

Alternative names

Glypican-3, GTR2-2, Intestinal protein OCI-5, MXR7, OCI5, GPC3

Recommended products

Rabbit Recombinant Monoclonal Glypican 3 antibody. Suitable for Flow Cyt, WB, IHC-P, ICC/IF and reacts with Human samples. Cited in 7 publications.

Key facts

Isotype

IgG

Form

Liquid

Clonality

Monoclonal

Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number

SP86

Purification technique

Affinity purification Protein A

Concentration
Loading...

Storage

Shipped at conditions

Blue Ice

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

This product is FOR RESEARCH USE ONLY. For commercial use, please contact partnerships@abcam.com.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.

Activity summary

Glypican 3 also known as GPC3 is a cell surface heparan sulfate proteoglycan with a core protein mass of approximately 70 kDa. This target is anchored to the external cell membrane through a glycosylphosphatidylinositol (GPI) anchor. Glypican 3 is expressed mainly in tissues such as the liver and kidneys and plays a role in modulating cell growth and development. In research studies it is often studied in various species including in the mouse and cynomolgus monkey models where it's referred to as mouse glypican 3 and cynomolgus glypican 3 respectively.

Biological function summary

Glypican 3 is involved in the modulation of signaling pathways that control cell proliferation and differentiation. It does not function as an isolated element; it has a role as part of a complex network that interacts with growth factors morphogens and other proteoglycans. Glypican 3 assists in the regulation of important biological events by influencing the accessibility and activity of signaling molecules on the cell surface. Its heparan sulfate chains interact with multiple proteins modifying their function and availability.

Pathways

Glypican 3 plays a significant part in the Wnt and Hedgehog signaling pathways. In the Wnt pathway it regulates the distribution and gradient formation of Wnt proteins which are essential for proper embryonic development. In the Hedgehog pathway glypican 3 modulates the distribution and activity of Hedgehog proteins important for tissue patterning and organogenesis. Other proteins closely related to glypican 3 in these pathways include those from the frizzled family in the Wnt pathway and Patched proteins in the Hedgehog pathway.

Associated diseases and disorders

Glypican 3 has a strong connection to hepatocellular carcinoma (HCC) and Simpson-Golabi-Behmel syndrome (SGBS). In HCC increased expression of glypican 3 is often observed which associates it with tumor growth and proliferation. It functions alongside other oncogenic factors like alpha-fetoprotein (AFP) which is another marker for liver cancer. In SGBS mutations in the GPC3 gene result in defects in cellular signaling pathways leading to developmental abnormalities. This syndrome highlights the impact of glypican 3 on growth regulation and its interactions with insulin-like growth factors (IGFs).

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

9 product images

  • Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363)

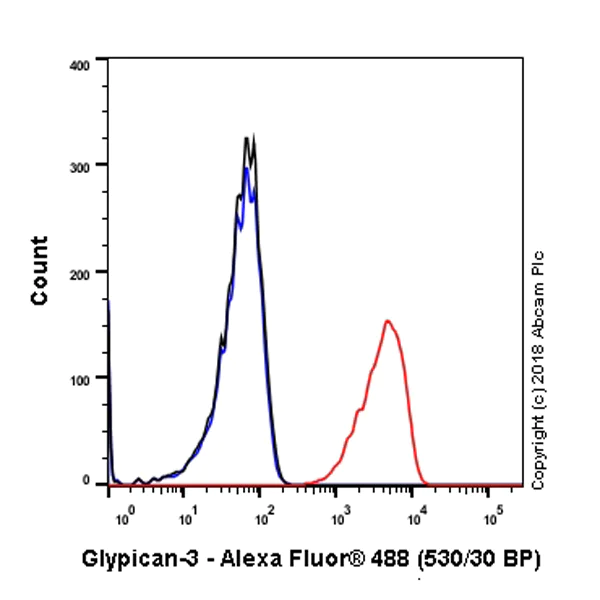

    Flow cytometry analysis of HepG2 (human hepatocellular carcinoma) labeling Glypican 3 with purified ab95363 at 1/80 dilution (5.825 μg/ml) (red). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as a secondary antibody. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black). Unlableled control -Unlabelled cells (blue).

  • Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363)

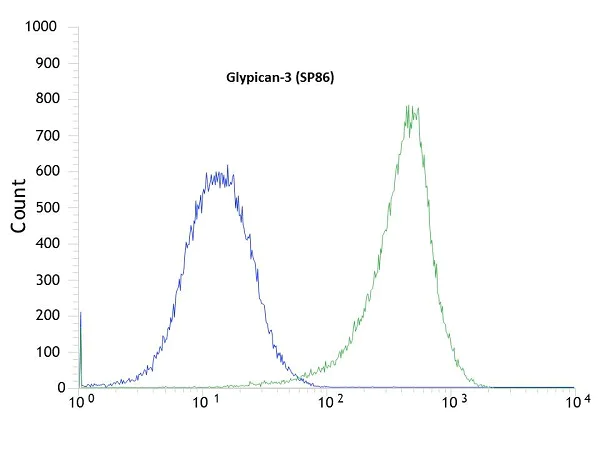

    Flow cytometric analysis of rabbit anti-Glypican 3 (SP86) antibody ab98363 (1/100) in HEPG2 cellls (green) compared to negative control of rabbit IgG (blue).

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363)

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human hepatocellular carcinoma tissue sections labeling Glypican 3 with ab95363 at 1:100 dilution (4.66 ?g/ml). Heat mediated antigen retrieval with sodium citrate buffer (pH 6.0, epitope retrieval solution 1) for 10mins. Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) was used as the secondary antibody. Hematoxylin was used as a counterstain. Positive staining on human hepatocellular carcinoma, performed on a Leica Biosystems BONDTM RX instrument.
    The section was incubated with ab95363 for 30 mins at room temperature.

  • Immunocytochemistry/ Immunofluorescence - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Glypican 3 antibody [SP86] (ab95363)

    Immunocytochemistry/ Immunofluorescence analysis of HepG2 (human hepatocellular carcinoma epithelial cell) cells labeling Glypican 3 with purified ab95363 at 1/200 (2.3 μg/ml). Cells were fixed in 100% Methanol and permeabilized with None. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) 1/200 (2.5 μg/ml). Goat anti rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at 1/1000 (2 μg/ml) dilution. DAPI was used as nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363)

    Immunohistochemical staining of human liver hepatocellular carcinoma with ab95363.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Glypican 3 antibody [SP86] (ab95363)

    ab95363, at 1/100 dilution, staining Glypican 3 in formalin-fixed, paraffin-embedded Human liver cancer tissue by Immunohistochemistry.

  • Immunocytochemistry/ Immunofluorescence - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Immunocytochemistry/ Immunofluorescence - Anti-Glypican 3 antibody [SP86] (ab95363)

    ICC/IF image of ab95363 stained HepG2 cells. The cells were 4% formaldehyde fixed (10 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody ab95363 at 5μg/ml overnight at +4°C. The secondary antibody (green) was DyLight® 488 goat anti- rabbit (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) IgG (H+L) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43μM.

  • Western blot - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Western blot - Anti-Glypican 3 antibody [SP86] (ab95363)

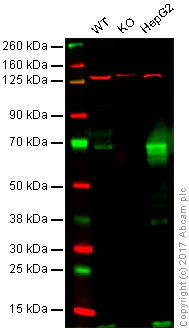

    Lane 1: Wild-type HAP1 whole cell lysate (20 μg)
    Lane 2: GPC3 knockout HAP1 whole cell lysate (20 μg)
    Lane 3: HepG2 whole cell lysate (20 μg)

    Lanes 1 - 3: Merged signal (red and green). Green - ab95363 observed at 70 kDa. Red - loading control, Anti-Vinculin antibody [VIN-54] ab130007, observed at 125kDa.


    ab95363 was shown to specifically react with Glypican 3 in wild-type HAP1 cells as signal was lost in GPC3 knockout cells. Wild-type and GPC3 knockout samples were subjected to SDS-PAGE. ab95363 and Anti-Vinculin antibody [VIN-54] ab130007 (Mouse anti-vinculin loading control) were incubated overnight at 4°C at 1/1000 and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/10000 dilution for 1 hour at room temperature before imaging.

    All lanes: Western blot - Anti-Glypican 3 antibody [SP86] (ab95363)

    Predicted band size: 66 kDa

  • Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363), expandable thumbnail

    Flow Cytometry - Anti-Glypican 3 antibody [SP86] (ab95363)

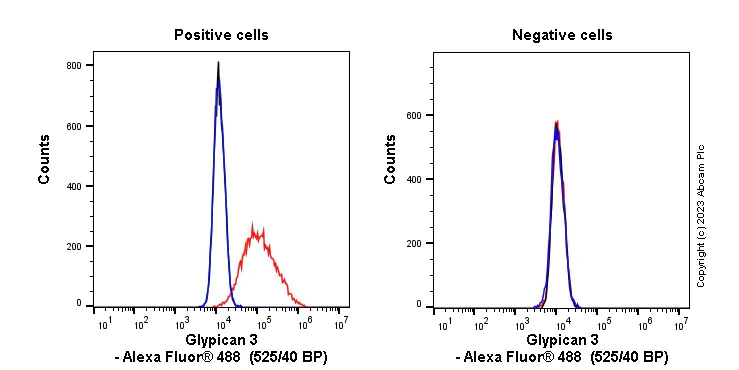

    Flow cytometry overlay histogram showing left wild-type Hap1 positive cells and right negative GPC3 knockout Hap1 stained with ab95363 (red line). The cells were incubated in 1x PBS containing 10% normal goat serum to block non-specific protein-protein interaction followed by the antibody (ab95363) (1x 106 in 100μl at 5.0 μg/ml (1/396)) for 30min on ice.

    The secondary antibody Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed was incubated at 1/4000 for 30min on ice

    Isotype control antibody Recombinant Rabbit IgG, monoclonal [EPR25A] - Isotype Control (black line) was used at the same concentration and conditions as the primary antibody. Unlabelled sample was also used as a control (blue line).

    Acquisition of >5000 events were collected using a 50 mW Blue laser (488nm) and 525/40 bandpass filter.
