Anti-GM130 antibody [EP892Y] - BSA and Azide free

9 product images

•

  Immunoprecipitation - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

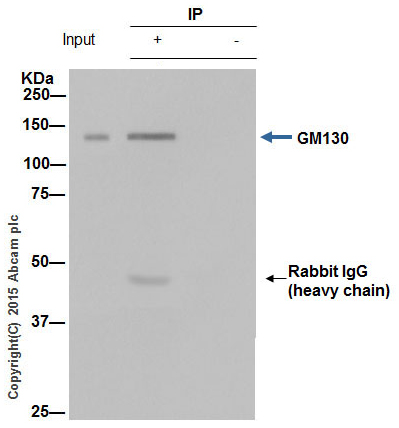

  Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 (purified) at 1/20 immunoprecipitating GM130 in HeLa whole cell lysate.


  Lane 1 (input): HeLa whole cell lysate (10μg)

  Lane 2 (+): Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 + HeLa whole cell lysate (10μg).

  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 in HeLa whole cell lysate.

  For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366), was used for detection at 1/1500 dilution.

  Blocking buffer and concentration: 5% NFDM/TBST.

  Diluting buffer and concentration: 5% NFDM /TBST.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

  Lane 1: Immunoprecipitation - Anti-GM130 antibody [EP892Y] - cis-Golgi Marker (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649)

  Lanes 2 - 3: Immunoprecipitation - Anti-GM130 antibody [EP892Y] - cis-Golgi Marker (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649) at 1/20 dilution

  Lane 1: HeLa whole cell lysate at 10 µg

  Lane 2: Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 + HeLa whole cell lysate at 10 µg

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 in HeLa whole cell lysate

  Predicted band size: 113 kDa

  Observed band size: 130 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cervix carcinoma tissue labelling GM130 with purified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 at 1/100. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG (H+L) was used as the secondary antibody (1/500). Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  Immunocytochemistry/ Immunofluorescence - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling GM130 with purified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 at 1/50. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain. Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin (1/1000) and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500) were also used.

  Control 1: primary antibody (1/50) and secondary antibody, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

  Control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (1/1000) and secondary antibody, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  Flow Cytometry (Intracellular) - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

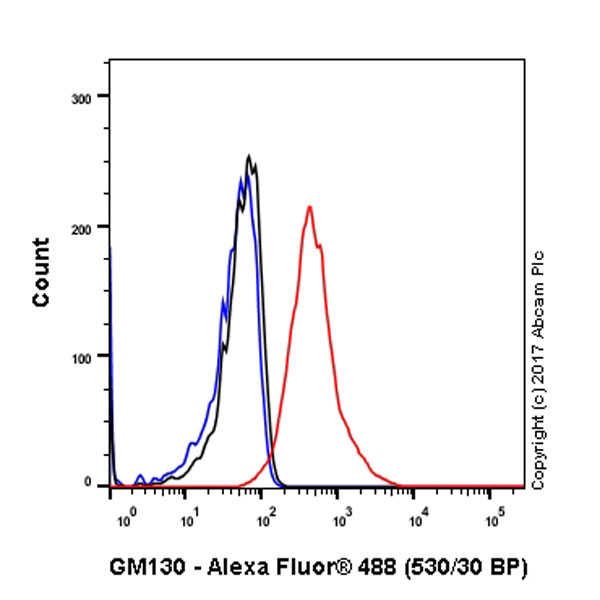

  Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling GM130 (red) with Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 at a 1/20 dilution. Cells were fixed with 4% paraformaldehyde and permeabilized with 90% methanol. A goat anti-rabbit IgG (Alexa Fluor^® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) was used as the secondary antibody at a 1/2000 dilution. Black - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730). Blue (unlabeled control) - Cells without incubation with the primary and secondary antibodies.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  This image is courtesy of a customer review submitted by Aaron Halpen.

  Immunocytochemistry/ Immunofluorescence - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Unpurified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 staining GM130 (magenta) in monkey kidney cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde and blocked with 3% BSA + 0.5% Triton X-100 for 45 minutes at 25°C. Samples were incubated with primary antibody (1/1500 in 3% BSA + 0.5% Triton X-100) for 45 minutes at 25°C. An Alexa Fluor^® 647-conjugated donkey anti-rabbit IgG polyclonal (2 µg/ml) was used as the secondary antibody. Nuclei stained with Picogreen.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human liver tissue labelling GM130 with unpurified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 at a dilution of 1/500.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  This image is courtesy of a customer review submitted by Vladimir Milenkovic.

  Immunocytochemistry/ Immunofluorescence - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Unpurified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 staining GM130 in human ARPE-19 cells by ICC/IF (immunocytochemistry/immunofluorescence). Cells were formaldehyde fixed, permeabilized by 0.5% TX-100 and blocked with 5% serum for 20 minutes at 25°C. The sample was incubated with the primary antibody (1/500 in 1% goat serum, 0.1%TX100, 1 x PBS) for 16 hours at 4°C. An Alexa Fluor^® 488-conjugated Goat anti-rabbit polyclonal (1/500) was used as the secondary.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  This image is courtesy of a customer review submitted by JL Balligand.

  Immunocytochemistry/ Immunofluorescence - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  Unpurified Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649 staining GM130 in Bovine brain microvascular endothelial cells by ICC/IF (Immunocytochemistry/immunofluorescence). Cells were fixed with paraformaldehyde, permeabilized with 0.1% saponin and blocked with 5% BSA for 90 minutes at 37°C. Samples were incubated with primary antibody (1/100 in 0.1% saponin + 1% BSA ) for 18 hours at 4°C. An undiluted Alexa Fluor^® 568-conjugated Goat anti-rabbit IgG polyclonal was used as the secondary antibody.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).

•

  Immunocytochemistry/ Immunofluorescence - Anti-GM130 antibody [EP892Y] - BSA and Azide free (ab215966)

  ICC/IF image of unpurified Anti-Histone H3 (acetyl K14) antibody [EP964Y] - ChIP Grade ab52946 stained HeLa cells. The cells were 4% PFA fixed (10 min) and then incubated in 1% BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (unpurified Anti-Histone H3 (acetyl K14) antibody [EP964Y] - ChIP Grade ab52946, 1µg/ml) overnight at +4°C. The secondary antibody (green) was DyLight^® 488 goat anti-rabbit IgG - H&L, pre-adsorbed (ab96899) used at a 1/250 dilution for 1h. Alexa Fluor^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-GM130 antibody [EP892Y] - cis-Golgi Marker ab52649).
