AB226177

Anti-GRAF antibody

Name: Anti-GRAF antibody (ab226177) | Abcam
Brand: Abcam Limited
SKU: AB226177
Price: 525 USD
Availability: InStock

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Polyclonal GRAF antibody. Suitable for IP, WB and reacts with Human samples. Cited in 1 publication. Immunogen corresponding to Synthetic Peptide within Human ARHGAP26 aa 600-700.

View Alternative Names

GRAF, KIAA0621, OPHN1L, ARHGAP26, Rho GTPase-activating protein 26, GTPase regulator associated with focal adhesion kinase, Oligophrenin-1-like protein, Rho-type GTPase-activating protein 26, GRAF1

2 Images

Supplier Data

Immunoprecipitation - Anti-GRAF antibody (AB226177)

GRAF was immunoprecipitated from Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate (1 mg for IP, 20% of IP loaded) with ab226177 at 6 μg per reaction. Western blot was performed from the immunoprecipitate using ab226177 at 0.4 μg/ml.

Lane 1 : ab226177 IP in Jurkat whole cell lysate.

Lane 2 : Control IgG IP in Jurkat whole cell lysate.

Detection : Chemiluminescence with exposure time of 3 minutes.

All lanes:

Immunoprecipitation - Anti-GRAF antibody (ab226177)

Predicted band size: 92 kDa

false

Supplier Data

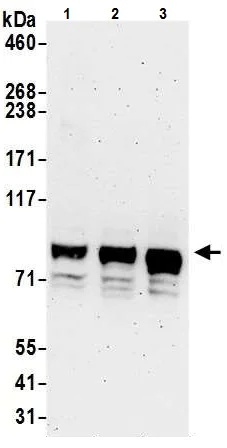

Western blot - Anti-GRAF antibody (AB226177)

All lanes:

Western blot - Anti-GRAF antibody (ab226177) at 0.1 µg/mL

Lane 1:

HeLa (human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 50 µg

Lane 2:

HEK-293T (human epithelial cell line from embryonic kidney transformed with large T antigen) whole cell lysate at 50 µg

Lane 3:

Jurkat (human T cell leukemia cell line from peripheral blood) whole cell lysate at 50 µg

Predicted band size: 92 kDa

true

Exposure time: 30s

Key facts

Host species

Rabbit

Clonality

Polyclonal

Isotype

IgG

Carrier free

Reacts with

Human

Applications

IP, WB

applications

Immunogen

Synthetic Peptide within Human ARHGAP26 aa 600-700. The exact immunogen used to generate this antibody is proprietary information.

Q9UNA1

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "2-10 µg/mg of lysate", "IP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/2000 - 1/10000", "WB-species-notes": "<p></p>" }, "Chimpanzee": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Cynomolgus monkey": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Gorilla": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Orangutan": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rhesus monkey": { "IP-species-checked": "predicted", "IP-species-dilution-info": "", "IP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }

style

left-column

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Immunogen

Purification notes

ab226177 was affinity purified using an epitope specific to GRAF immobilized on solid support.

Storage buffer

pH: 7 - 8 Preservative: 0.09% Sodium azide Constituents: Tris citrate/phosphate

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

GRAF also known as GAP for Rho-associated domain containing protein F has a molecular mass of approximately 110 kDa. This protein functions mechanically as a GTPase-activating protein (GAP) that regulates Rho family GTPases which are essential in controlling cell shape and movement. GRAF expression is notable in several tissues including the colon brain and heart highlighting its involvement in various physiological processes.

Biological function summary

GRAF plays an important role in cytoskeletal dynamics impacting cell adhesion and motility. GRAF is part of a larger signaling complex that influences cellular morphology and signal transduction pathways. This interaction underpins its engagement in cellular activities associated with structural changes and response to external stimuli. Through its activity GRAF regulates the balance of actin polymerization and depolymerization essential for maintaining cellular integrity.

Pathways

GRAF's role intersects with the Rho signaling pathway which is critical for cell mobility and organization. This pathway contains proteins like RhoA and Rac1 where GRAF exerts its GTPase-activating function. GRAF also integrates into the integrin signaling cascade serving as a pivotal link between extracellular matrix interactions and intracellular cytoskeletal arrangements. These pathways establish GRAF's importance in coordinating cellular responses to environmental changes.

GRAF's involvement has been observed in certain cancers particularly colorectal cancer and cardiovascular diseases. In colorectal cancer altered GRAF expression associates with tumor progression and metastasis partly through its interaction with dysregulated RhoA signaling. In cardiovascular conditions changes in GRAF activity influence cardiac myocyte function and may contribute to heart failure. Understanding these connections helps in appreciating GRAF's potential as a therapeutic target in these diseases.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

GTPase-activating protein for RHOA and CDC42. Facilitates mitochondrial quality control by promoting Parkin-mediated recruitment of autophagosomes to damaged mitochondria (PubMed : 38081847). Negatively regulates the growth of human parainfluenza virus type 2 by inhibiting hPIV-2-mediated RHOA activation via interaction with two of its viral proteins P and V (PubMed : 27512058).. Isoform 2. Associates with MICAL1 on the endosomal membrane to promote Rab8-Rab10-dependent tubule extension. After dissociation of MICAL1, recruits WDR44 which connects the endoplasmic reticulum (ER) with the endosomal tubule, thereby participating in the export of a subset of neosynthesized proteins.

See full target information ARHGAP26

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Cell death discovery 7:351 PubMed34772908

2021

DACH1 inhibits breast cancer cell invasion and metastasis by down-regulating the transcription of matrix metalloproteinase 9.

Applications

Unspecified application

Species

Unspecified reactive species

Sattout Aman,Yanan Li,Yunmeng Cheng,Yuxi Yang,Linlin Lv,Bowen Li,Kangkai Xia,Shujing Li,Huijian Wu

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.

For licensing inquiries, please contact partnerships@abcam.com
