Rabbit Recombinant Monoclonal GRIM19 antibody. Carrier free. Suitable for WB, IHC-P and reacts with Human samples.
Images
![Western blot - Anti-GRIM19 antibody [EPR4471(2)] - BSA and Azide free (AB247748), expandable thumbnail](https://content.abcam.com/products/images/grim19-antibody-epr44712-bsa-and-azide-free-ab247748--western-blot-img1752.jpg/_jcr_content/renditions/webp-475.webp "Western blot - Anti-GRIM19 antibody [EPR4471(2)] - BSA and Azide free (AB247748)")
Key facts
- Isotype
- IgG
- Host species
- Rabbit
- Storage buffer
pH: 7.2 - 7.4
Constituents: PBS- Form
- Liquid
- Clonality
- Monoclonal
Immunogen
- The exact immunogen used to generate this antibody is proprietary information.
Reactivity data
Select an application| IP | Flow Cyt | WB | IHC-P | |
|---|---|---|---|---|
| Human | Not recommended | Not recommended | Tested | Tested |
IP
Not recommendedNot recommended
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info - | Notes - |
Flow Cyt
Not recommendedNot recommended
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info - | Notes - |
WB
TestedTested
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info - | Notes - |
IHC-P
TestedTested
| Species | Dilution info | Notes |
|---|---|---|
Species Human | Dilution info - | Notes Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol. |
Target data
Function
Accessory subunit of the mitochondrial membrane respiratory chain NADH dehydrogenase (Complex I), that is believed not to be involved in catalysis (PubMed:27626371). Complex I functions in the transfer of electrons from NADH to the respiratory chain. The immediate electron acceptor for the enzyme is believed to be ubiquinone (PubMed:27626371). Involved in the interferon/all-trans-retinoic acid (IFN/RA) induced cell death. This apoptotic activity is inhibited by interaction with viral IRF1. Prevents the transactivation of STAT3 target genes. May play a role in CARD15-mediated innate mucosal responses and serve to regulate intestinal epithelial cell responses to microbes (PubMed:15753091).
Alternative names
GRIM19, CDA016, CGI-39, NDUFA13, NADH dehydrogenase [ubiquinone] 1 alpha subcomplex subunit 13, Cell death regulatory protein GRIM-19, Complex I-B16.6, Gene associated with retinoic and interferon-induced mortality 19 protein, NADH-ubiquinone oxidoreductase B16.6 subunit, CI-B16.6, GRIM-19, Gene associated with retinoic and IFN-induced mortality 19 protein
Recommended products
Rabbit Recombinant Monoclonal GRIM19 antibody. Carrier free. Suitable for WB, IHC-P and reacts with Human samples.
Key facts
- Isotype
- IgG
- Host species
- Rabbit
- Storage buffer
pH: 7.2 - 7.4
Constituents: PBS- Form
- Liquid
- Clonality
- Monoclonal
- Immunogen
- The exact immunogen used to generate this antibody is proprietary information.
- Carrier free
- Yes
- Clone number
- EPR4471(2)
- Purification technique
- Affinity purification Protein A
- Concentration
Storage
- Shipped at conditions
- Blue Ice
- Appropriate short-term storage conditions
- +4°C
- Appropriate long-term storage conditions
- +4°C
- Storage information
- Do Not Freeze
Notes
ab247748 is the carrier-free version of Anti-GRIM19 antibody [EPR4471(2)] ab109017.
Mouse, Rat: We have preliminary internal testing data to indicate this antibody may not react with these species. Please contact us for more information.
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Our carrier-free antibodies are typically supplied in a PBS-only formulation, purified and free of BSA, sodium azide and glycerol. The carrier-free buffer and high concentration allow for increased conjugation efficiency.
This conjugation-ready format is designed for use with fluorochromes, metal isotopes, oligonucleotides, and enzymes, which makes them ideal for antibody labelling, functional and cell-based assays, flow-based assays (e.g. mass cytometry) and Multiplex Imaging applications.
Use our conjugation kits for antibody conjugates that are ready-to-use in as little as 20 minutes with 1 minute hands-on-time and 100% antibody recovery: available for fluorescent dyes, HRP, biotin and gold.
This product is compatible with the Maxpar® Antibody Labeling Kit from Fluidigm, without the need for antibody preparation. Maxpar® is a trademark of Fluidigm Canada Inc.
Supplementary info
- This supplementary information is collated from multiple sources and compiled automatically.
- Activity summary
GRIM19 also known as NDUFA13 is a small protein with a molecular mass of approximately 16 kDa. It expresses mainly in mitochondria where it forms an integral component of the mitochondrial respiratory chain complex I. GRIM19 plays an important role in the functioning of complex I by facilitating the assembly and stabilization of the complex enabling efficient electron transport and ATP synthesis.
- Biological function summary
GRIM19 interacts with several complexes and proteins within the mitochondrial inner membrane. As a part of complex I also known as NADH:ubiquinone oxidoreductase it contributes to the initial step of mitochondrial oxidative phosphorylation. GRIM19 also participates in the regulation of apoptosis and its expression is influenced during cellular stress situations highlighting its significance in cellular survival and energy production.
- Pathways
GRIM19 integrates closely with mitochondrial apoptosis and energy metabolism pathways. Its interactions within oxidative phosphorylation place it in concert with both the electron transport chain and the apoptosis regulatory network. GRIM19 shares associations with related proteins such as cytochrome c oxidase and other complex I subunits highlighting its essential contribution to these important biological processes.
- Associated diseases and disorders
GRIM19 demonstrates links to various pathologies including cancer and mitochondrial diseases. Alterations in GRIM19 expression or function have been implicated in the progression of certain cancers such as colorectal and thyroid cancer where GRIM19's usual regulatory role in apoptosis can be disrupted. Additionally its involvement in mitochondrial disease connects to proteins like COX-A1 emphasizing the importance of maintaining functional complexes for cellular health.
Product promise
Tested
We have tested this species and application combination and it works. It is covered by our product promise.
Expected
We have not tested this specific species and application combination in-house, but expect it will work. It is covered by our product promise.
Predicted
This species and application combination has not been tested, but we predict it will work based on strong homology. However, this combination is not covered by our product promise.
Not recommended
We do not recommend this combination. It is not covered by our product promise.
We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.
In the unlikely event of one of our products not working as expected, you are covered by our product promise.
Full details and terms and conditions can be found here:
Terms & Conditions.
1 product image
![Western blot - Anti-GRIM19 antibody [EPR4471(2)] - BSA and Azide free (ab247748), expandable thumbnail](https://content.abcam.com/products/images/grim19-antibody-epr44712-bsa-and-azide-free-ab247748--western-blot-img1752.jpg "Western blot - Anti-GRIM19 antibody [EPR4471(2)] - BSA and Azide free (ab247748)")

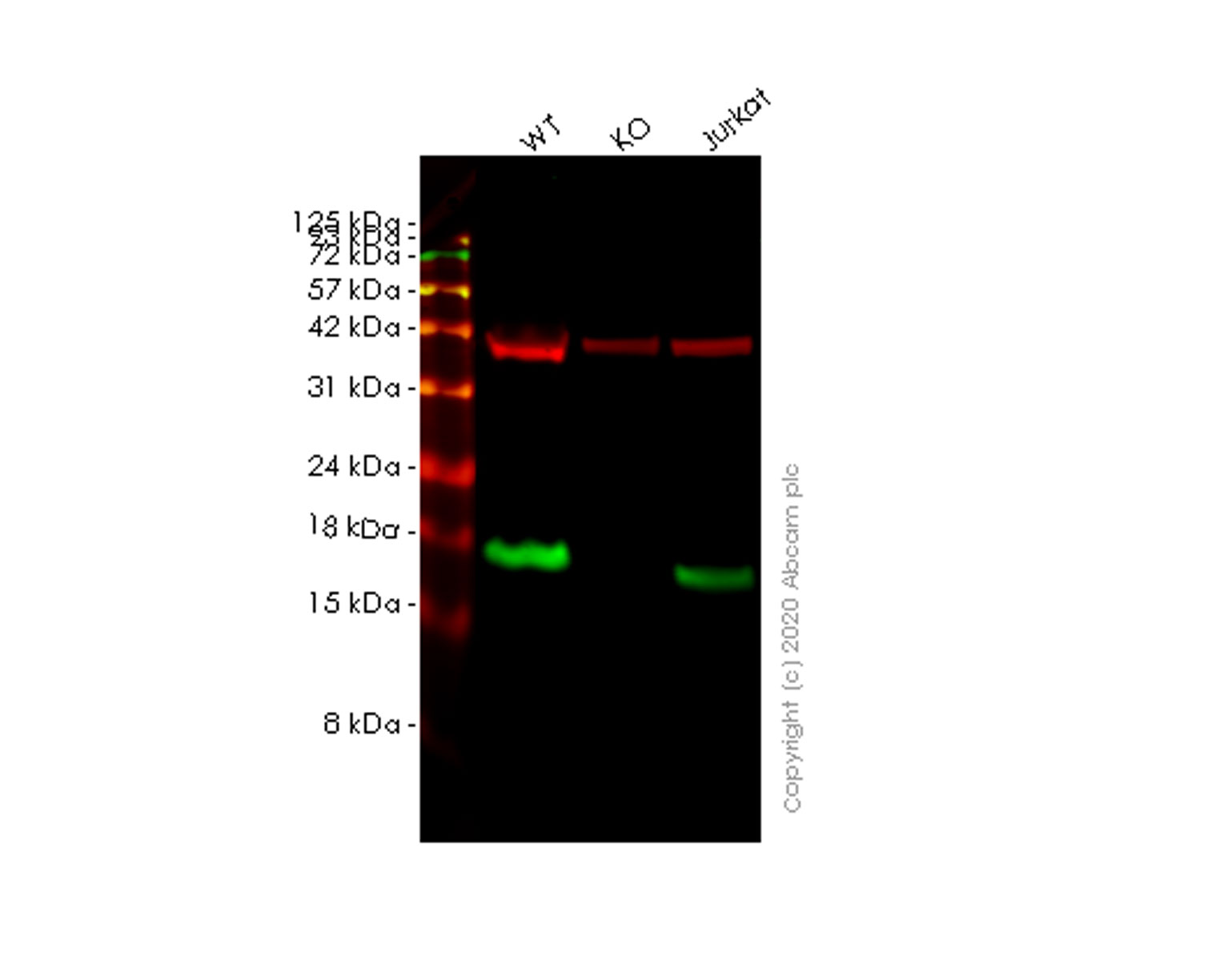

Western blot - Anti-GRIM19 antibody [EPR4471(2)] - BSA and Azide free (ab247748)
This data was developed using the same antibody clone in a different buffer formulation (Anti-GRIM19 antibody [EPR4471(2)] ab109017).
Lanes 1-3: Merged signal (red and green). Green - Anti-GRIM19 antibody [EPR4471(2)] ab109017 observed at 17 kDa. Red - loading control Anti-GAPDH antibody [6C5] - Loading Control ab8245 observed at 36 kDa.
Anti-GRIM19 antibody [EPR4471(2)] ab109017 Anti-GRIM19 antibody [EPR4471(2)] was shown to specifically react with GRIM19 in wild-type HeLa cells. Loss of signal was observed when knockout cell line Human NDUFA13 (GRIM19) knockout HeLa cell line ab265863 (knockout cell lysate Human NDUFA13 (GRIM19) knockout HeLa cell lysate ab257136) was used. Wild-type and GRIM19 knockout samples were subjected to SDS-PAGE. Anti-GRIM19 antibody [EPR4471(2)] ab109017 and Anti-GAPDH antibody [6C5] - Loading Control (Anti-GAPDH antibody [6C5] - Loading Control ab8245) were incubated overnight at 4°C at 1 in 1000 dilution and 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed (Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes: Western blot - Anti-GRIM19 antibody [EPR4471(2)] (Anti-GRIM19 antibody [EPR4471(2)] ab109017) at 1/1000 dilution
Lane 1: Wild-type HeLa cell lysate at 20 µg
Lane 2: NDUFA13 knockout HeLa cell lysate at 20 µg
Lane 2: Western blot - Human NDUFA13 (GRIM19) knockout HeLa cell line (Human NDUFA13 (GRIM19) knockout HeLa cell line ab265863)
Lane 3: Jurkat cell lysate at 20 µg
SecondaryAll lanes: Western blot - Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed (Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773) at 1/10000 dilution
Predicted band size: 17 kDa
Observed band size: 17 kDa
