Anti-GRP78 BiP antibody [EPR4041(2)] - BSA and Azide free

• Flow Cyt (Intra)

Unknown

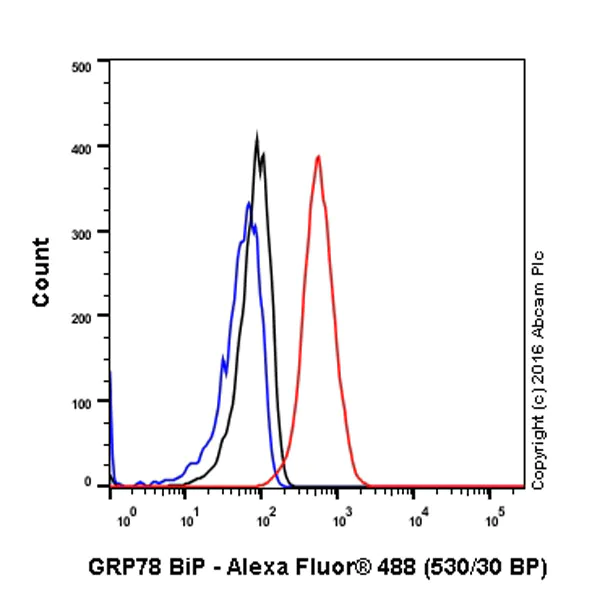

Flow Cytometry (Intracellular) - Anti-GRP78 BiP antibody [EPR4041(2)] - BSA and Azide free (AB236050)

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling GRP78 BiP with purified ab108615 at 1/200 dilution (10ug/mL) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^®488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) were used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab108615).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GRP78 BiP antibody [EPR4041(2)] - BSA and Azide free (AB236050)

Unpurified ab108615 at 1/50 dilution staining GRP78 BiP in Human breast carcinoma tissue by Immunohistochemistry Formalin-fixed, Paraffin-embedded tissue.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab108615).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GRP78 BiP antibody [EPR4041(2)] - BSA and Azide free (AB236050)

Immunohistochemical staining of paraffin embedded human hepatocellular carcinoma with purified ab108615 at a working dilution of 1/500. The secondary antibody used is HRP goat anti-rabbit IgG H&L (ab97051) at 1/500. The sample is counter-stained with hematoxylin. Antigen retrieval was perfomed using Tris-EDTA buffer, pH 9.0. PBS was used instead of the primary antibody as the negative control, and is shown in the inset.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab108615).

• WB

Supplier Data

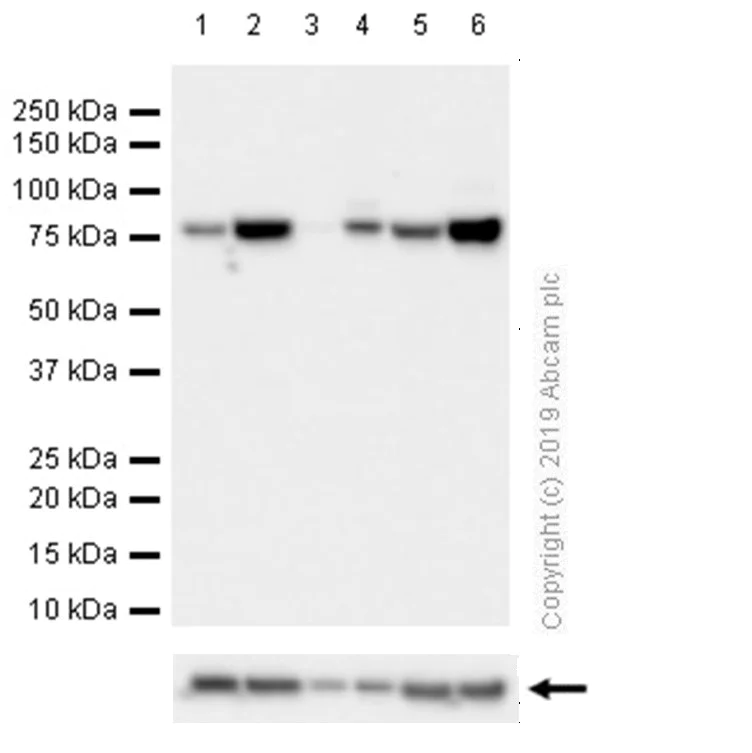

Western blot - Anti-GRP78 BiP antibody [EPR4041(2)] - BSA and Azide free (AB236050)

Blocking and diluting buffer and concentration : 5% NFDM/TBST

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab108615).

All lanes:

Western blot - Anti-GRP78 BiP antibody [EPR4041(2)] (<a href='/en-us/products/primary-antibodies/grp78-bip-antibody-epr40412-ab108615'>ab108615</a>) at 1/1000 dilution

Lane 1:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysates at 20 µg

Lane 2:

HeLa treated with 2.5 µg/ml tunicamycin for 24h whole cell lysates at 20 µg

Lane 3:

HUVEC (Human umbilical vein endothelial cell) whole cell lysates at 20 µg

Lane 4:

HUVEC treated with 10 µg/ml tunicamycin for 48h whole cell lysates at 20 µg

Lane 5:

Raw 264.7 (Mouse Abelson murine leukemia virus-induced tumor macrophage) whole cell lysates at 20 µg

Lane 6:

Raw 264.7 treated with 5 µg/ml tunicamycin for 18h whole cell lysates at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 72 kDa

Observed band size: 78 kDa

false

Exposure time: 3s
