Anti-GSK3 beta antibody [Y174] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

IHC image of GSK3 staining in human breast adenocarcinoma formalin fixed paraffin embedded tissue section, performed on a Leica Bond system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6, epitope retrieval solution 1) for 20 minutes. The section was then incubated with ab32391, 1/200 diution, for 15 minutes at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

Immunohistochemical analysis of paraffin-embedded human breast tissue labelled with untreated ab75814 (phospho) (top-left) at a dilution of 1/1000, alkaline phosphatase treated ab75814 (phospho) (top-right) at a dilution of 1/1000, untreated ab32391 (bottom-left) at a dilution of 1/1000 and alkaline phophatase treated ab32391 (bottom-right) at a dilution of 1/1000. ab97051 was used as secondary antibody at a dilution of 1/500 and counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• Flow Cyt (Intra)

Unknown

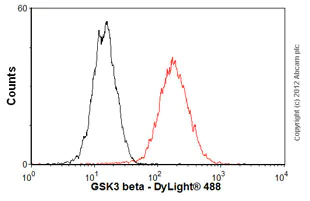

Flow Cytometry (Intracellular) - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

Overlay histogram showing HeLa cells stained with ab32391 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32391, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was DyLight® 488 goat anti-rabbit IgG (H+L) (ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

Immunohistochemical analysis of paraffin-embedded human breast cancer tissue labelled with untreated ab75814 (phospho) (top-left) at a dilution of 1/1000, alkaline phosphatase treated ab75814 (phospho) (top-right) at a dilution of 1/1000, untreated ab32391 (bottom-left) at a dilution of 1/1000 and alkaline phophatase treated ab32391 (bottom-right) at a dilution of 1/1000. ab97051 was used as secondary antibody at a dilution of 1/500 and counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling GSK3 beta with purified ab32391 at 1/500. Cells were fixed with 4% Paraformaldehyde and permeabilised with 0.1% tritonX-100. An Alexa Fluor® 488-conjugated goat anti-rabbit IgG (ab150077) at 1/1000 dilution was used as the secondary antibody. Cells were co-stained with ab7291, a mouse anti-tubulin antibody (1/1000) using ab150120, an Alexa Fluor® 594-conjugated goat anti-mouse IgG (1/1000) as the secondary antibody. Nuclei were counterstained with DAPI (blue).

For negative control 1, rabbit primary antibody was used followed by anti-mouse secondary antibody (ab150120).
For negative control 2, mouse primary antibody (ab7291) and anti-rabbit secondary antibody (ab150077) were used.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

ICC/IF image of ab32391 stained DU145 cells. The cells were 4% formaldehyde fixed (10 minutes) and then incubated in 1 %BSA / 10 % normal goat serum / 0.3 M glycine in 0.1 % PBS-Tween for 1 hour to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody ab32391 at 1/200 dilution overnight at +4°C. The secondary antibody (green) was DyLight^® 488 goat anti- rabbit (ab96899) IgG (H+L) used at a 1/250 dilution for 1 hour. Alexa Fluor^® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1 hour. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43 µM.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• WB

Lab

Western blot - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

ab196911 was shown to recognize GSK3 beta in wild-type HAP1 cells as signal was lost at the expected MW in GSK3B knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and GSK3B knockout samples were subjected to SDS-PAGE. ab196911 and ab184095 (Mouse monoclonal [mAbcam 9484] to GAPDH - Loading Control (Alexa Fluor^® 680) loading control) were incubated overnight at 4°C at 1/5000 dilution and 1/1000 dilution respectively. The loading control was imaged using the Licor Odyssey CLx prior to blots being developed with ECL technique.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab196911).

All lanes:

Western blot - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (ab183177) at 1/5000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

GSK3B knockout HAP1 whole cell lysate at 20 µg

Predicted band size: 46 kDa

false

• ELISA

Lab

ELISA - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

ELISA of GSK3 beta (phospho S9) peptide and GSK3 beta non-phospho peptide at 10 ng/ml. Detected with ab32391 at 0~1000 ng/ml. Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/2500 was used as a secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).

• ELISA

Lab

ELISA - Anti-GSK3 beta antibody [Y174] - BSA and Azide free (AB183177)

ELISA of GSK3 beta (phospho S9) peptide and GSK3 beta non-phospho peptide at 1000 ng/ml. Detected with ab32391 at 0~1000 ng/ml. Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/2500 was used as a secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32391).
