Anti-HA tag antibody - ChIP Grade

9 product images

•

  This image is courtesy of an anonymous customer review

  Immunoprecipitation - Anti-HA tag antibody - ChIP Grade (ab9110)

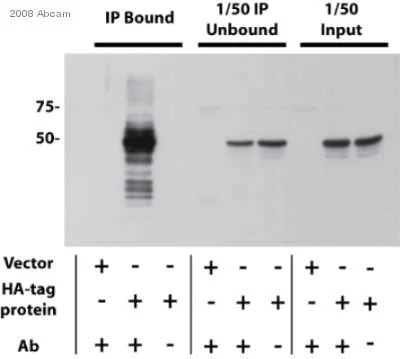

  ab9110 was diluted to 4 μg/mg lysate and incubated with a nuclear lysate of HEK293T cells transiently expressing HA-tagged protein and a Protein A matrix for 2 hours a 23°C to achieve immunoprecipitation. 1000 μg of lysate was present in the input.

  A HRP-conjugated anti-rabbit HA monoclonal antibody diluted 1/1000 was used for the Western Blot step.

  All lanes: Immunoprecipitation - Anti-HA tag antibody - ChIP Grade (ab9110)

  Predicted band size: 64 kDa

•

  ChIP - Anti-HA tag antibody - ChIP Grade (ab9110)

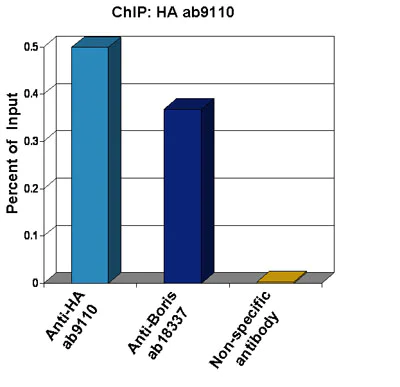

  Xenopus laevis oocytes were injected with mRNA for HA-tagged human BORIS. Chromatin was prepared according to the Abcam X-ChIP protocol. Oocytes were fixed with formaldehyde for 10min. The ChIP was performed with 25μg of chromatin, 20μl of Protein A/G sepharose beads, and 3μg of ab9110 (anti-HA, light blue) or, 3μg of ab18337 (anti-Boris, dark blue). A non-specific antibody was used as a control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach).

•

  This image is courtesy of a customer review submitted by Mr. Dan Stummer

  ChIP - Anti-HA tag antibody - ChIP Grade (ab9110)

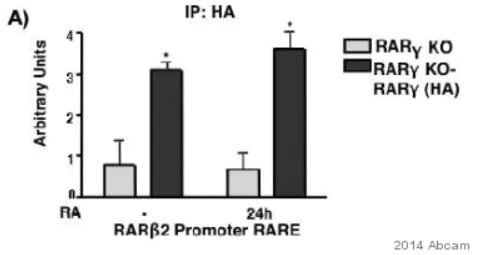

  Chromatin was prepared according to the X-ChIP protocol. Mouse embryonic stem whole cell lysate treated with disuccinimidyl glutarate (cross-linking agent). ChIP was performed using ab9110 at 1/200 dilution for 16 hours at 4°C in RIPA diluent. The bound DNA was quantitated by real-time PCR. Negative control: The parent cell line. Positive control: A cell line, which stably express an HA-tagged RARgamma protein.


•

  This image is courtesy of a customer review

  Immunocytochemistry/ Immunofluorescence - Anti-HA tag antibody - ChIP Grade (ab9110)

  ab9110 staining HA-tagged proteins in HeLa cells by ICC/IF (Immunocytochemistry/immunoflurescence). Cells were fixed with paraformaldehyde, permeabilized with 0.1% saponin and blocked with 3% serum for 30 minutes at 37°C. Samples were incubated with primary antibody (2 μg/ml) in 1x PBS for 1 hour at 37°C. An Alexa Fluor^® 488-conjugated Goat polyclonal to rabbit was used as secondary antibody.

•

  Western blot - Anti-HA tag antibody - ChIP Grade (ab9110)

  This image is courtesy of an Abreview

  All lanes: Western blot - Anti-HA tag antibody - ChIP Grade (ab9110) at 1/4000 dilution

  Lane 1: 15ug untransfected wcl lysate

  Lane 2: 293FT cells transfected with 15kDa HA tagged Vpr (an HIV1 accessory protein)

  Secondary

  All lanes: HRP conjugated Goat anti-Rabbit

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 64 kDa

  Exposure time: 5s

•

  Seitz, K. et al Send to PLoS One. 2014 Jan 29;9(1):e87132. doi: 10.1371/journal.pone.0087132. eCollection 2014 Reproduced under the Creative Commons license http://creativecommons.org/licenses/by/4.0/

  Immunocytochemistry/ Immunofluorescence - Anti-HA tag antibody - ChIP Grade (ab9110)

  Arrb2 depends on Gβγ to induce membrane translocation of PKCα

  Xenopus embryos were injected with 500 pg pkcα-gfp RNA and co-injected as indicated above the images. Animal Caps were prepared at stage 10 and immunostained as indicated. Nuclei were stained with Hoechst 33258 (blue). Images show representative results from at least two independent experiments with a minimum of six Animal Caps per experiment. Scale bars: 50 μm.

  The inhibitory effect of Arrb2 MO1 (E) on PKCα-GFP membrane translocation was rescued by (F) co-injection of HA-Gβ and HA-Gγ mRNA (anti-HA (red): F′, merge: F").

  HA was detected with ab9110.

  (After Figure 2 of Seitz et al)

•

  Immunocytochemistry/ Immunofluorescence - Anti-HA tag antibody - ChIP Grade (ab9110)

  This image was kindly supplied as part of the review submitted by Kasper Fugger. Immunofluorescence staining of U-2 cells expressing HA-tagged protein with ab9110.

•

  Immunocytochemistry/ Immunofluorescence - Anti-HA tag antibody - ChIP Grade (ab9110)

  ab 9110 at a 1/200 dilution staining the mouse olineu cell line (oligodendrocyte precursor cell) by immunocytochemistry. The antibody was incubated with the cells for 30 minutes and then detected using a Cy5 conjugated goat anti-rabbit antibody.

  This image is courtesy of an Abreview submitted by Katarina Trajkovic on 15 March 2006

•

  Immunocytochemistry/ Immunofluorescence - Anti-HA tag antibody - ChIP Grade (ab9110)

  Immunofluorescent analysis of 4% paraformaldehyde (PFA) fixed, permeablised with 0.1% Triton X-100 CHO cells transfected with GFP-HA constructs (CHO-GFP-HA) labelling HA tag with ab9110 at 5μg/ml, followed by Donkey Anti-Rabbit IgG(H&L), Alexa 594 conjugated antibody at 2.5μg/ml (Red). Nucleus was counterstained with DAPI (Blue). Parallel staining in parental CHO cell line as negative control.
