AB184711

Anti-HIF1 beta antibody [EPR17516]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal HIF1 beta antibody. Suitable for WB, IHC-P and reacts with Human samples. Cited in 1 publication.

View Alternative Names

BHLHE2, ARNT, Aryl hydrocarbon receptor nuclear translocator, ARNT protein, Class E basic helix-loop-helix protein 2, Hypoxia-inducible factor 1-beta, bHLHe2, HIF-1-beta, HIF1-beta

6 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR17516] (AB184711)

Immunohistochemical analysis of paraffin-embedded Human uterus tissue labeling HIF1 beta with ab184711 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear staining on epithelial cells of Human uterus is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR17516] (AB184711)

Immunohistochemical analysis of paraffin-embedded Human hepatocellular carcinoma tissue labeling HIF1 beta with ab184711 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) secondary antibody at 1/500 dilution. Nuclear staining on cancer cells of hepatocellular carcinoma is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

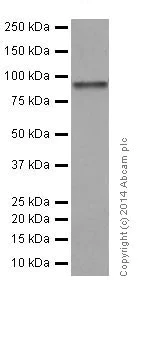

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • WB

Supplier Data

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-HIF1 beta antibody [EPR17516] (ab184711) at 1/1000 dilution

All lanes:

HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Goat Anti-Rabbit IgG, (H+L),Peroxidase conjugated at 1/1000 dilution

Predicted band size: 150 kDa,27 kDa,87 kDa

Observed band size: 130 kDa,180 kDa,30 kDa,87 kDa

false

Exposure time: 8s

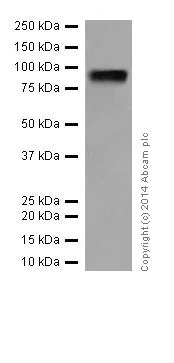

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • WB

Supplier Data

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-HIF1 beta antibody [EPR17516] (ab184711) at 1/1000 dilution

All lanes:

Human fetal kidney lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 54 kDa,87 kDa

Observed band size: 54 kDa,87 kDa

false

Exposure time: 15s

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • WB

Supplier Data

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)

Blocking/Dilution buffer : 5% NFDM/TBST.

All lanes:

Western blot - Anti-HIF1 beta antibody [EPR17516] (ab184711) at 1/2000 dilution

Lane 1:

Human pancreas lysate at 10 µg

Lane 2:

Human colon lysate at 10 µg

Secondary

All lanes:

Anti-Rabbit IgG (HRP), specific to the non-reduced form of IgG at 1/1000 dilution

Predicted band size: 87 kDa

Observed band size: 87 kDa

false

Exposure time: 3min

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)
  • WB

Lab

Western blot - Anti-HIF1 beta antibody [EPR17516] (AB184711)

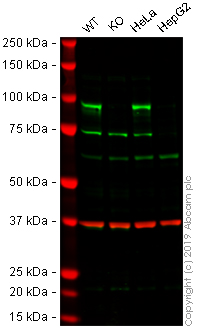

Lanes 1 - 4 : Merged signal (red and green). Green - ab184711 observed at 90 kDa. Red - loading control, ab8245 (Mouse anti-GAPDH antibody [6C5]) observed at 37kDa.

ab184711 was shown to react with ARNT in HAP1 wild-type cells in Western blot. Loss of signal was observed when ARNT knockout sample was used. HAP1 wild-type and ARNT knockout whole cell lysates were subjected to SDS-PAGE. Membranes were blocked in 3% Milk in TBS-T (0.1% Tween®) before incubation with ab184711 and ab8245 (Mouse anti-GAPDH antibody [6C5]) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-HIF1 beta antibody [EPR17516] (ab184711) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

ARNT knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HeLa whole cell lysate at 20 µg

Lane 4:

HepG2 whole cell lysate at 20 µg

Predicted band size: 87 kDa

Observed band size: 90 kDa

false

  • Carrier free

    Anti-HIF1 beta antibody [EPR17516] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR17516

Isotype

IgG

Carrier free

No

Reacts with

Human

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB239366

Anti-HIF1 beta antibody [EPR23106-55]

20ul selling size|RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

  • 0
  • 0
Primary Antibodies

AB267343

Anti-HIF1 beta antibody [EPR23106-55] - BSA and Azide free

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] - BSA and Azide free (AB267343)

  • 0
  • 0
Primary Antibodies

AB270522

Anti-HIF1 beta antibody [EPR23106-151] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR23106-151] - BSA and Azide free (AB270522)

  • 0
  • 0
Primary Antibodies

AB232964

Anti-HIF1 beta antibody

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody (AB232964)

  • 0
  • 0
Primary Antibodies

AB270520

Anti-HIF1 beta antibody [EPR23106-151]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR23106-151] (AB270520)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB179483

Anti-HIF-1 alpha antibody [EPR16897]

20ul selling size|RabMAb|Advanced Validation|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-HIF-1 alpha antibody [EPR16897] (AB179483)

  • 4
  • 9
Primary Antibodies

AB207607

Anti-HIF-2-alpha antibody [EPR19656]

20ul selling size|RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Anti-HIF-2-alpha antibody [EPR19656] (AB207607)

  • 0
  • 0
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB92498

Anti-HIF1AN/FIH-1 antibody [EPR3658]

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1AN/FIH-1 antibody [EPR3658] (AB92498)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/2000", "IHCP-species-notes": "<p></p> Perform heat-mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol." } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

HIF1 beta also known as ARNT (Aryl Hydrocarbon Receptor Nuclear Translocator) plays an important role in cellular response to low oxygen levels. It partners with HIF1 alpha to form the hypoxia-inducible factor (HIF) complex. This beta subunit has a molecular weight of approximately 90 kDa and expresses ubiquitously in many cell types across different tissues. As part of the HIF complex HIF1 beta acts as a critical transcriptional regulator during hypoxic conditions.
Biological function summary

HIF1 beta regulates the expression of genes involved in adaptation to hypoxia. It functions as a dimerization partner in the HIF complex joining with HIF1 alpha or other proteins in the PAS superfamily to activate transcription of target genes. These genes are important for processes like angiogenesis metastasis and energy metabolism helping cells adapt to oxygen-deprived environments. The protein's interaction mainly influences cellular responses to hypoxia supporting tissue survival and function under stress.

Pathways

The involvement of HIF1 beta in the cellular hypoxia response is significant. It engages in the HIF pathway interacting closely with HIF1 alpha promoting the transcription of hypoxia-responsive genes when oxygen levels drop. This process integrates with larger pathways like the VEGF signaling pathway vital for blood vessel formation. Moreover its connection to ARNT serves motivation in the regulation of circadian rhythms showing the protein's broad relevance in cellular regulation.

HIF1 beta has associations with cancer and ischemic conditions. Aberrant activation of the HIF pathway where HIF1 beta is an important component can drive tumor progression through increased angiogenesis and metabolic reprogramming connecting it indirectly to VEGF. In ischemia altered gene expression mediated by HIF1 beta can influence tissue response to low oxygen contributing to disease pathology. Therefore targeting HIF1 beta might offer potential therapeutic avenues for these conditions.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Required for activity of the AHR. Upon ligand binding, AHR translocates into the nucleus, where it heterodimerizes with ARNT and induces transcription by binding to xenobiotic response elements (XRE). Not required for the ligand-binding subunit to translocate from the cytosol to the nucleus after ligand binding (PubMed : 34521881). The complex initiates transcription of genes involved in the regulation of a variety of biological processes, including angiogenesis, hematopoiesis, drug and lipid metabolism, cell motility and immune modulation (Probable). The heterodimer binds to core DNA sequence 5'-TACGTG-3' within the hypoxia response element (HRE) of target gene promoters and functions as a transcriptional regulator of the adaptive response to hypoxia (By similarity). The heterodimer ARNT : AHR binds to core DNA sequence 5'-TGCGTG-3' within the dioxin response element (DRE) of target gene promoters and activates their transcription (PubMed : 28396409).
See full target information ARNT
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

BMC nephrology 26:526 PubMed41013408

2025

INHBA knockdown inhibits renal fibrosis in mice following ischemia-reperfusion injury by suppressing activation of the TGF-β/Smad signaling pathway.

Applications

Unspecified application

Species

Unspecified reactive species

Yifei Wang,Qiao Tang,Qian Sun
