AB239366

Anti-HIF1 beta antibody [EPR23106-55]

Be the first to review this product! Submit a review

|

(5 Publications)

Rabbit Recombinant Monoclonal HIF1 beta antibody. Suitable for IP, WB, ICC/IF, Flow Cyt (Intra) and reacts with Mouse, Human samples. Cited in 5 publications.

View Alternative Names

BHLHE2, ARNT, Aryl hydrocarbon receptor nuclear translocator, ARNT protein, Class E basic helix-loop-helix protein 2, Hypoxia-inducible factor 1-beta, bHLHe2, HIF-1-beta, HIF1-beta

7 Images
Flow Cytometry (Intracellular) - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • Flow Cyt (Intra)

Unknown

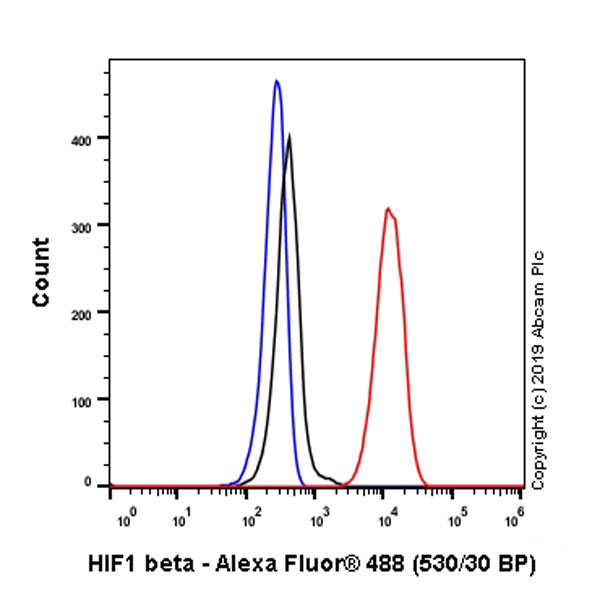

Flow Cytometry (Intracellular) - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling HIF1 beta with ab239366 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730, Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling HIF1 beta with ab239366 at 1/500 dilution, followed by ab150077 AlexaFluor®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing mainly nuclear and weakly cytoplasmic staining in HeLa cell line. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 dilution.

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • IP

Unknown

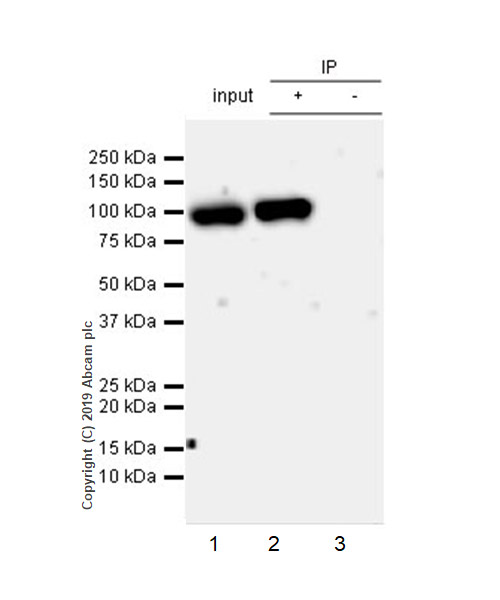

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

HIF1 beta was immunoprecipitated from 0.35 mg HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate with ab239366 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab239366 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate 10ug

Lane 2 : ab239366 IP in HeLa whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab239366 in HeLa whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 min.

All lanes:

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (ab239366)

Predicted band size: 87 kDa

Observed band size: 87 kDa

false

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling HIF1 beta with ab239366 at 1/100 dilution, followed by ab150077 AlexaFluor®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing mainly nuclear and weakly cytoplasmic staining in NIH/3T3 cell line. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 AlexaFluor®488 Goat anti-Rabbit secondary at 1/1000 dilution.

Flow Cytometry (Intracellular) - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • Flow Cyt (Intra)

Unknown

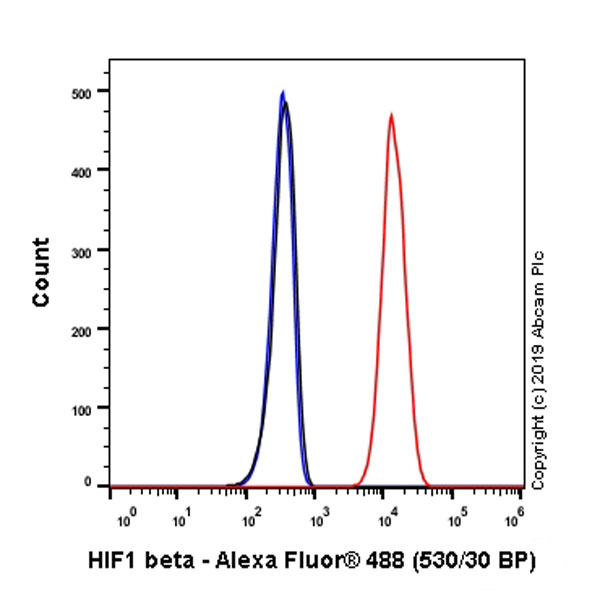

Flow Cytometry (Intracellular) - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized NIH/3T3 (mouse embryonic fibroblast) cells labelling HIF1 beta with ab239366 at 1/500 dilution (Red) compared with a Rabbit monoclonal IgG (ab172730, Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • IP

Unknown

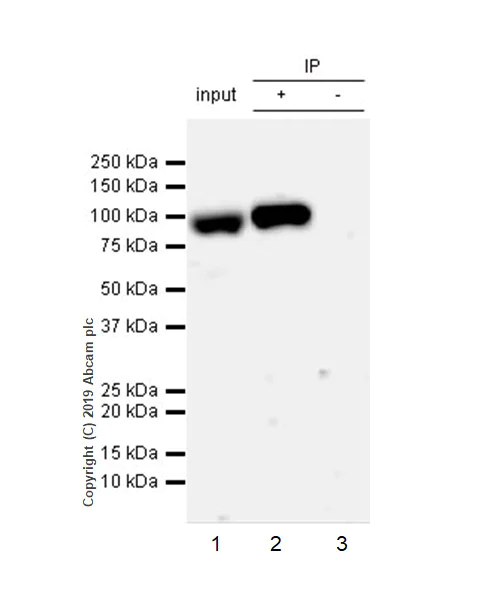

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

HIF1 beta was immunoprecipitated from 0.35 mg NIH/3T3 (mouse embryonic fibroblast) whole cell lysate with ab239366 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab239366 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : NIH/3T3 (mouse embryonic fibroblast) whole cell lysate 10ug

Lane 2 : ab239366 IP in NIH/3T3 whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab239366 in NIH/3T3 whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 3 min.

All lanes:

Immunoprecipitation - Anti-HIF1 beta antibody [EPR23106-55] (ab239366)

Predicted band size: 87 kDa

Observed band size: 87 kDa

false

Western blot - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)
  • WB

Unknown

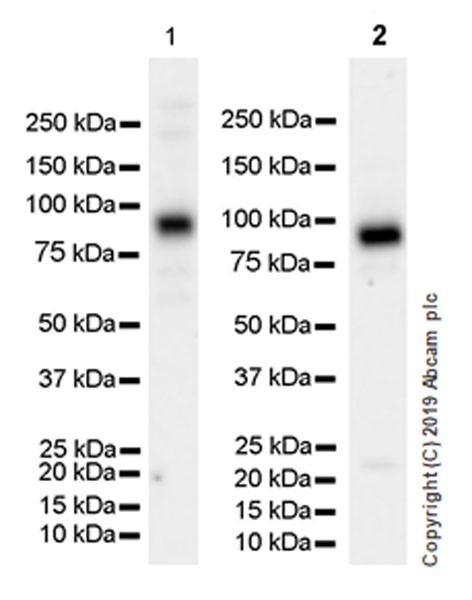

Western blot - Anti-HIF1 beta antibody [EPR23106-55] (AB239366)

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure times.

Lane 1 : 26 seconds; Lane 2 : 37 seconds.

Lysates should be made fresh and used in WB immediately to minimize protein degradation.

All lanes:

Western blot - Anti-HIF1 beta antibody [EPR23106-55] (ab239366) at 1/1000 dilution

Lane 1:

NIH/3T3 (mouse embryonic fibroblast) whole cell lysate at 10 µg

Lane 2:

HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 87 kDa

Observed band size: 87 kDa

false

  • Carrier free

    Anti-HIF1 beta antibody [EPR23106-55] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR23106-55

Isotype

IgG

Carrier free

No

Reacts with

Mouse, Human

Applications

IP, Flow Cyt (Intra), ICC/IF, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB184711

Anti-HIF1 beta antibody [EPR17516]

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR17516] (AB184711)

  • 0
  • 0
Primary Antibodies

AB250776

Anti-HIF1 beta antibody [EPR17516] - BSA and Azide free

RabMAb|Recombinant|KO Validated

Western blot - Anti-HIF1 beta antibody [EPR17516] - BSA and Azide free (AB250776)

  • 0
  • 0
Primary Antibodies

AB270522

Anti-HIF1 beta antibody [EPR23106-151] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR23106-151] - BSA and Azide free (AB270522)

  • 0
  • 0
Primary Antibodies

AB270520

Anti-HIF1 beta antibody [EPR23106-151]

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HIF1 beta antibody [EPR23106-151] (AB270520)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB179483

Anti-HIF-1 alpha antibody [EPR16897]

20ul selling size|RabMAb|Advanced Validation|Recombinant|KO Validated

Immunocytochemistry/ Immunofluorescence - Anti-HIF-1 alpha antibody [EPR16897] (AB179483)

  • 4
  • 9
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB16502

Anti-NF-kB p65 antibody

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-NF-kB p65 antibody (AB16502)

  • 4
  • 40
Primary Antibodies

AB22048

Anti-TLR4 antibody [76B357.1]

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-TLR4 antibody [76B357.1] (AB22048)

  • 4
  • 29
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IP" : {"fullname" : "Immunoprecipitation", "shortname":"IP"}, "ChIP" : {"fullname" : "ChIP", "shortname":"ChIP"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "ICCIF" : {"fullname" : "Immunocytochemistry/ Immunofluorescence", "shortname":"ICC/IF"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "<p></p>", "ChIP-species-checked": "notRecommended", "ChIP-species-dilution-info": "", "ChIP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>" }, "Mouse": { "IP-species-checked": "testedAndGuaranteed", "IP-species-dilution-info": "1/30", "IP-species-notes": "<p></p>", "ChIP-species-checked": "notRecommended", "ChIP-species-dilution-info": "", "ChIP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "notRecommended", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>", "ICCIF-species-checked": "testedAndGuaranteed", "ICCIF-species-dilution-info": "1/100", "ICCIF-species-notes": "<p></p>", "FlowCytIntra-species-checked": "testedAndGuaranteed", "FlowCytIntra-species-dilution-info": "1/500", "FlowCytIntra-species-notes": "<p></p>" } } }
style
left-column

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.2 - 7.4 Preservative: 0.01% Sodium azide Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

HIF1 beta also known as ARNT (Aryl Hydrocarbon Receptor Nuclear Translocator) plays an important role in cellular response to low oxygen levels. It partners with HIF1 alpha to form the hypoxia-inducible factor (HIF) complex. This beta subunit has a molecular weight of approximately 90 kDa and expresses ubiquitously in many cell types across different tissues. As part of the HIF complex HIF1 beta acts as a critical transcriptional regulator during hypoxic conditions.
Biological function summary

HIF1 beta regulates the expression of genes involved in adaptation to hypoxia. It functions as a dimerization partner in the HIF complex joining with HIF1 alpha or other proteins in the PAS superfamily to activate transcription of target genes. These genes are important for processes like angiogenesis metastasis and energy metabolism helping cells adapt to oxygen-deprived environments. The protein's interaction mainly influences cellular responses to hypoxia supporting tissue survival and function under stress.

Pathways

The involvement of HIF1 beta in the cellular hypoxia response is significant. It engages in the HIF pathway interacting closely with HIF1 alpha promoting the transcription of hypoxia-responsive genes when oxygen levels drop. This process integrates with larger pathways like the VEGF signaling pathway vital for blood vessel formation. Moreover its connection to ARNT serves motivation in the regulation of circadian rhythms showing the protein's broad relevance in cellular regulation.

HIF1 beta has associations with cancer and ischemic conditions. Aberrant activation of the HIF pathway where HIF1 beta is an important component can drive tumor progression through increased angiogenesis and metabolic reprogramming connecting it indirectly to VEGF. In ischemia altered gene expression mediated by HIF1 beta can influence tissue response to low oxygen contributing to disease pathology. Therefore targeting HIF1 beta might offer potential therapeutic avenues for these conditions.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Required for activity of the AHR. Upon ligand binding, AHR translocates into the nucleus, where it heterodimerizes with ARNT and induces transcription by binding to xenobiotic response elements (XRE). Not required for the ligand-binding subunit to translocate from the cytosol to the nucleus after ligand binding (PubMed : 34521881). The complex initiates transcription of genes involved in the regulation of a variety of biological processes, including angiogenesis, hematopoiesis, drug and lipid metabolism, cell motility and immune modulation (Probable). The heterodimer binds to core DNA sequence 5'-TACGTG-3' within the hypoxia response element (HRE) of target gene promoters and functions as a transcriptional regulator of the adaptive response to hypoxia (By similarity). The heterodimer ARNT : AHR binds to core DNA sequence 5'-TGCGTG-3' within the dioxin response element (DRE) of target gene promoters and activates their transcription (PubMed : 28396409).
See full target information ARNT
style
left-column

Publications (5)

Recent publications for all applications. Explore the full list and refine your search

Signal transduction and targeted therapy 10:280 PubMed40887473

2025

Focal adhesion kinase/Src family kinase axis-mediated tyrosine phosphorylation of metabolic enzymes facilitates tumor metastasis.

Applications

Unspecified application

Species

Unspecified reactive species

Jie Chen,Jing Zhang,Yuheng Zhu,Yanmeng Zhu,Jingyuan Pang,Qingnan Wu,Yan Wang,Qimin Zhan

Mediators of inflammation 2023:1097706 PubMed37292256

2023

Therapeutic Role and Potential Mechanism of Resveratrol in Atherosclerosis: TLR4/NF-B/HIF-1.

Applications

Unspecified application

Species

Unspecified reactive species

Lin Guo,Xiaolu Zhang,Nuan Lv,Luming Wang,Jiali Gan,Xijuan Jiang,Yijing Wang

Journal of advanced research 56:31-41 PubMed36933884

2023

Polystyrenenanoplastics lead to ferroptosis in the lungs.

Applications

Unspecified application

Species

Unspecified reactive species

Yuhao Wu,Junke Wang,Tianxin Zhao,Mang Sun,Maozhu Xu,Siyi Che,Zhengxia Pan,Chun Wu,Lianju Shen

iScience 25:103604 PubMed35005549

2022

miR-29cb2 promotes angiogenesis and osteogenesis by inhibiting HIF-3α in bone.

Applications

Unspecified application

Species

Unspecified reactive species

Liping Ouyang,Yingxiao Sun,Dan Lv,Xiaochun Peng,Xiaoming Liu,Lei Ci,Guoning Zhang,Bo Yuan,Ling Li,Jian Fei,Jun Ma,Xuanyong Liu,Yun Liao

Acta pharmaceutica Sinica. B 11:3481-3492 PubMed34900531

2021

Bruceine D inhibits HIF-1-mediated glucose metabolism in hepatocellular carcinoma by blocking ICAT/-catenin interaction.

Applications

Unspecified application

Species

Unspecified reactive species

Rui Huang,Lijun Zhang,Jinmei Jin,Yudong Zhou,Hongwei Zhang,Chao Lv,Dong Lu,Ye Wu,Hong Zhang,Sanhong Liu,Hongzhuan Chen,Xin Luan,Weidong Zhang
