Anti-Histone H2A antibody [EPR18089] - BSA and Azide free

2 product images

•

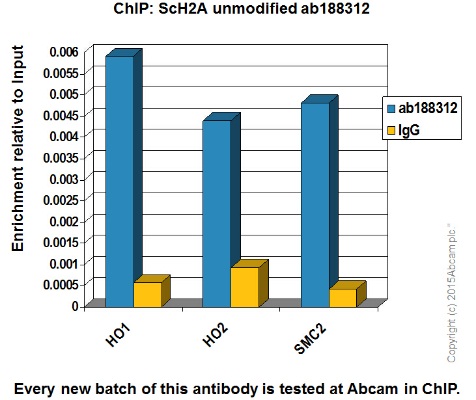

  ChIP - Anti-Histone H2A antibody [EPR18089] - BSA and Azide free (ab217841)

  Chromatin was prepared from Saccharomyces cerevisiae cells according to the Abcam X-ChIP protocol.


  Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25 μg of chromatin, 2 μg of Anti-Histone H2A antibody [EPR18089] - ChIP Grade ab188312 (blue), and 20 μl of Anti Rabbit IgG sepharose beads. 2 μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol and sodium azide (Anti-Histone H2A antibody [EPR18089] - ChIP Grade ab188312).

•

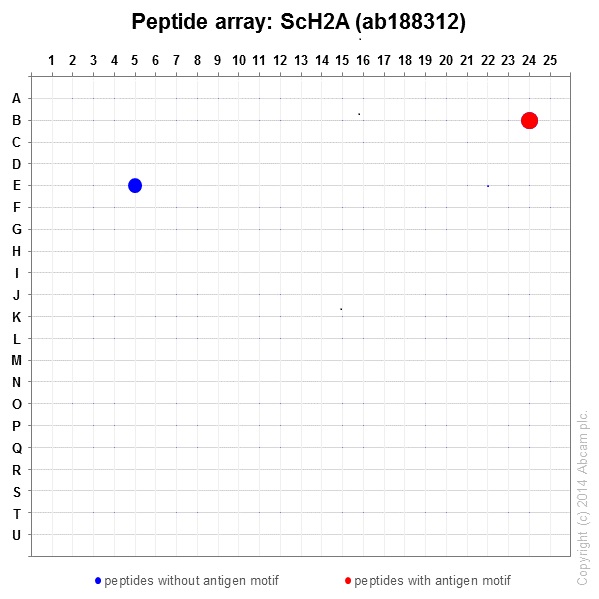

  Peptide Array - Anti-Histone H2A antibody [EPR18089] - BSA and Azide free (ab217841)

  Anti-Histone H2A antibody [EPR18089] - ChIP Grade ab188312 was tested in Peptide array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
  Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
  The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Support & downloads section.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol and sodium azide (Anti-Histone H2A antibody [EPR18089] - ChIP Grade ab188312).
