Anti-Histone H2A (crotonyl K118) antibody [EP18768] - BSA and Azide free

• WB

Supplier Data

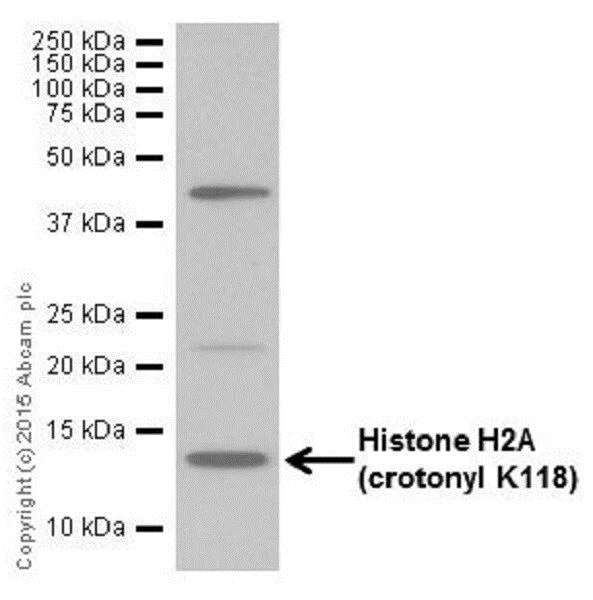

Western blot - Anti-Histone H2A (crotonyl K118) antibody [EP18768] - BSA and Azide free (AB284852)

This data was developed using ab195466, the same antibody clone in a different buffer formulation.

Blocking/Dilution buffer : 5% BSA/TBST.

All lanes:

Western blot - Anti-Histone H2A (crotonyl K118) antibody [EP18768] (<a href='/en-us/products/primary-antibodies/histone-h2a-crotonyl-k118-antibody-ep18768-ab195466'>ab195466</a>) at 1/500 dilution

All lanes:

HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 14 kDa

Observed band size: 14 kDa

false

Exposure time: 10s

• WB

Supplier Data

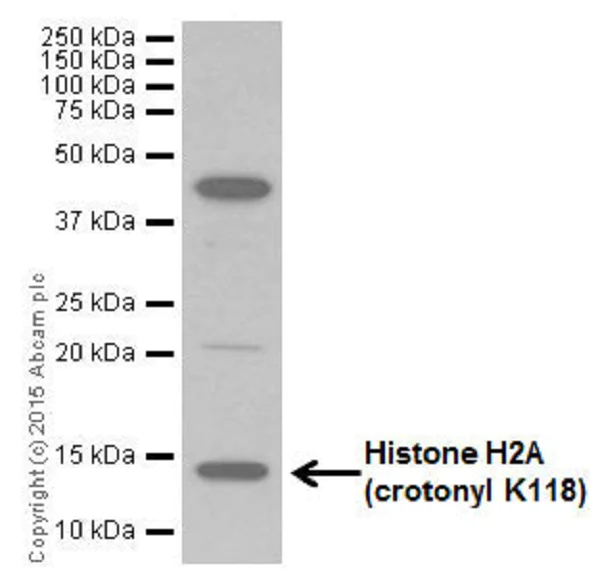

Western blot - Anti-Histone H2A (crotonyl K118) antibody [EP18768] - BSA and Azide free (AB284852)

This data was developed using ab195466, the same antibody clone in a different buffer formulation.

Blocking/Dilution buffer : 5% BSA/TBST.

All lanes:

Western blot - Anti-Histone H2A (crotonyl K118) antibody [EP18768] - BSA and Azide free (ab284852) at 1/500 dilution

All lanes:

NIH/3T3 Mouse embryonic fibroblast cells whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 14 kDa

Observed band size: 14 kDa

false

Exposure time: 2s

• PepArr

Supplier Data

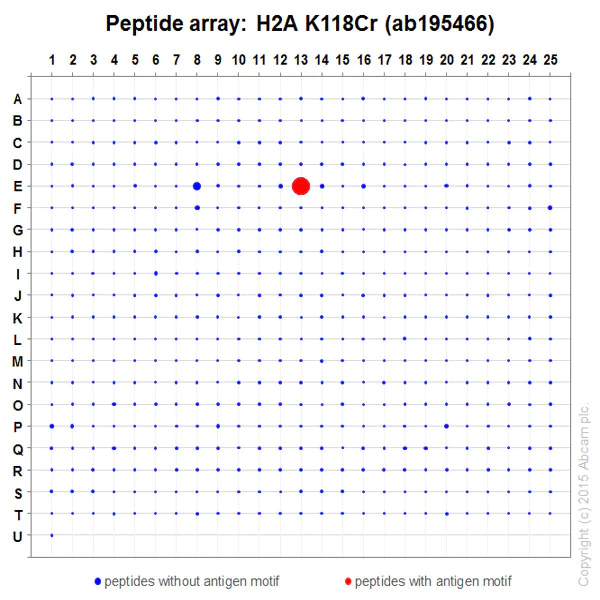

Peptide Array - Anti-Histone H2A (crotonyl K118) antibody [EP18768] - BSA and Azide free (AB284852)

This data was developed using ab195466, the same antibody clone in a different buffer formulation.ab195466 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.
