Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14]

17 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/500 (0.914 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on human colon.The section was incubated with ab309354 for 30 mins at room temperature, incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

•

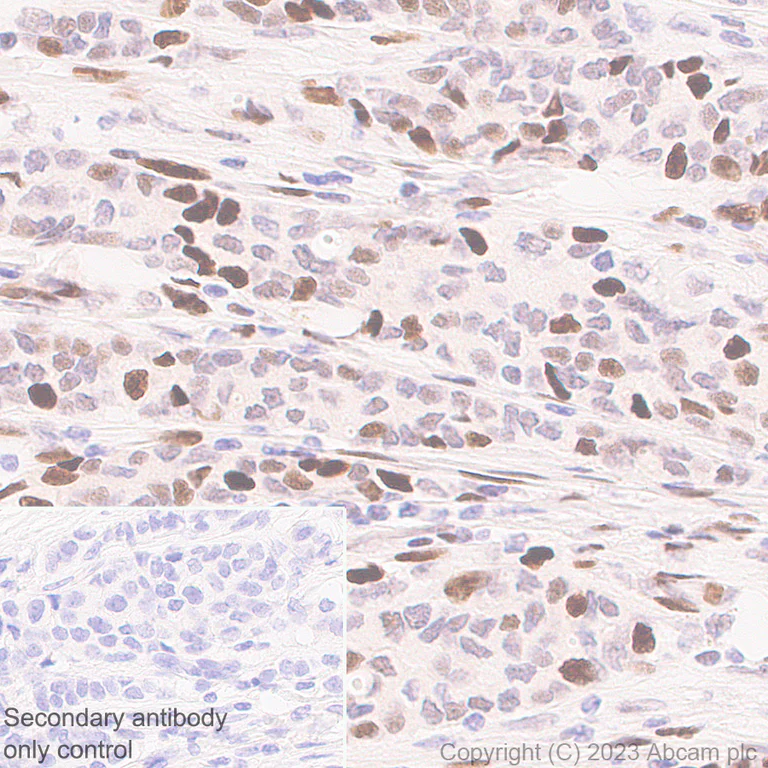

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of paraffin-embedded Human breast cancer tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/500 (0.914 ug/ml) followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection). Nuclear staining on human breast cancer.The section was incubated with ab309354 for 30 mins at room temperature, incubate slides with 3% Hydrogen Peroxide for 10 mins at room temperature after secondary antibody incubation to reduce the background.The immunostaining was performed on a Leica Biosystems BOND® RX instrument Counterstained with Hematoxylin.
  Secondary antibody only control: Secondary antibody is a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).
  Heat mediated antigen retrieval was performed with Tris-EDTA buffer (pH 9.0, Epitope Retrieval Solution2) for 20 mins

•

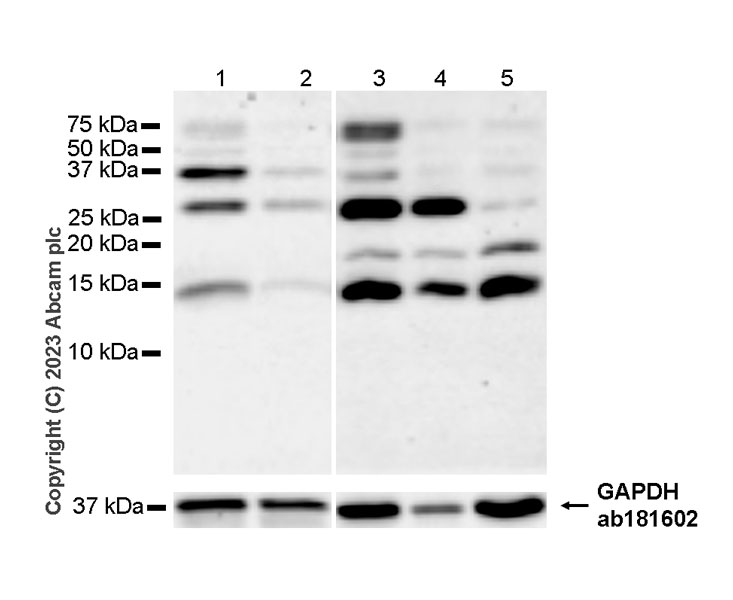

  Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.


  The expression of Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) is downregulated in response to EPZ015666 treatment (PMID: 31249870).

  In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.

  This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

  All lanes: Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/1000 dilution

  Lane 1: Untreated U-2 OS (human bone osteosarcoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: U-2 OS treated with 5 uM EPZ015666 for 72 hours whole cell lysate at 20 µg

  Lane 3: HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 4: MEF (mouse embryonic fibroblast (immortalized)) whole cell lysate at 20 µg

  Lane 5: C6 (rat glial tumor glial cell) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Developed using the ECL technique.

  Observed band size: 15 kDa

  Exposure time: 180s

•

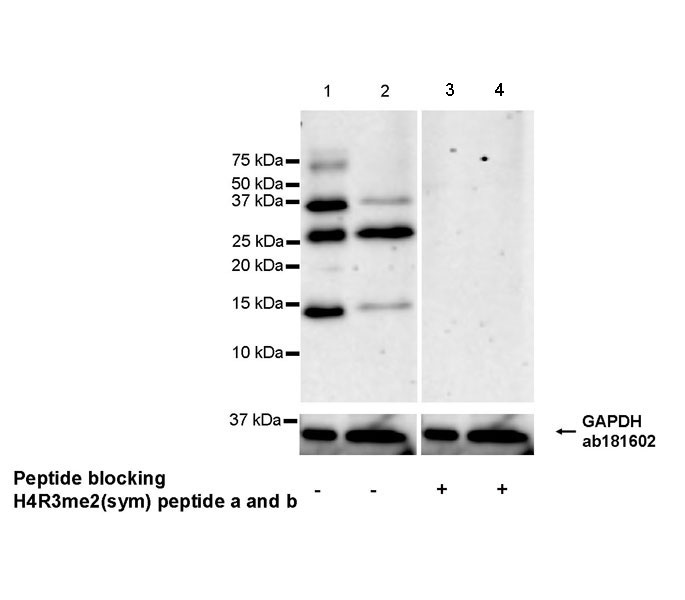

  Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.


  This blot was developed using a high sensitivity ECL substrate. The high-sensitivity ECL substrate used allows for the detection of proteins in the mid-femtogram range.

  In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.

  All lanes: Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/1000 dilution

  Lane 1: HeLa (human cervix adenocarcinoma epithelial cell) hitone lysate at 20 µg

  Lane 2: NIH/3T3 (mouse embryonic fibroblast) histone lysate at 20 µg

  Lanes 3 - 4: NIH/3T3 (mouse embryonic fibroblast) histone lysate

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Developed using the ECL technique.

  Observed band size: 15 kDa

  Exposure time: 180s

•

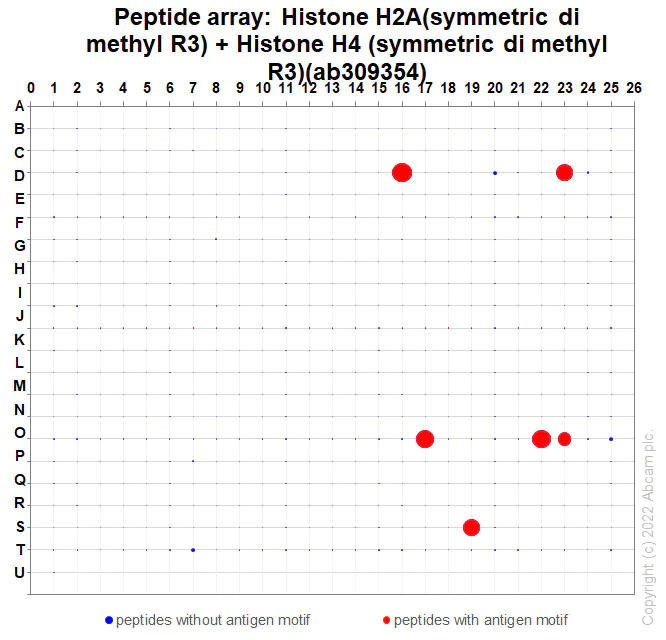

  Peptide Array - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Peptide array analysis of ab309354 at 0.1ug/ml (0.1 ug/ml) followed by a Goat Anti-Rabbit IgG, (H+L), Fluo 647nm conjugated at 1:50,000 dilution.
  ab309354 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
  Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as the area under the curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
  The complete dataset, including a full list of all peptides and information on the position of each peptide in the diagram, can be downloaded here.

•

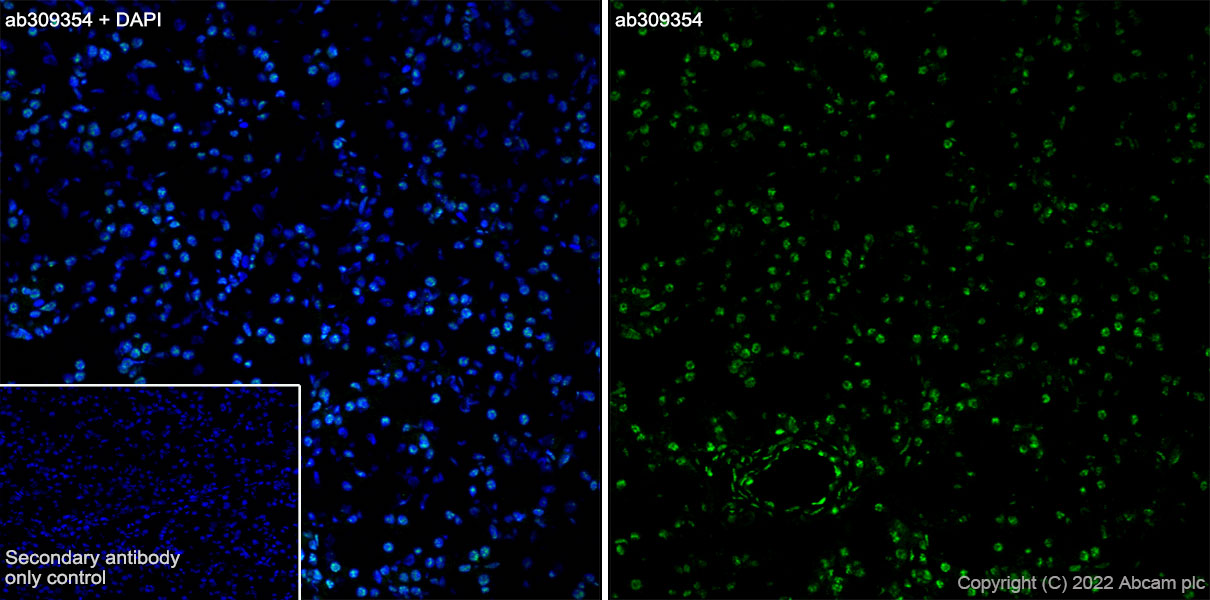

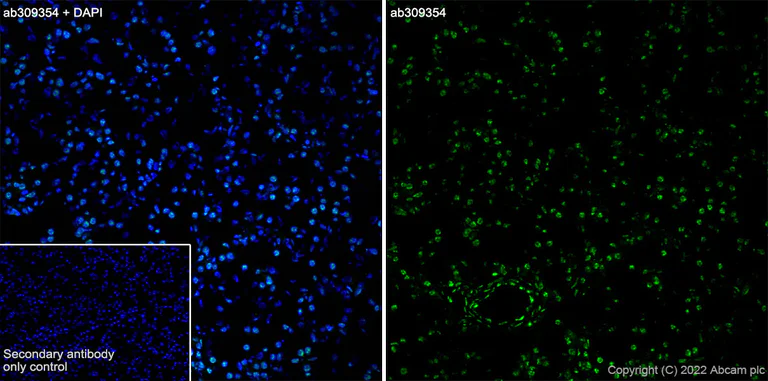

  Immunohistochemistry (Frozen sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat pancreas (fresh) tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining on rat pancreas. The nuclear counterstain was DAPI (Blue). The section was incubated with ab309354 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.<\p> <\p>

•

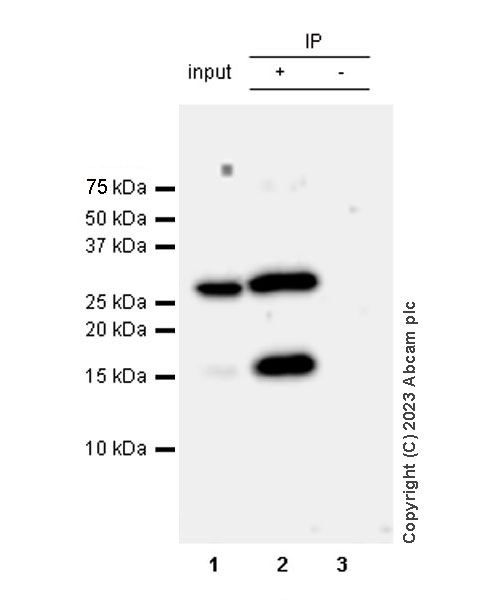

  Immunoprecipitation - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) was immunoprecipitated from 0.35 mg MEF (mouse embryonic fibroblast (immortalized)) whole cell lysate with ab309354 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab309354 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
  Lane 1: MEF (mouse embryonic fibroblast (immortalized)) whole cell lysate
  Lane 2: ab309354 IP in MEF (mouse embryonic fibroblast (immortalized)) whole cell lysate
  Lane 3:Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab309354 in MEF whole cell lysate
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 180 seconds

  All lanes: Immunoprecipitation - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/30 dilution

  All lanes: MEF (mouse embryonic fibroblast (immortalized)) whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 180s

•

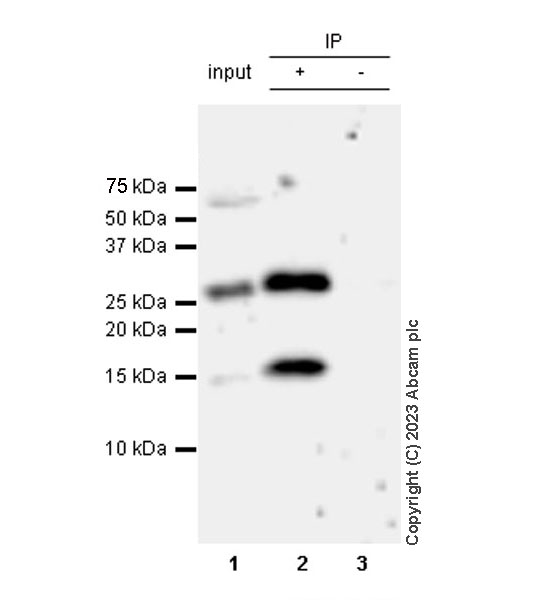

  Immunoprecipitation - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) was immunoprecipitated from 0.35 mg HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate with ab309354 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab309354 at 1/1000 dilution. VeriBlot for IP secondary antibody(HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.
  Lane 1: HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate
  Lane 2: ab309354 IP in HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate
  Lane 3:Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab309354 in HeLa whole cell lysate
  Blocking and dilution buffer and concentration: 5% NFDM/TBST.
  Exposure time: 180 seconds

  All lanes: Immunoprecipitation - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/30 dilution

  All lanes: HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate

  Secondary

  All lanes: Immunoprecipitation - VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) at 1/5000 dilution

  Exposure time: 180s

•

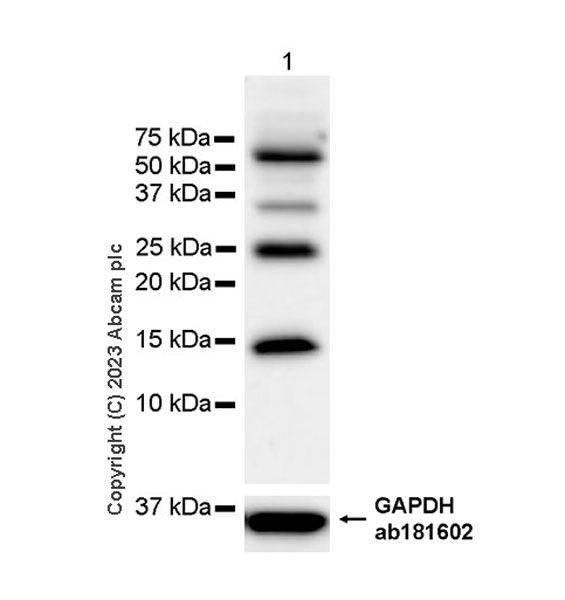

  Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
  Exposure time: 103 seconds

  All lanes: Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/1000 dilution

  All lanes: Mouse colon tissue lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 15 kDa

  Exposure time: 103s

•

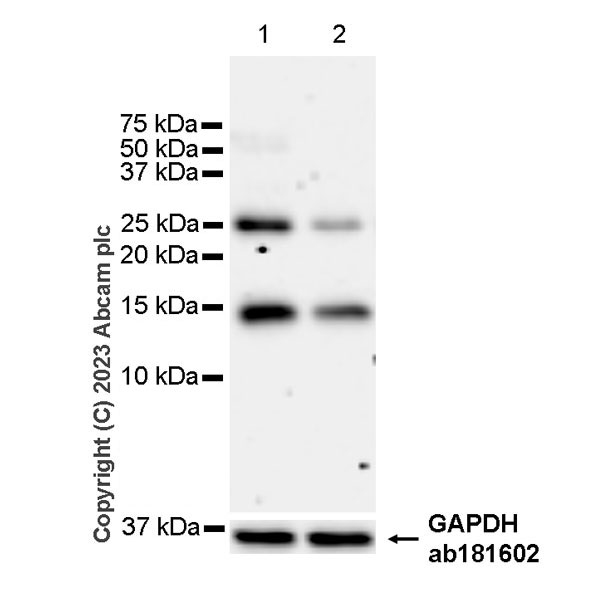

  Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST
  The expression of Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) is downregulated in response to EPZ015666 treatment (PMID: 31249870).

  In Western blot, anti-GAPDH antibody (Anti-GAPDH antibody [EPR16891] - Loading Control ab181602) loading control staining at 1/200000 dilution.
  Exposure time: 180 seconds

  All lanes: Western blot - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354) at 1/1000 dilution

  Lane 1: Untreated HCT116 (human colorectal carcinoma epithelial cell) whole cell lysate at 20 µg

  Lane 2: HCT116 treated with 5 uM EPZ015666 for 72 hours whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Observed band size: 15 kDa

  Exposure time: 180s

•

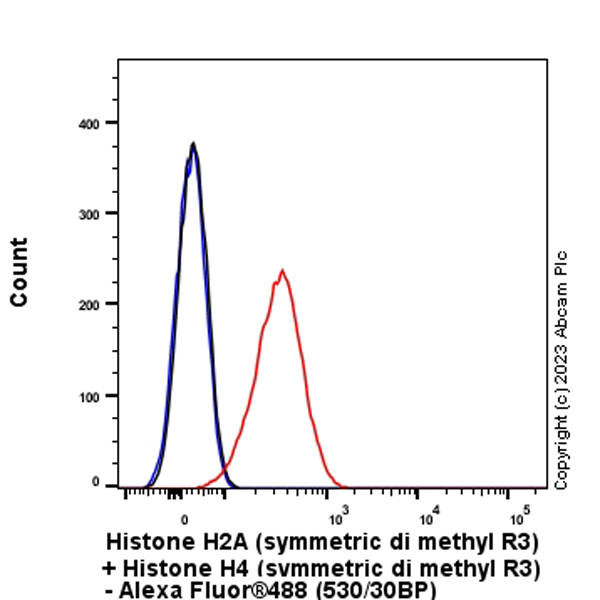

  Flow Cytometry (Intracellular) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HeLa (human cervical adenocarcinoma epithelial cell) cells labelling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized MEF (mus musculus Embryo Fibroblast) cells labelling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing nuclear staining in MEF cell line.Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

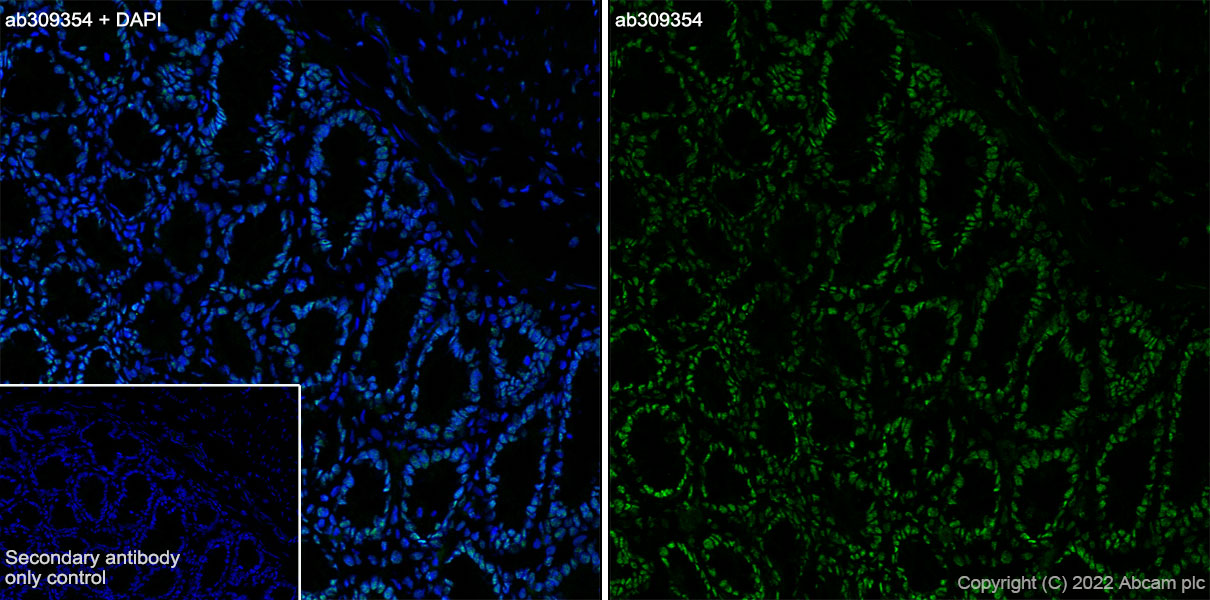

  Immunohistochemistry (Frozen sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Rat colon (fresh) tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining on rat colon. The nuclear counterstain was DAPI (Blue). The section was incubated with ab309354 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.<\p> <\p>

•

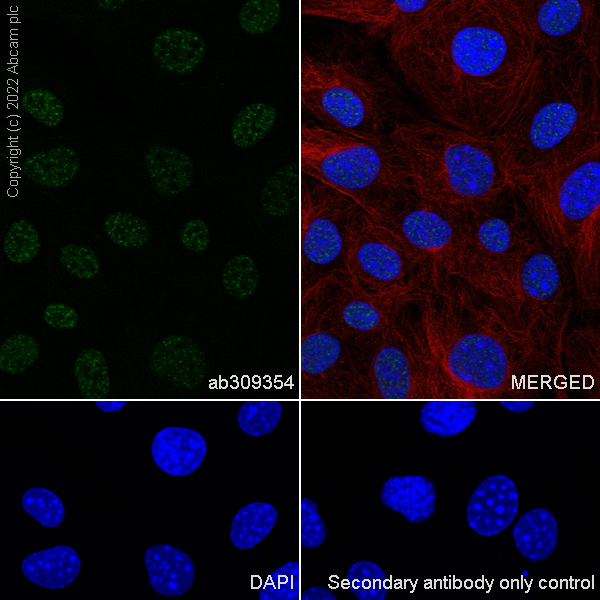

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunofluorescent analysis of 100% methanol-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed antibody at 1/1000 2 ug/ml dilution (Green). Confocal image showing nuclear staining in HeLa cell line.Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). is observed. Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin mouse monoclonal antibody - Microtubule Marker (Alexa Fluor® 594) was used to counterstain tubulin at 1/200 2.5ug/ml dilution (Red). The Nuclear counterstain was DAPI (Blue). Secondary antibody only control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/ml dilution.

•

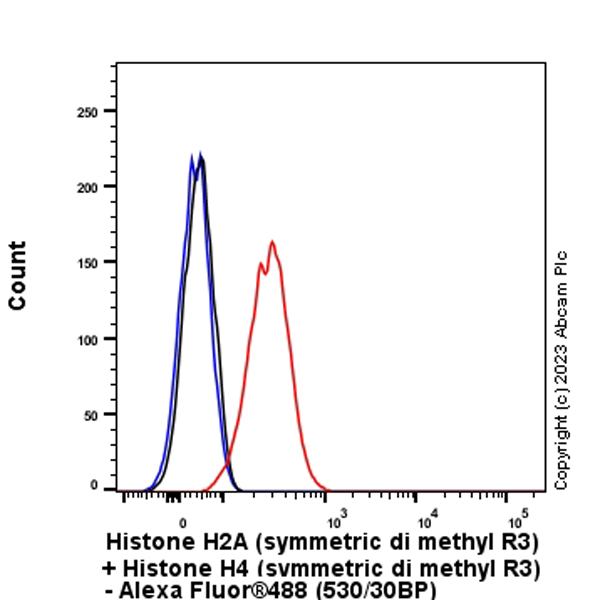

  Flow Cytometry (Intracellular) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized MEF (mouse embryo fibroblast) cells labelling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/500 dilution (0.1 ug)/Red (Red) compared with a Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) (Black) isotype control and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081) at 1/5000 dilution was used as the secondary antibody.

•

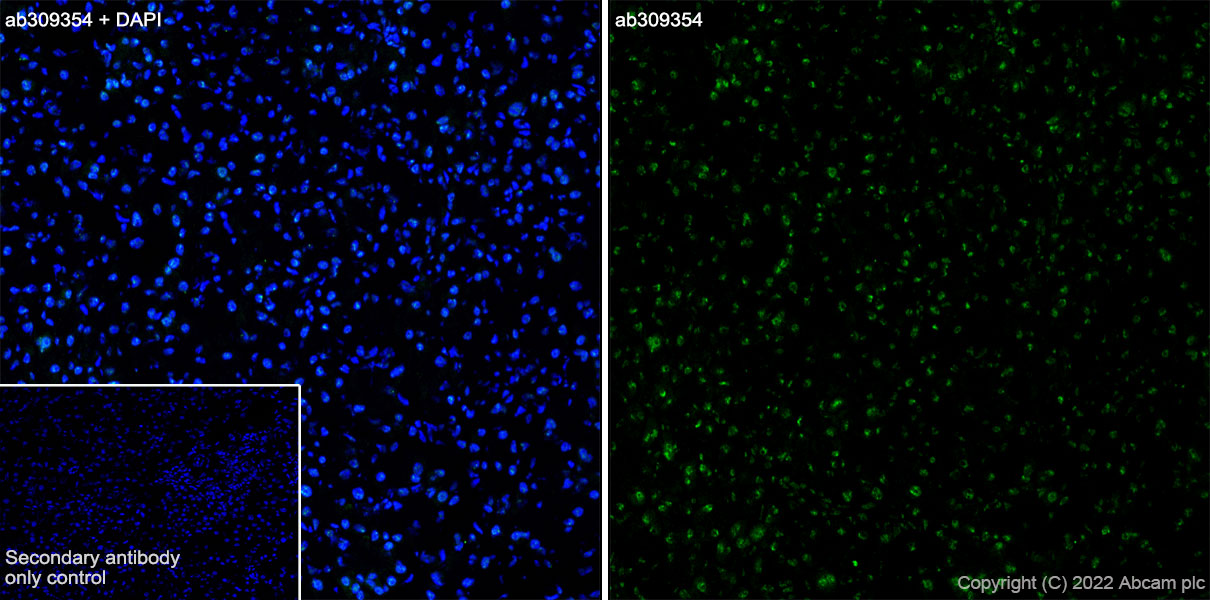

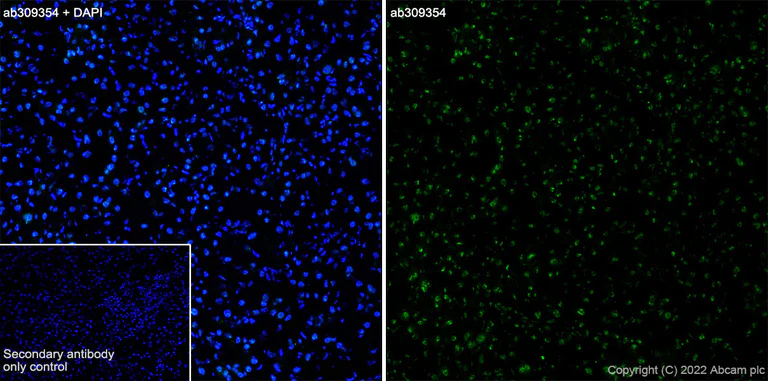

  Immunohistochemistry (Frozen sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse pancreas (fresh) tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining on mouse pancreas. The nuclear counterstain was DAPI (Blue). The section was incubated with ab309354 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.<\p> <\p>

•

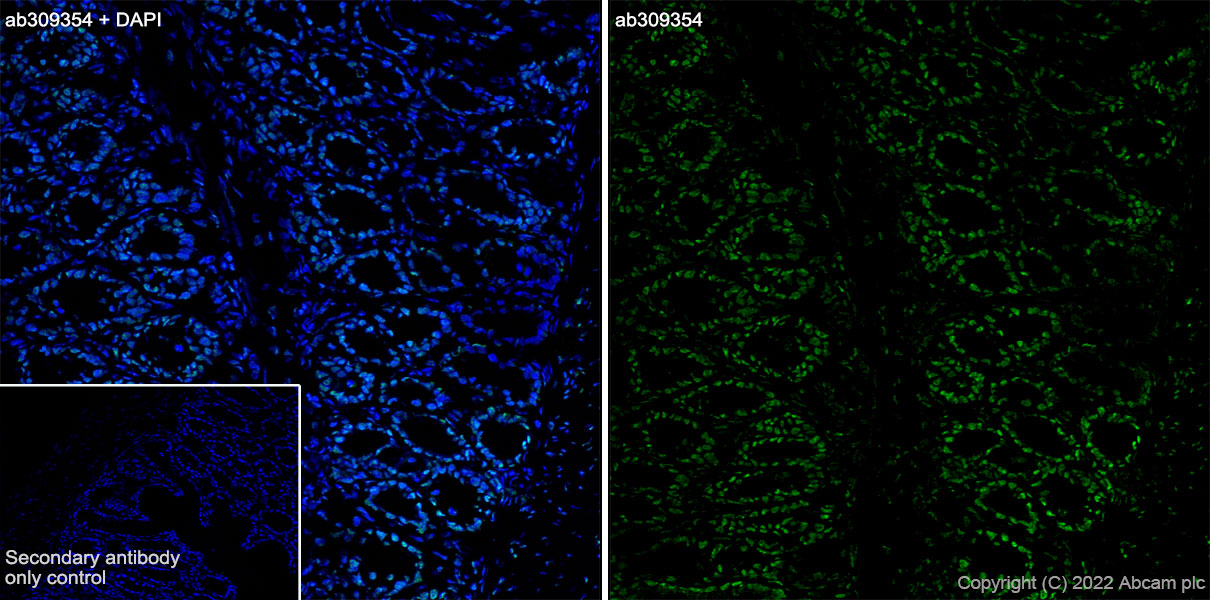

  Immunohistochemistry (Frozen sections) - Anti-Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) antibody [EPR27303-14] (ab309354)

  Immunohistochemical analysis of 4% PFA-fixed, 0.2% Triton X-100 permeabilized frozen Mouse colon (fresh) tissue labeling Histone H2A (symmetric di methyl R3) + Histone H4 (symmetric di methyl R3) with ab309354 at 1/50 (9.14 ug/ml) dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed at 1/1000 2 ug/mL dilution (Green). Confocal image showing positive staining on mouse colon. The nuclear counterstain was DAPI (Blue). The section was incubated with ab309354 for 60 mins at room temperature. The section was then mounted using Fluoromount®.The immunostaining was performed on a Leica Biosystems BOND® RX instrument. Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8). is observed. The nuclear counterstain was DAPI (Blue). Secondary antibody control: Secondary antibody is Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbed ab150081 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) preadsorbedat 1/1000 2 ug/mL dilution.<\p> <\p>
