Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling Histone H2A.X with ab229914 at 1/100 dilution, followed by ab229914 anti- Histone H2A.X ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary antibody at 1/1000 dilution (Green). Confocal image showing nuclear staining in HeLa cell line is observed. ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) was used to counterstain tubulin at 1/200 dilution (Red). The Nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 AlexaFluor^®488 Goat anti-Rabbit secondary at 1/1000 dilution.

• Flow Cyt (Intra)

Unknown

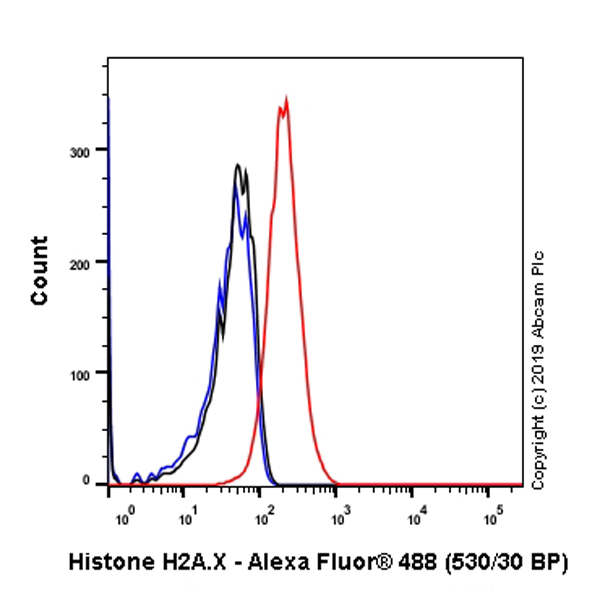

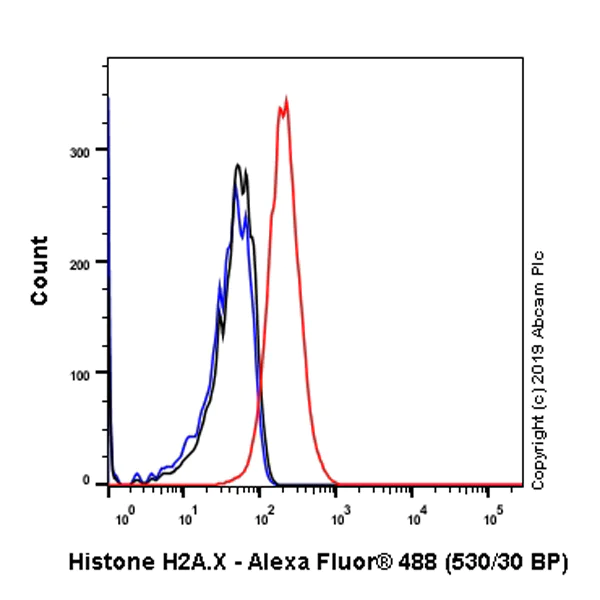

Flow Cytometry (Intracellular) - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HeLa (human cervix adenocarcinoma epithelial cell) cells labelling Histone H2A.X with ab229914 at 1/50 dilution (Red), compared with a Rabbit monoclonal IgG (ab172730) isotype control (Black)and an unlabelled control (cells without incubation with primary antibody and secondary antibody) (Blue). A Goat anti rabbit IgG (Alexa Fluor^� 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Immunohistochemical analysis of paraffin-embedded Human testis tissue labeling Histone H2A.X with ab229914 at 1/200 dilution (2.56 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on the human testis (PMID/ 24059746). The section was incubated with ab229914 for 15 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101)

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Immunohistochemical analysis of paraffin-embedded Human breast carcinoma tissue labeling Histone H2A.X with ab229914 at 1/200 dilution (2.56 ug/ml) followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on the human breast carcinoma (PMID/ 27006338). The section was incubated with ab229914 for 15 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101)

.

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution 2) for 20 mins.

• IP

Unknown

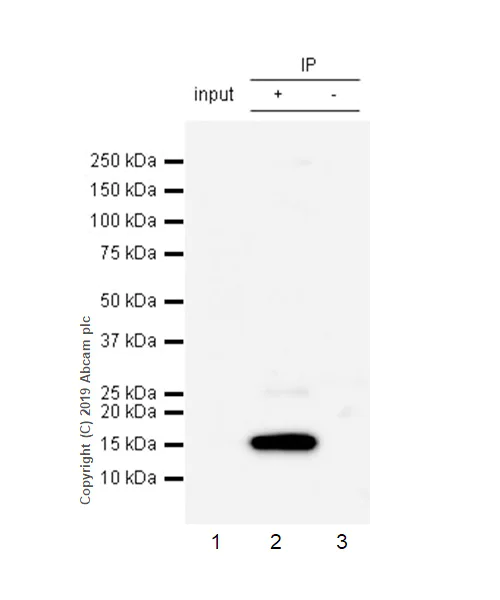

Immunoprecipitation - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Histone H2A.X was immunoprecipitated from 0.35 mg HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate with ab229914 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab229914 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366) was used at 1/5000 dilution.

Lane 1 : HeLa (human cervix adenocarcinoma epithelial cell) whole cell lysate

Lane 2 : ab229914 IP in HeLa whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab229914 in HeLa whole cell lysate

Blocking and dilution buffer and concentration/ 5% NFDM/TBST.

Exposure time/ 30 seconds.

All lanes:

Immunoprecipitation - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (ab229914)

Predicted band size: 15 kDa

false

• ChIP

Unknown

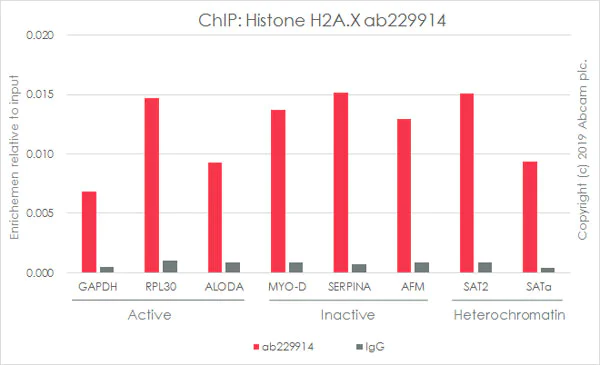

ChIP - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol*. Cells were fixed with formaldehyde for 10min.

The ChIP was performed with 25 μg of chromatin, 5 μg of ab229914 (red), or 5 μg of rabbit normal IgG ab172730 (gray) and 20μl of Protein A/G sepharose beads. The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci).

Primers and probes are located in the first kb of the transcribed region.

*http : //www.abcam.com/resources?keywords=X%20ChIP%20protocol.

• WB

Lab

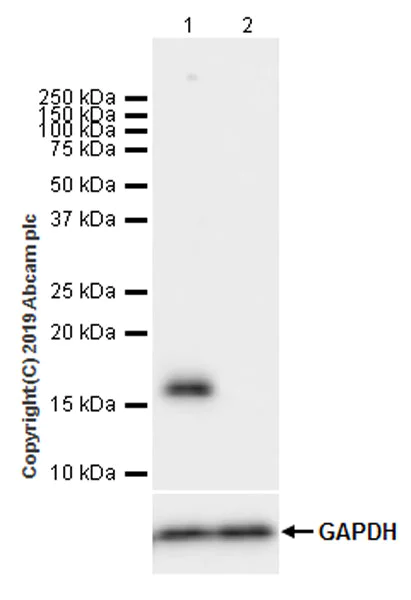

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

ab229914 was shown to specifically react with Histone H2A.X in wild-type HAP1 cells as signal was lost in Histone H2A.X knockout cells. Wild-type and Histone H2A.X knockout samples were subjected to SDS-PAGE. ab229914 and ab181602 (Rabbit anti-GAPDH loading control) were incubated 1 hour at room temperature at 1/1000 dilution and 1/200,000 dilution respectively. Blots were developed with Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) secondary antibody at 1/100,000 dilution for 1 hour at room temperature before imaging. The blot was developed on a BIO-RAD® ChemiDoc™ MP instrument using the ECL technique. Blocking/Diluting buffer and concentration : 5% NFDM/TBST Exposure Time : 37 seconds

All lanes:

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (ab229914) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

Histone H2A.X knockout HAP1 whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/20000 dilution

Predicted band size: 15 kDa

Observed band size: 16 kDa

false

• WB

Lab

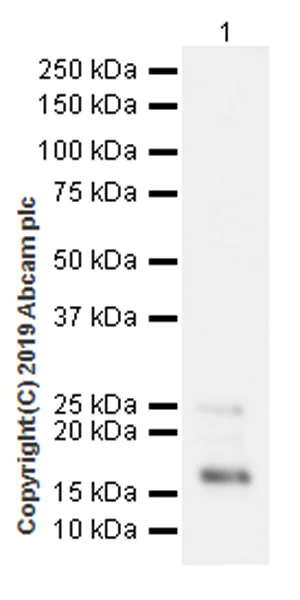

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

A 25-kDa band, likely to be ubiquitinated H2A.X, is observed. The molecular weights are consistent with what have been described in the literature (PMID : 24603765)

All lanes:

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (ab229914) at 1/1000 dilution

All lanes:

HEK-293 (human embryonic kidney epithelial cell), histone extract at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 15 kDa

Observed band size: 16 kDa,25 kDa

false

• WB

Lab

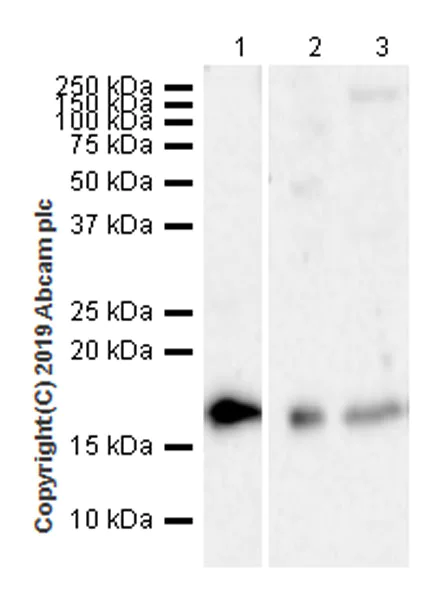

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

This blot was developed using a higher sensitivity ECL substrate.

All lanes:

Western blot - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (ab229914) at 1/1000 dilution

Lane 1:

Human brain tissue lysate at 20 µg

Lane 2:

HeLa (human cervix adenocarcinoma epithelial cell), whole cell lysate at 20 µg

Lane 3:

293T (human embryonic kidney epithelial cell), whole cell lysate at 20 µg

Secondary

Lane 1:

VeriBlot for IP secondary antibody (HRP) at 1/1000 dilution

Lanes 2 - 3:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 15 kDa

Observed band size: 16 kDa,25 kDa

false

• PepArr

Unknown

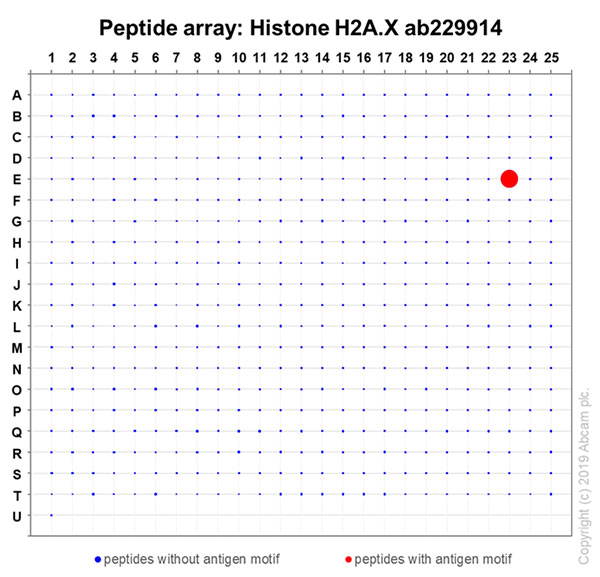

Peptide Array - Anti-Histone H2A.X antibody [EPR22820-23] - ChIP Grade (AB229914)

All batches of ab229914 are tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).

Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.

The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.
