Anti-Histone H2B (mono methyl K23) antibody [EPR17603]

• ICC/IF

Supplier Data

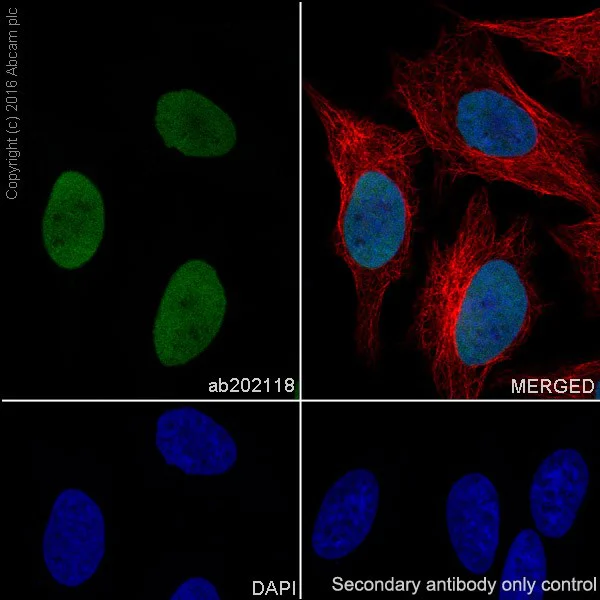

Immunocytochemistry/ Immunofluorescence - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (AB202118)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling Histone H2B (mono methyl K23) with ab202118 at 1/4000 dilution followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on HeLa cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

• WB

Supplier Data

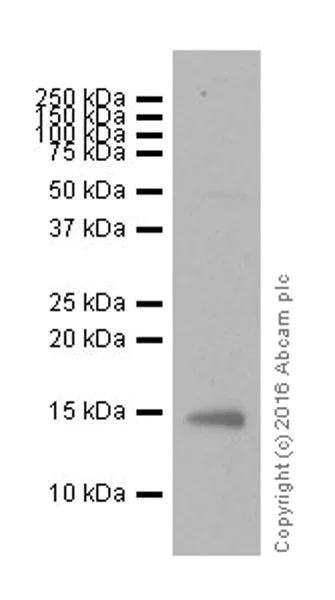

Western blot - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (AB202118)

Blocking/Dilution buffer : 5% BSA/TBST.

All lanes:

Western blot - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (ab202118) at 1/1000 dilution

All lanes:

HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 14 kDa

Observed band size: 14 kDa

false

Exposure time: 30s

• WB

Supplier Data

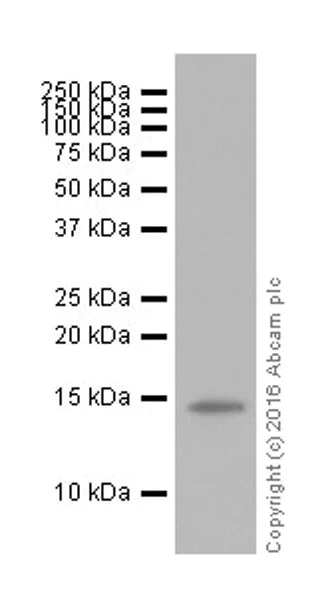

Western blot - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (AB202118)

Blocking/Dilution buffer : 5% BSA/TBST.

All lanes:

Western blot - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (ab202118) at 1/1000 dilution

All lanes:

NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 110 kDa,14 kDa

Observed band size: 14 kDa

false

Exposure time: 1min

• ICC/IF

Supplier Data

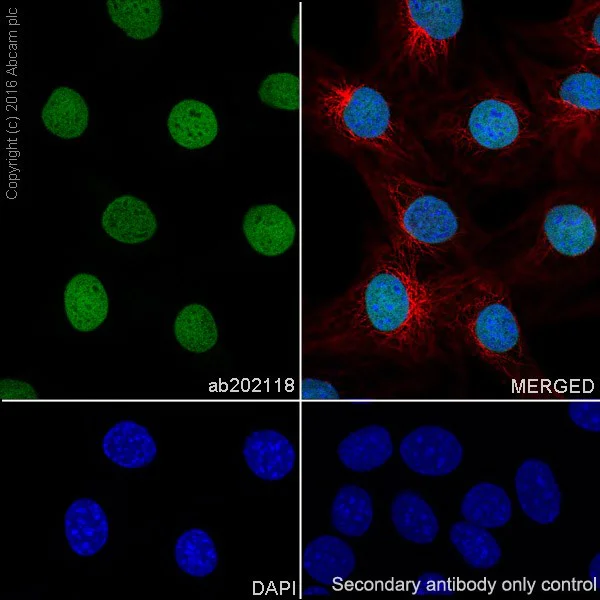

Immunocytochemistry/ Immunofluorescence - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (AB202118)

Immunofluorescent analysis of 4% paraformaldehyde-fixed 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling Histone H2B (mono methyl K23) with ab202118 at 1/4000 dilution followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on NIH/3T3 cell line.

The nuclear counter stain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

• PepArr

Supplier Data

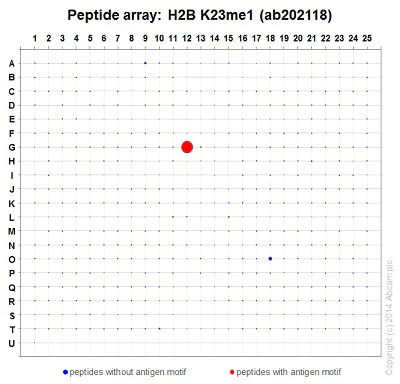

Peptide Array - Anti-Histone H2B (mono methyl K23) antibody [EPR17603] (AB202118)

ab202118 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).

Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.

The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.
