Anti-Histone H3 antibody [EPR16987] - BSA and Azide free

• Flow Cyt (Intra)

Lab

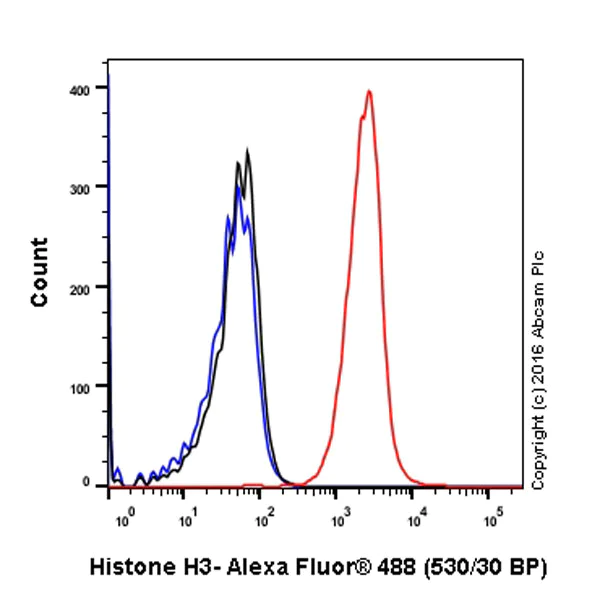

Flow Cytometry (Intracellular) - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Intracellular Flow Cytometry analysis of HeLa (human cervix adenocarcinoma) cells labeling Histone H3 with purified ab176842 at 1/40 dilution (10ug/ml) (red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488) (1/2000 dilution) was used as the secondary antibody. Rabbit monoclonal IgG (Black) was used as the isotype control, cells without incubation with primary antibody and secondary antibody (Blue) was used as the unlabeled control.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H3 with ab176842 at 1/2000 dilution, followed by Goat anti-rabbit Alexa Fluor® 488 (IgG) (ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing nuclear staining on HeLa cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (goat anti-mouse AlexaFluor®594 Goat secondary antibody) at 1/500 dilution (red).
The negative controls are as follows;
-ve control 1 : ab176842 at 1/2000 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
-ve control 2 : ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Immunohistochemical analysis of paraffin-embedded human colon tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG; H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on glandular epithelium of human colon tissue is observed. Counter stained with hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol and sodium azide (ab176842).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ChIP

Unknown

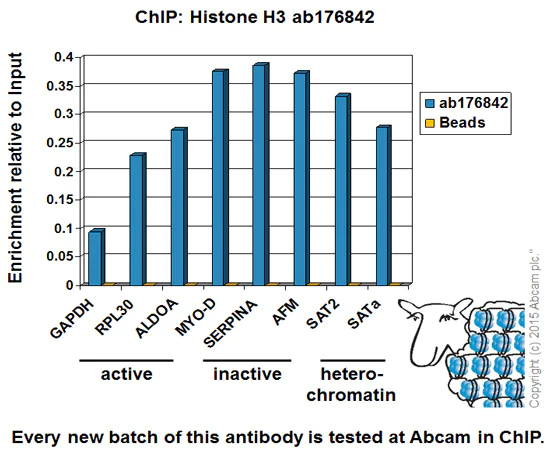

ChIP - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25µg of chromatin, 2µg of ab176842 (blue), and 20µl of Protein A/G sepharose beads. No antibody was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci). Primers and probes are located in the first kb of the transcribed region.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Immunohistochemical analysis of paraffin-embedded Mouse liver tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on mouse liver tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

Immunohistochemical analysis of paraffin-embedded Rat pancreas tissue labeling Histone H3 with ab176842 at 1/500 dilution, followed by Goat Anti-Rabbit HRP (IgG H&L) secondary antibody (ab97051) at 1/500 dilution. Nuclear staining on rat pancreas tissue is observed. Counter stained with Hematoxylin.

Negative control : Used PBS instead of primary antibody, secondary antibody Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

Western blot - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842). Blocking and dilution buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-Histone H3 antibody [EPR16987] - Nuclear Marker and ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-antibody-epr16987-nuclear-marker-and-chip-grade-ab176842'>ab176842</a>) at 1/10000 dilution

All lanes:

HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/50000 dilution

Predicted band size: 15 kDa

Observed band size: 15 kDa

false

Exposure time: 3s

• PepArr

Supplier Data

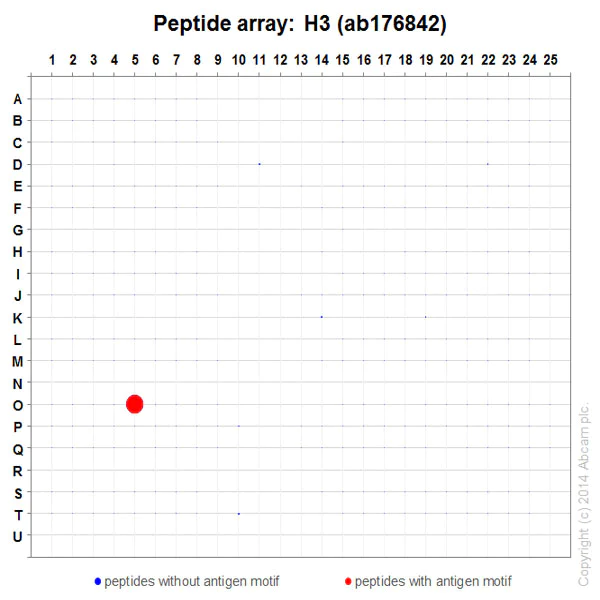

Peptide Array - Anti-Histone H3 antibody [EPR16987] - BSA and Azide free (AB238971)

ab176842 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab176842).
