Anti-Histone H3 antibody [EPR17785] - BSA and Azide free

7 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Immunohistochemical analysis of paraffin-embedded Human cervix carcinoma tissue labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/200 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) secondary antibody at 1/500 dilution.


  Nuclear staining on Human cervix carcinoma tissue is observed.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Immunohistochemical analysis of paraffin-embedded Human kidney tissue labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/200 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) secondary antibody at 1/500 dilution.


  Nuclear staining on Human kidney tissue is observed.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/200 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) secondary antibody at 1/500 dilution.


  Nuclear staining on mouse colon tissue is observed.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Immunohistochemical analysis of paraffin-embedded Rat stomach tissue labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/200 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) secondary antibody at 1/500 dilution.


  Nuclear staining on rat stomach tissue is observed.

  Counter stained with Hematoxylin.

  Secondary antibody only control: Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

  Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton-X100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/800 dilution, followed by AlexaFluor®488 Goat anti-Rabbit secondary antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/500 dilution (green).

  Confocal image showing nuclear staining on HeLa cell line.

  The nuclear counter stain is DAPI (blue).

  Tubulin is stained with Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 anti-Tubulin (mouse mAb) at 1/1000 dilution, followed by AlexaFluor®594 Goat anti-Mouse secondary antibody (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 1/500 dilution (red).
  -ve control 1: Anti-Histone H3 antibody [EPR17785] ab201456 at 1/800 dilution followed by AlexaFluor®594 Goat anti-Mouse secondary antibody (Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120) at 1/500 dilution.
  -ve control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 anti-Tubulin (mouse mAb) at 1/1000 dilution, followed by AlexaFluor®488 Goat anti-Rabbit secondary antibody (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/500 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

•

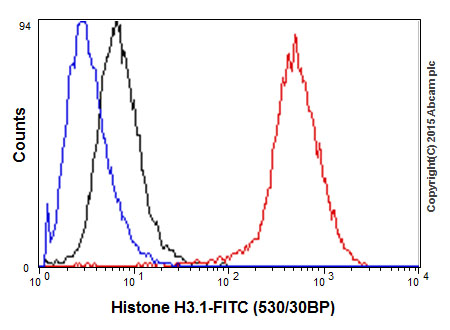

  Flow Cytometry (Intracellular) - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  Intracellular flow cytometric analysis of 2% paraformaldehyde-fixed HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H3 with Anti-Histone H3 antibody [EPR17785] ab201456 at 1/100 dilution (red) compared with a rabbit monoclonal IgG isotype control (black) and an unlabelled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (FITC) at 1/150 dilution was used as the secondary antibody.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

•

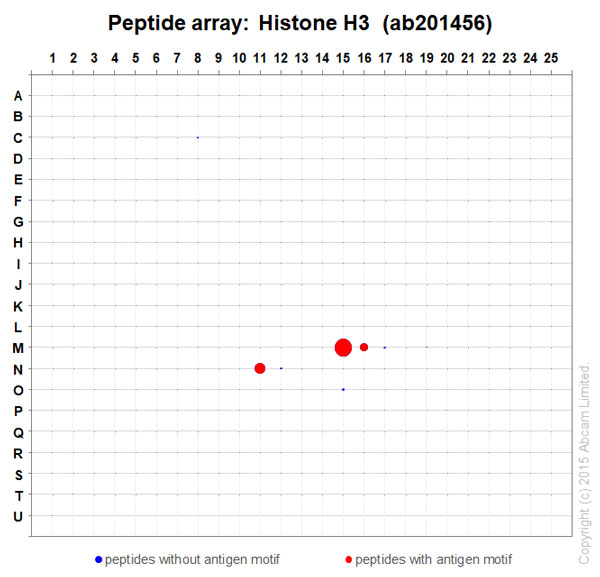

  Peptide Array - Anti-Histone H3 antibody [EPR17785] - BSA and Azide free (ab240361)

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 antibody [EPR17785] ab201456).

  Peptide array analysis of Anti-Histone H3 antibody [EPR17785] ab201456 at 1/10000 (0.02 ug/ml) dilution followed by a Goat Anti-Rabbit IgG, (H+L), Fluo 647nm conjugated at 1/50000 dilution.

  Blocking buffer: 5% BSA in TBST.

  Anti-Histone H3 antibody [EPR17785] ab201456 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
  Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as the area under the curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
  The complete dataset, including a full list of all peptides and information on the position of each peptide in the diagram, can be downloaded here.
