Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade

• WB

Unknown

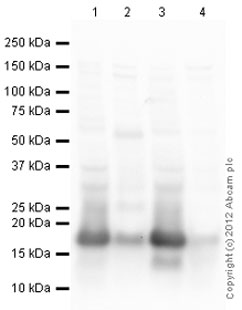

Western blot - Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade (AB24834)

All lanes:

Western blot - Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade (ab24834) at 1 µg/mL

Lane 1:

NIH/3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

Lane 2:

Testis (Mouse) Tissue Lysate at 10 µg

Lane 3:

PC12 (Rat adrenal pheochromocytoma cell line) Whole Cell Lysate at 10 µg

Lane 4:

Testis (Rat) Tissue Lysate - normal tissue (<a href='/en-us/products/unavailable/testis-rat-tissue-lysate-normal-tissue-ab29388'>ab29388</a>) at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/5000 dilution

Predicted band size: 15 kDa

Observed band size: 18 kDa

true

Exposure time: 3min

• ChIP

Lab

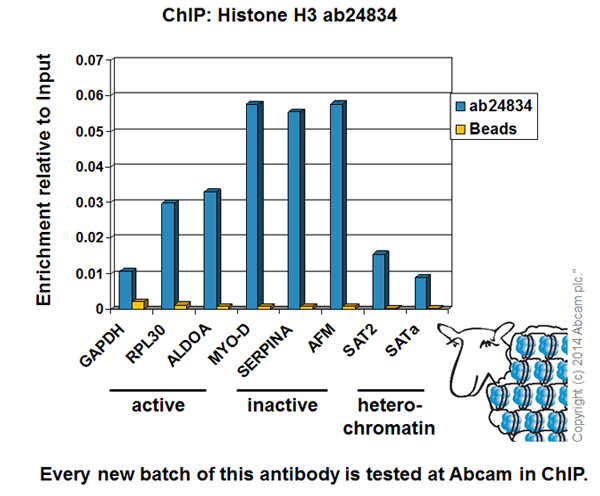

ChIP - Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade (AB24834)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 5μg of ab24834 (blue), and 20μl of Protein A/G sepharose beads. No antibody was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci). Primers and probes are located in the first kb of the transcribed region.

• WB

Project

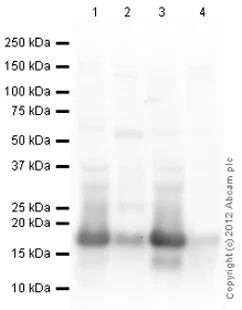

Western blot - Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade (AB24834)

All lanes:

Western blot - Anti-Histone H3 antibody [mAbcam 24834] - Nuclear Loading Control and ChIP Grade (ab24834) at 1 µg/mL

All lanes:

HeLa histone prep at 1 µg/mL

Secondary

All lanes:

Western blot - Rabbit Anti-Mouse IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/rabbit-mouse-igg-h-l-hrp-ab6728'>ab6728</a>) at 1/5000 dilution

Predicted band size: 15 kDa

Observed band size: 18 kDa

false
