Anti-Histone H3 (citrulline R8) antibody [EPR20358-13]
- RabMAb
- Recombinant
- 20ul selling size
- What is this?
Be the first to review this product! Submit a review
|
(10 Publications)
Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406) is a rabbit monoclonal antibody detecting Histone H3 in Western Blot, Flow Cytometry (Intra), IP, ICC/IF, ELISA. Suitable for Human, Mouse, Rat.
- Biophysical QC for unrivalled batch-batch consistency
View Alternative Names
H3FA, HIST1H3A, H3C2, H3FL, HIST1H3B, H3C3, H3FC HIST1H3C, H3C4, H3FB, HIST1H3D, H3C6, H3FD, HIST1H3E, H3C7, H3FI, HIST1H3F, H3C8, H3FH, HIST1H3G, H3C10, H3FK, HIST1H3H, H3C11, H3FF, HIST1H3I, H3C12, H3FJ, HIST1H3J, HIST1H3C, H3FC, H3C1, Histone H3.1, Histone H3/a, Histone H3/b, Histone H3/c, Histone H3/d, Histone H3/f, Histone H3/h, Histone H3/i, Histone H3/j, Histone H3/k, Histone H3/l, H3R8cit
- ICC/IF
Supplier Data

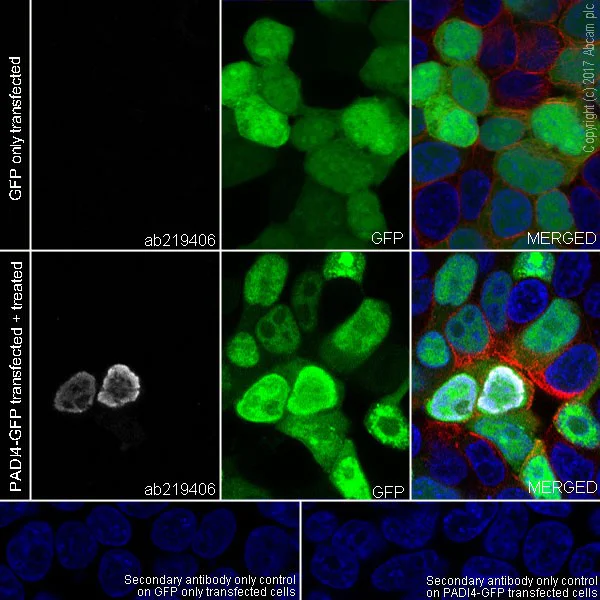

Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HEK-293T (Human epithelial cell line from embryonic kidney) cells transfected with GFP only or a GFP-tagged PADI4 expression construct, then treated with 10mM CaCl2 for 2 hours, labeling Histone H3 (citrulline R8) with ab219406 at 1/100 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/1000 dilution (green).
Confocal image showing positive staining on HEK-293T cells transfected with a GFP-tagged PADI4 expression construct, then treated with 10mM CaCl2 for 2 hours.
The nuclear counterstain is DAPI (blue).
Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor® 594)) at 1/200 dilution (red).
Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) at 1/1000 dilution.
- Flow Cyt (Intra)
Lab

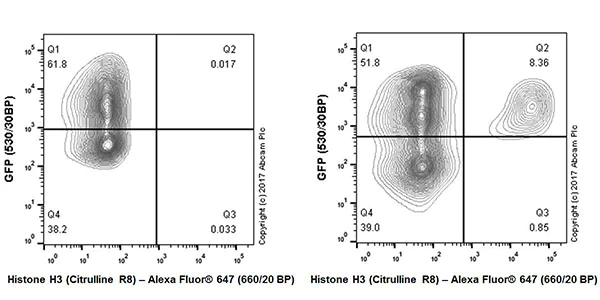

Flow Cytometry (Intracellular) - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HEK-293T (Human epithelial cell line from embryonic kidney) transfected with empty vector (left panel) or PADI4 (WT, right panel), then treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours, labeling Histone H3 (citrulline R8)with ab219406 at 1/500 dilution, followed by Goat anti rabbit IgG (Alexa Fluor® 647) at 1/2000 dilution.
Positive signal is obtained from HEK-293T cells transfected with WT PADI4 treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours.
- ELISA
Supplier Data

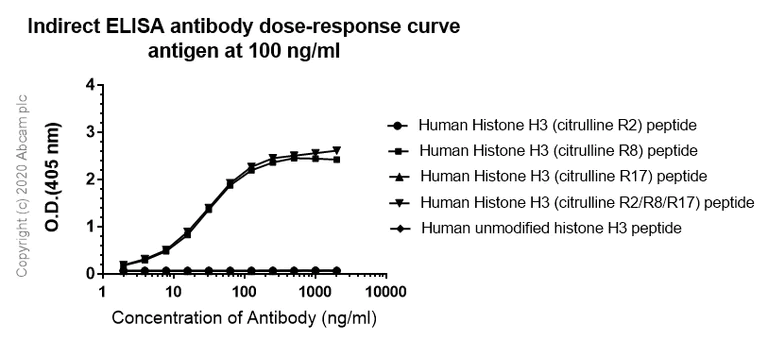

ELISA - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
ELISA analysis of Human Histone H3 (citrulline R8) recombinant protein at 100 ng/ml with ab219406. An Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/2500 dilution was used as the secondary antibody.
- IP
Lab

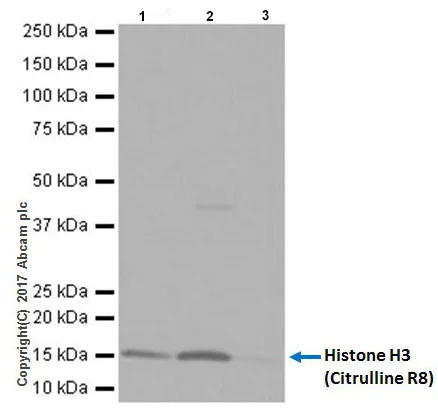

Immunoprecipitation - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Histone H3 (citrulline R8) was immunoprecipitated from 0.35 mg of HEK-293T (Human epithelial cell line from embryonic kidney) transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours, whole cell lysate with ab219406 at 1/30 dilution.
Western blot was performed from the immunoprecipitate using ab219406 at 1/1000 dilution.
VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.
Lane 1 : HEK-293T transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours, whole cell lysate 10 μg (Input).
Lane 2 : ab219406 IP in HEK-293T transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours, whole cell lysate.
Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab219406 in HEK-293T transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (ab120116) for 2 hours, whole cell lysate.
Blocking and dilution buffer : 5% NFDM/TBST.
All lanes:
Immunoprecipitation - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406)
Predicted band size: 15 kDa
false
Exposure time: 1s
- WB
Supplier Data

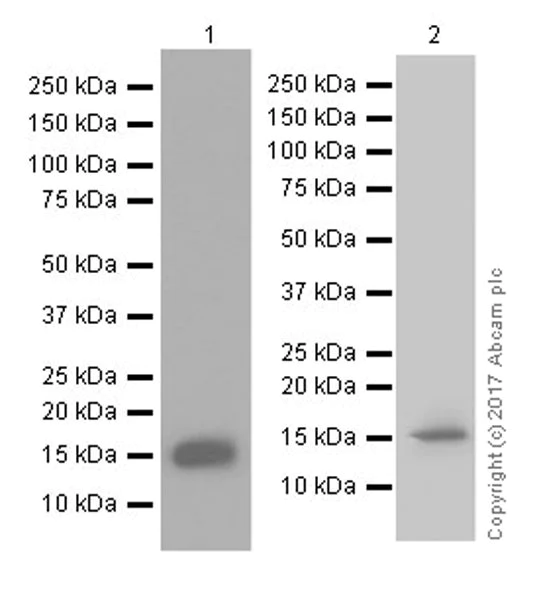

Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Blocking/Dilution buffer : 5% BSA/TBST.
All lanes:
Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406) at 1/1000 dilution
Lane 1:
E12 rat embryo lysate at 10 µg
Lane 2:
E12 mouse embryo lysate at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 15 kDa,43 kDa
Observed band size: 15 kDa
false
Exposure time: 1s
- ELISA
Unknown

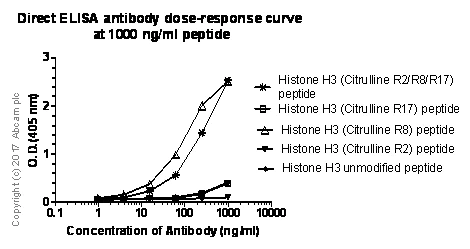

ELISA - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Direct ELISA using ab219406 at 0-1000 ng/ml, followed by Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG(H+L) at 1/2500 dilution. Antigen concentration : 1000 ng/ml.
- WB
Lab

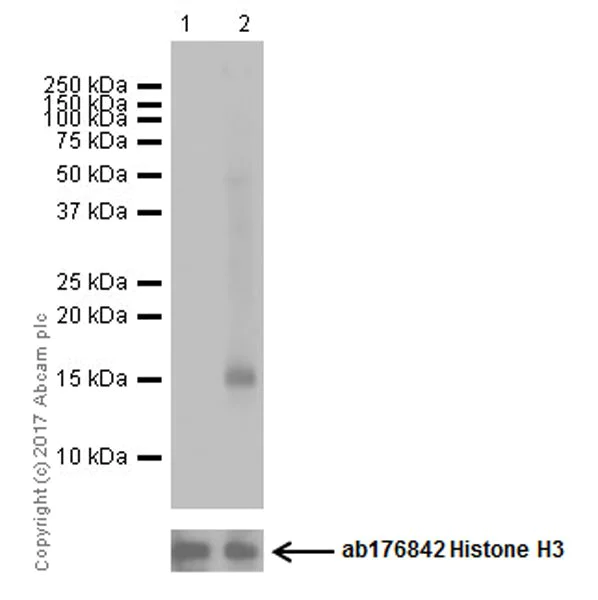

Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Blocking/Dilution buffer : 5% BSA/TBST.
Histone H3R8 is citrullinated by PADI4 and CaCl2 is used as a cofactor according to the literature (PMID : 16567635). Ionomycin is used to improve the modification by PADI4 according to the literature (PMID : 26360112).
All lanes:
Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406) at 1/10000 dilution
Lane 1:
Whole cell lysate from HEK-293T (Human epithelial cell line from embryonic kidney) transfected with empty vector with GFP tag (vector control), then treated with 10mM CaCl2 and 10μM Ionomyci at 10 µg
Lane 2:
Whole cell lysate from HEK-293T cells transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (<a href='/en-us/products/biochemicals/ionomycin-ca2-salt-ca2-ionophore-ab120116'>ab120116</a>) for 2 hours at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 15 kDa
Observed band size: 15 kDa
false
Exposure time: 1s
- WB
Lab

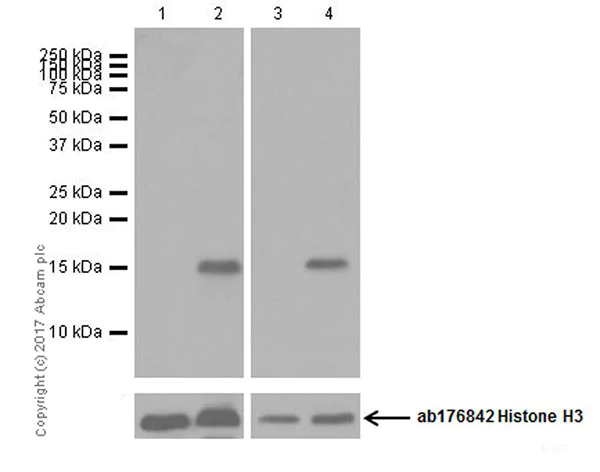

Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (AB219406)
Blocking/Dilution buffer : 5% BSA/TBST.
All lanes:
Western blot - Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406) at 1/5000 dilution
Lane 1:
Whole cell lysate from NIH/3T3 (Mouse embryonic fibroblast cell line) transfected with empty vector with GFP tag (vector control), then treated with 10mM CaCl2 for 2 hours at 10 µg
Lane 2:
Whole cell lysate from NIH/3T3 transfected with PADI4 (WT) then treated with 10mM CaCl2 for 2 hours at 10 µg
Lane 3:
Whole cell lysate from C6 (Rat glial tumor cell line) transfected with empty vector with GFP tag (vector control) then treated with 10mM CaCl2 and 10μM Ionomycin (<a href='/en-us/products/biochemicals/ionomycin-ca2-salt-ca2-ionophore-ab120116'>ab120116</a>) for 2 hours at 10 µg
Lane 4:
C6 transfected with PADI4 (WT), then treated with 10mM CaCl2 and 10μM Ionomycin (<a href='/en-us/products/biochemicals/ionomycin-ca2-salt-ca2-ionophore-ab120116'>ab120116</a>) for 2 hours at 10 µg
Secondary
All lanes:
Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution
Predicted band size: 15 kDa
Observed band size: 15 kDa
false
Exposure time: 1s
Related conjugates and formulations (2)
-
Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] - BSA and Azide free
-
665 Alexa Fluor® 647
Alexa Fluor® 647 Anti-Histone H3 (citrulline R8) antibody [EPR20358-13]
Reactivity data
Product details
What is this antibody validated in?
Anti-Histone H3 (citrulline R8) antibody [EPR20358-13] (ab219406) is a rabbit recombinant monoclonal antibody and is validated for use in Western Blot (WB), Flow Cytometry (Intra), Flow Cytometry (Flow Cyt), Immunoprecipitation (IP), Immunocytochemistry/immunofluorescence (ICC/IF), ELISA in Human, Mouse, Rat samples.
What is the molecular weight of Histone H3?
Anti-Histone H3 (citrulline R8) [EPR20358-13] (ab219406) specifically detects a band for Histone H3 (UniProt: P68431) at a molecular weight of 15kDa.
Other related products
We have a range of other formats of antibody clone [EPR20358-13] also available for your convenience: ab219406, Carrier free - ab232939, Alexa Fluor® 647 - ab300306
Trial sizes available!
Test your antibody or perform pre-screening before committing to a larger quantity. Sold in 20µl. Discover our selection of trial-size antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage duration
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
Product protocols
- Visit the General protocols
- Visit the Troubleshooting
Treatment Conditions
Chemical treatment is required for detection of endogenous citrullinated proteins in cell lines. PADs (including PADI2 and PADI4) are the enzymes that hydrolyze arginine to citrulline, in the presence of Ca2+ and ionomycin. Please refer to PMID: 26360112
Controls:
- Mock (no transfection)
- Transfection reagent–only control
- Empty vector control
- Vehicle control for chemical treatment
Generation of PADI2 or PADI4 overexpression cell line and treatment with CaCl2/Ionomycin
1. Prior to transfection with PADI2 or PADI4 expression vector, seed cells in complete medium and place in a 37ºC, 5% CO2 incubator for 24 hours or until cells reach 70-80% confluence.
For a single T-175 flask we recommend seeding the following common cell lines as follows in 30 mL media:
- HEK-293T: 1x107 cells
- MCF7: 2.5-4x106 cells
- NIH3T3: 4-5x106 cells
- C6: 3-4x106 cells
2. Once cells have reached confluence, prepare the PADI2 or PADI4 expression vector for transfection using your preferred method (PMID: 33976969).
3. 24-48 hours after transfection, remove the medium from the cells and replace with fresh complete medium containing 10 mM CaCl2 (ab285384) and 10 uM Ionomycin (ab120116) and incubate for 2-4 hours.
Key Considerations:
- For alternative cell lines, you should confirm the transfectability, growth rate, and sensitivity of the cell line to the planned chemical treatment. Incubation times and treatment length may need to be adjusted.
Western Blot Conditions
Recommended Gel Type: 4-12% Bis-Tris
Running Buffer: MES
Primary Concentration: 1/5000-1/10000 dilution
Primary Incubation: 4°C overnight or room temperature for 1 hour
Blocking Conditions: 5% BSA
Blocking Time: Room temperature for 1hr
Positive Controls: Cell line overexpressing PADI4 and treated with CaCl2/Ionomycin
Negative controls: Cell line overexpressing PADI4
Lysate preparation protocol for western blotting | Abcam
Sample preparation of membrane-bound and nuclear proteins for western blot | Abcam
Western blot protocol for low molecular weight proteins
Troubleshooting tips for western blot | Abcam
ICC Conditions
Primary Concentration: 1/100 dilution
Primary Incubation: 4°C overnight or room temperature for 2 hours
Fixation: 4% PFA
Fixation time: 10-20 minutes at room temperature
Permeabilization: 0.1% Triton X-100
Permeabilization Time: 2-5 minutes at room temperature
Blocking: 2-10% serum from secondary antibody host e.g. ab7481 or ab7475
Blocking Time: 1-2 hours at room temperature
Positive Controls: Cell line overexpressing PADI4 and treated with CaCl2/Ionomycin
Negative controls: Cell line overexpressing PADI4
Secondary only control:
Immunocytochemistry protocol | Abcam
FC Conditions
Primary Concentration: 1/500 dilution
Fixation: 4% PFA
Positive Controls: Cell line overexpressing PADI4 and treated with CaCl2/Ionomycin
Negative controls: Cell line overexpressing PADI4
Flow Cytometry Protocol | Abcam
Flow cytometry troubleshooting - data optimization | Abcam
Target data
