Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free

16 product images

•

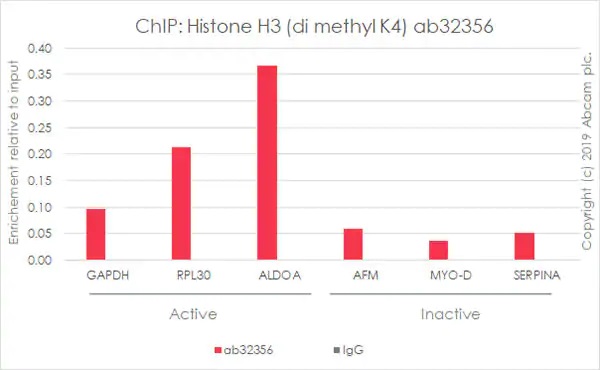

  ChIP - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

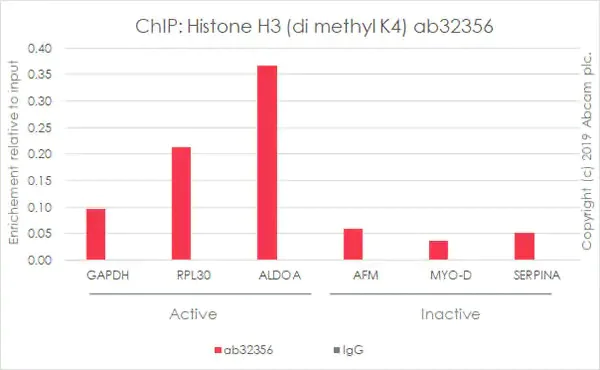

  Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10 minutes. The ChIP was performed with 25μg of chromatin, 2μg of Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 (red), and 20μl of Anti Rabbit IgG sepharose beads. 2μg of rabbit normal IgG was added to the beads control (grey). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach). Primers and probes are located in the first kb of the transcribed region.

•

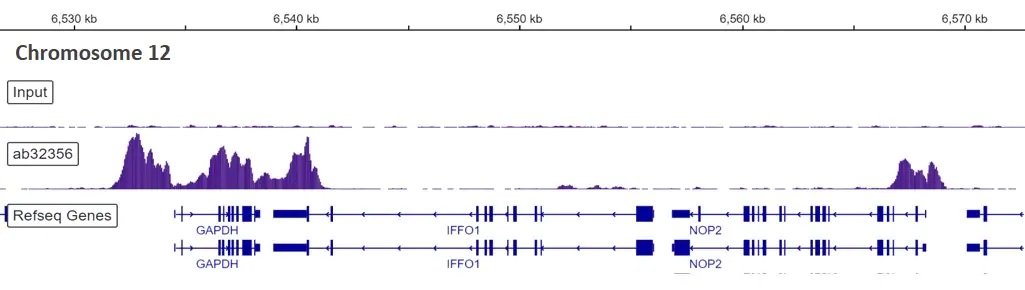

  ChIP-sequencing - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

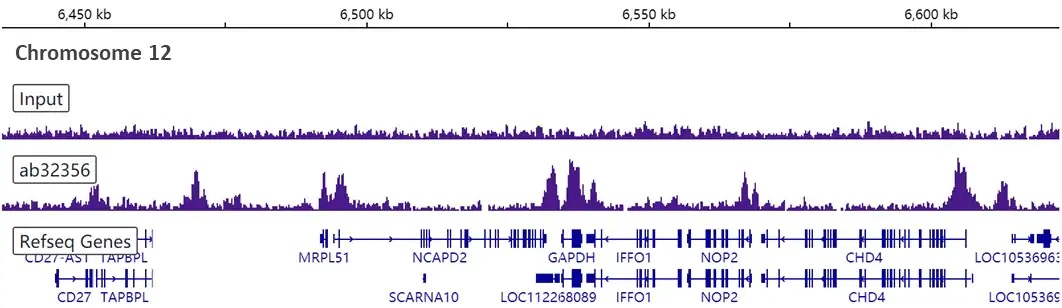

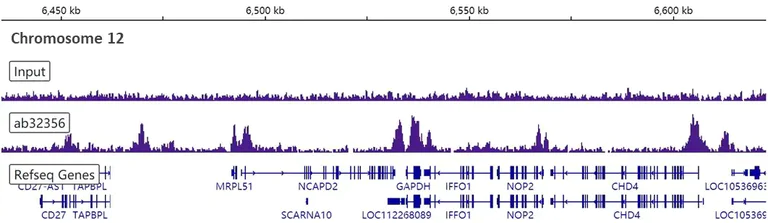

  Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 107 cells and 4 μg of Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356). ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads.
  Additional screenshots of mapped reads can be downloaded here.

•

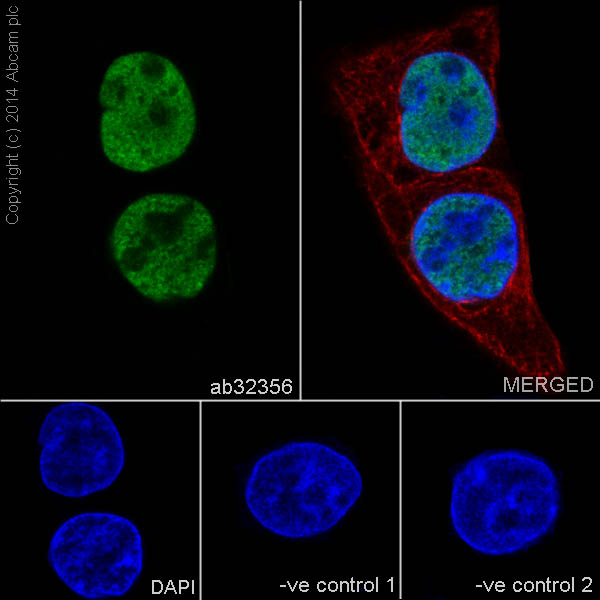

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

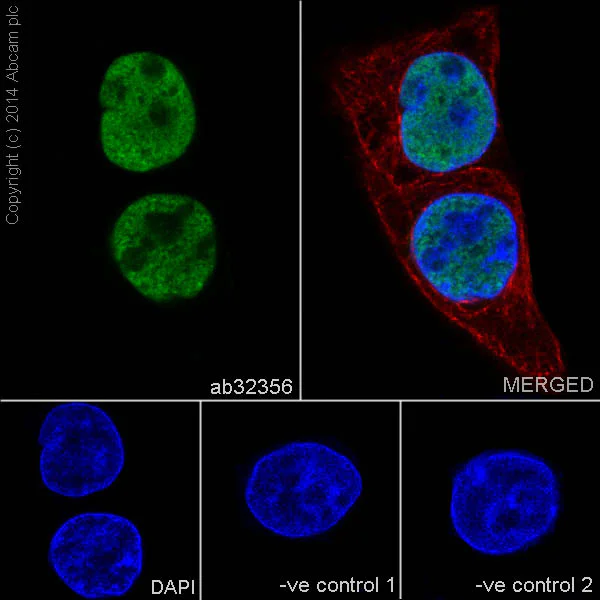

  Immunocytochemistry/Immunofluorescence analysis of HepG2 cells labelling Histone H3 (di methyl K4) with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at a dilution of 1/1000. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody. The cells were co-stained with Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291, a mouse anti-tubulin (1/1000) using Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000) as the secondary antibody. Nuclei counterstained with DAPI (blue).

  Control 1: primary antibody (1/1000) and secondary antibody, Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/1000).

  Control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (1/1000) and secondary antibody, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000).

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

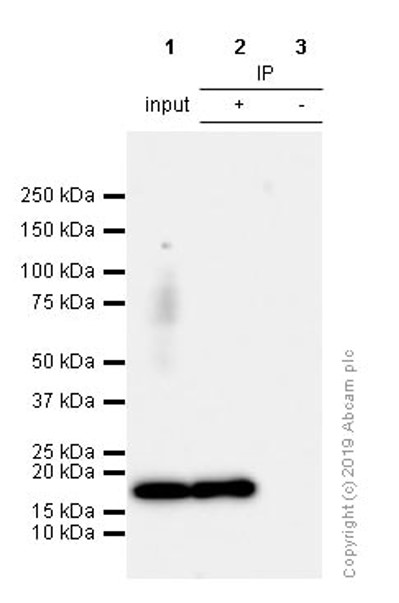

  Immunoprecipitation - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).


  Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 (purified) at 1/30 dilution (20 μg/ml) immunoprecipitating Histone H3 di methyl K4 in HepG2 whole cell lysate.

  Lane 1 (input): HepG2 (human hepatocellular carcinoma epithelial cell) whole cell lysate 10μg
  Lane 2 (+): Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 & HepG2 whole cell lysate
  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 in HepG2 whole cell lysate
  For western blotting, Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at 1/500 and veriBlot for IP secondary antibody (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/1000 dilution.

  Blocking and diluting buffer: 5% NFDM /TBST.

  All lanes: Immunoprecipitation - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  Predicted band size: 15 kDa

•

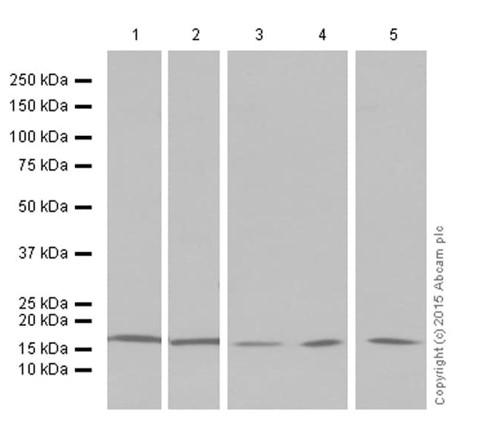

  Western blot - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

  All lanes: Western blot - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324) at 1/2000 dilution

  Lane 1: L6 (Rat skeletal muscle cell line) whole cell lysate at 20 µg

  Lane 2: NIH/3T3 (Mouse embryonic fibroblast cell line) whole cell lysate at 20 µg

  Lane 3: COS-1 (African green monkey kidney fibroblast-like cell line) whole cell lysate at 20 µg

  Lane 4: UMNSAH/DF-1 (Transformed chicken embryonic fibroblast cell line) whole cell lysate at 20 µg

  Lane 5: MDBK (Bovine kidney cell line) whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/1000 dilution

  Predicted band size: 15 kDa

  Observed band size: 17 kDa

•

  Flow Cytometry (Intracellular) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

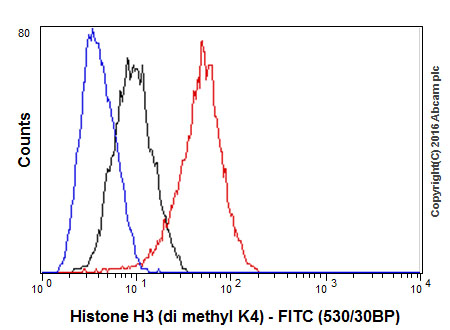

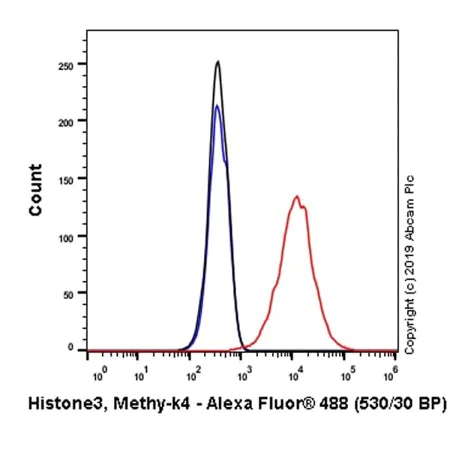

  Intracellular Flow Cytometry analysis of HepG2 (human hepatocellular carcinomal) cells labeling Histone H3 di methyl K4 with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at 1/500 dilution (1.17μg/ml) (Red). Cells were fixed with 4% paraformaldehyde and permeabilised with 90% methanol. A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) / Black. Unlabeled control - Unlabelled cells / blue.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

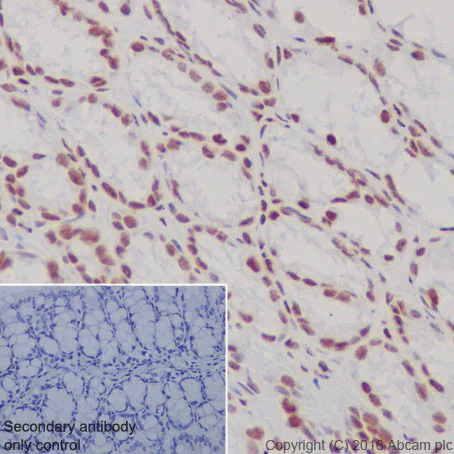

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of mouse colon tissue labelling Histone H3 (di methyl K4) with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at a dilution of 1/800. Antigen retrieval was performed using Tris/EDTA buffer, pH9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG H&L was used as the secondary antibody (1/500). Counter stained with hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

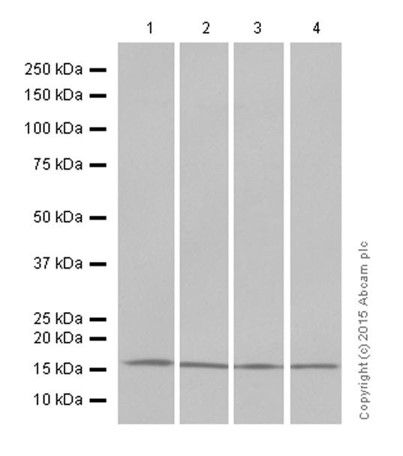

  Western blot - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

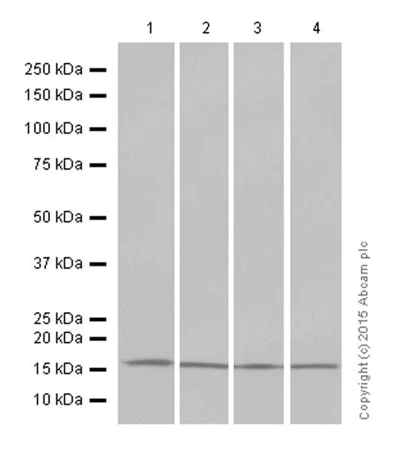

  All lanes: Western blot - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324) at 1/10000 dilution

  Lane 1: HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate at 20 µg

  Lane 2: HEK-293 (Human epithelial cell line from embryonic kidney) whole cell lysate at 20 µg

  Lane 3: SH-SY5Y (Human neuroblastoma cell line from bone marrow) whole cell lysate at 20 µg

  Lane 4: C6 (Rat glial tumor cell line) whole cell lysate at 20 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

  Predicted band size: 15 kDa

•

  ChIP-sequencing - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).
  Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 30 μg of chromatin and 4 μg of Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356). ChIP DNA was sequenced on the Illumina NextSeq 500 to a depth of 30 million reads. ChIP-Seq validation performed by Active Motif, Carlsbad, CA.
  Additional screenshots of mapped reads can be downloaded here.

•

  Flow Cytometry (Intracellular) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  Intracellular Flow Cytometry analysis of HeLa cells labelling Histone H3 (di methyl K4) with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at 1/150 (red). Cells were fixed with 80% methanol. An Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. Black - Isotype control, rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730). Blue - Unlabelled control, cells without incubation with primary and secondary antibodies.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of rat spleen tissue labelling Histone H3 (di methyl K4) with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at a dilution of 1/800. Antigen retrieval was performed using Tris/EDTA buffer, pH9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG H&L was used as the secondary antibody (1/500). Counter stained with hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

  Flow Cytometry (Intracellular) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

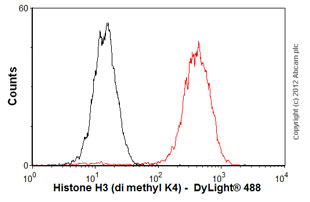

  Overlay histogram showing HeLa cells stained with unpurified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was a goat anti-rabbit DyLight^® 488 (IgG; H+L) (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) at 1/500 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human cervical carcinoma tissue labelling Histone H3 (di methyl K4) with purified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 at a dilution of 1/800. Antigen retrieval was performed using Tris/EDTA buffer, pH9. Goat Anti-Rabbit IgG H&L (HRP) ab97051, a HRP-conjugated goat anti-rabbit IgG H&L was used as the secondary antibody (1/500). Counter stained with hematoxylin.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  ICC/IF image of unpurified Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 stained HepG2 cells. The cells were 100% methanol fixed (5 min) and then incubated in 1%BSA / 10% normal goat serum / 0.3M glycine in 0.1% PBS-Tween for 1h to permeabilise the cells and block non-specific protein-protein interactions. The cells were then incubated with the antibody (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 , 5µg/ml) overnight at +4°C. The secondary antibody (green) was a goat anti-rabbit DyLight® 488 (IgG - H&L, pre-adsorbed) (Goat Anti-Rabbit IgG H&L (DyLight® 488) preadsorbed ab96899) used at a 1/250 dilution for 1h. Alexa Fluor® 594 WGA was used to label plasma membranes (red) at a 1/200 dilution for 1h. DAPI was used to stain the cell nuclei (blue) at a concentration of 1.43µM.



  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).

•

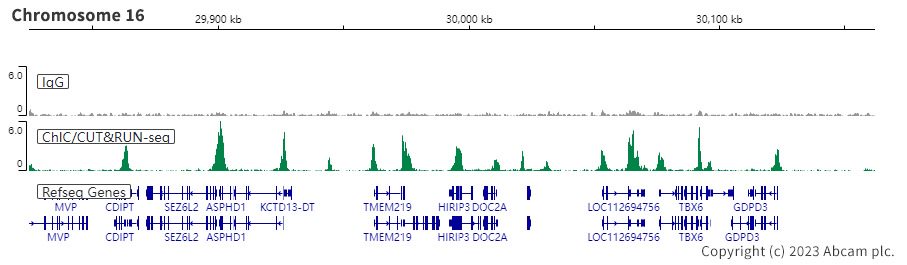

  ChIC/CUT&RUN sequencing - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

  This data was developed using the same antibody clone in a different buffer formulation (Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356).
  ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (Human cervix adenocarcinoma epithelial cell line) cells and 5 µg of Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 [Y47]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 is also shown.
  Additional screenshots of mapped reads can be found in the Protocol booklet in the Support and downloads section.
  The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods.

•

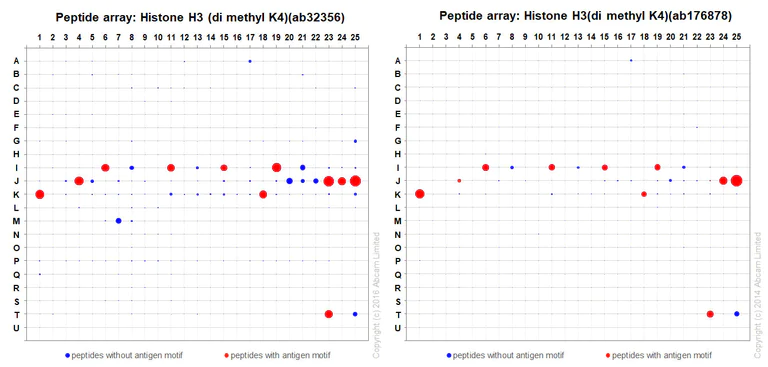

  Peptide Array - Anti-Histone H3 (di methyl K4) antibody [Y47] - BSA and Azide free (ab173324)

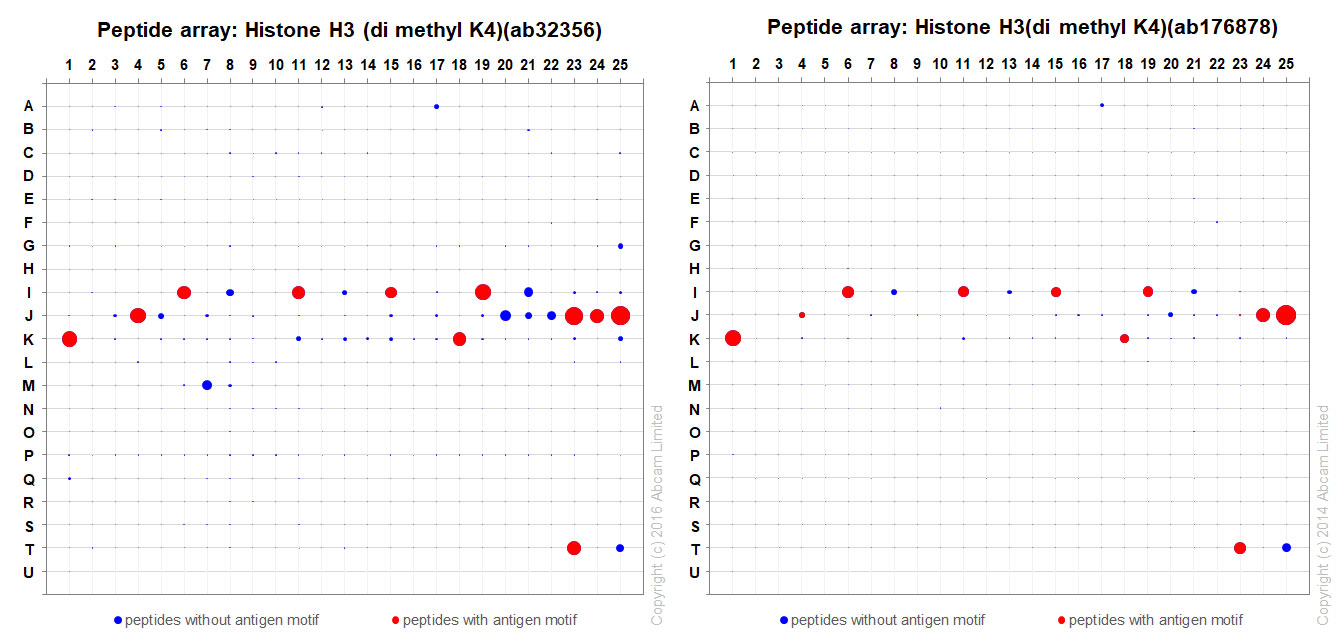

  Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 or Anti-Histone H3 (di methyl K4) antibody [EPR17707] - ChIP Grade ab176878 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate). Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as the area under the curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity. Peptide Array, Anti-Histone H3 (di methyl K4) antibody [Y47] - ChIP Grade ab32356 binds to Histone H3 (di methyl K4) on Peptide Array but shows some weak non-specific binding to other Histone H3 modifications. We recommend Anti-Histone H3 (di methyl K4) antibody [EPR17707] - ChIP Grade ab176878 for Peptide Array of Histone H3 (di methyl K4).
