Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

IHC image of ab32388 staining Histone H3 in Human normal colon formalin fixed paraffin embedded tissue* sections, performed on a Leica Bond. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab32388, 0.1ug/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. No primary antibody was used in the negative control (shown on the inset).

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

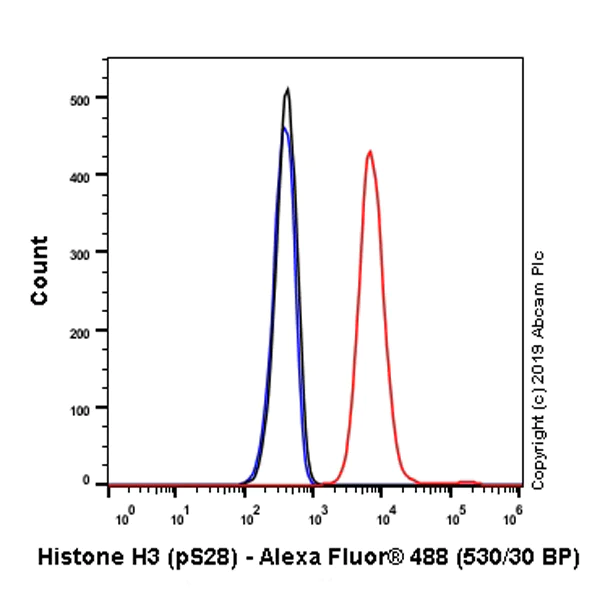

Overlay histogram showing HeLa cells stained with ab32388 (red line). The cells were fixed with 4% paraformaldehyde and then permeabilized with 90% methanol. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32388, 1/1200 dilution, 1.02 μg/ml) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (ab172730) (1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

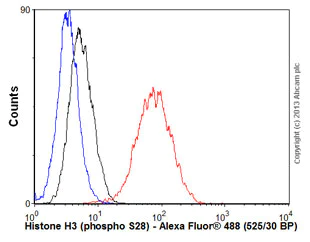

Overlay histogram showing HeLa cells stained with ab32388 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab32388, 1/100 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

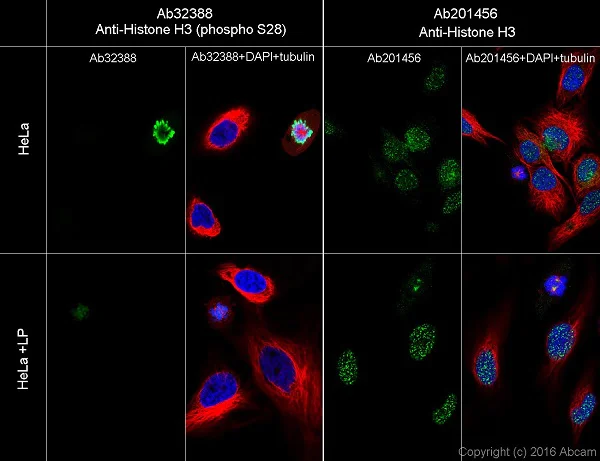

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% tritonX-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells, LP starved and non-starved, labeling anti-Histone H3 (phospho S28) with ab32388 at 1/100 dilution followed by Goat anti-Rabbit secondary IgG AlexaFluor®488 (ab150077) secondary antibody at 1/1000 dilution (green).

Confocal image showing nuclear staining on M phase of HeLa cells, then the signal decreased after LP treatment.

For the pan antibody, there was no great difference after LP treatment. The data showed mostly nuclear staining

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• ChIP

Unknown

ChIP - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min.
The ChIP was performed with 25 µg of chromatin, 5 µg of ab32388 (red), and 20 µl of Protein A/G sepharose beads. No antibody was added to the beads control (gray). The immunoprecipitated DNA was quantified by real time PCR (Sybr green approach).
Primers and probes are located in the first kb of the transcribed region.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• IP

Lab

Immunoprecipitation - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

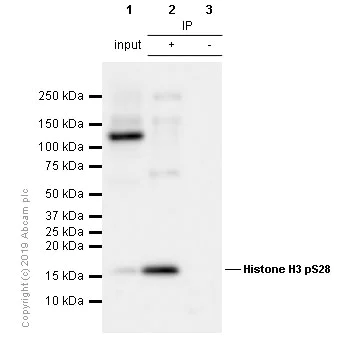

Western blot was performed on the immunoprecipitate using ab32388 at 1 : 500 dilution (2.444 μg/ml). VeriBlot for IP secondary antibody (HRP) (ab131366) at 1 : 1000 dilution.

Blocking/Diluting buffer and concentration : 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

All lanes:

Immunoprecipitation - Anti-Histone H3 (phospho S28) antibody [E191] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h3-phospho-s28-antibody-e191-chip-grade-ab32388'>ab32388</a>)

Lane 1:

HeLa (human cervix adenocarcinoma epithelial cell) treated with 0.5µM Nocodazole for 24h whole cell lysate at 10 µg

Lane 2:

<a href='/en-us/products/primary-antibodies/histone-h3-phospho-s28-antibody-e191-chip-grade-ab32388'>ab32388</a> IP in Nocodazole treated HeLa whole cell lysate

Lane 3:

Rabbit monoclonal IgG (<a href='/en-us/products/primary-antibodies/rabbit-igg-monoclonal-epr25a-isotype-control-ab172730'>ab172730</a>) instead of <a href='/en-us/products/primary-antibodies/histone-h3-phospho-s28-antibody-e191-chip-grade-ab32388'>ab32388</a> in nocodazole treated HeLa whole cell lysate

Predicted band size: 15 kDa

Observed band size: 17 kDa

false

• Dot

Lab

Dot Blot - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

Dot blot analysis of Histone H3 (phospho S28) labeled with ab32388 at 1/1000 dilution. Lane 1 : Histone H3 (phospho S28) peptide a Lane 2 : Histone H3 (phospho S28) peptide c1 Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated (ab97051) was used as secondary antobody at 1/100000 dilution. Blocking/Dilution buffer : 5% NFDM/TBST. Exposure time : 180 minutes. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• Dot

Unknown

Dot Blot - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

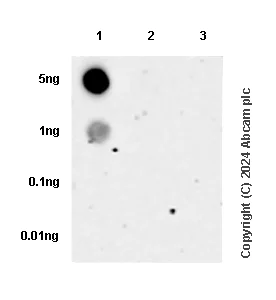

Dot blot performed using ab32388 at a dilution of 1/100. Lane 1 - Unmodified H3 peptide. Lane 2 - H3S28ph peptide. Lane 3 - H3.3S28ph peptide. Lane 4 - H3.3S31ph peptide. A HRP conjugated goat anti-rabbit (H+L) was used as the secondary antibody at a dilution of 1/2500. The exposure time was 3 minutes and the dilution and blocking buffer used were 5% NFDM/TBST.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).

• PepArr

Lab

Peptide Array - Anti-Histone H3 (phospho S28) antibody [E191] - BSA and Azide free (AB215532)

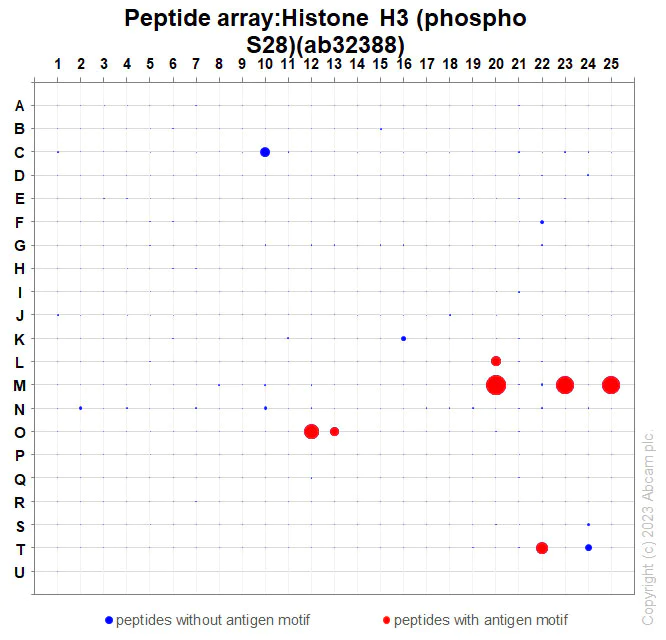

ab32388 (0.02μg/mL) was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate). A Goat Anti-Rabbit IgG, (H+L), Fluo 647nm conjugated at 1/50000 was used as the secondary antibody. Protein Array Washing Buffer, 2*10 mins and 2*5 mins. Blocking buffer was 5% BSA in TBST and Innoscan 710 scanner was used. Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as the area under the curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab32388).
