Anti-Histone H3 (symmetric di methyl R17) antibody [EPR17249]

3 product images

•

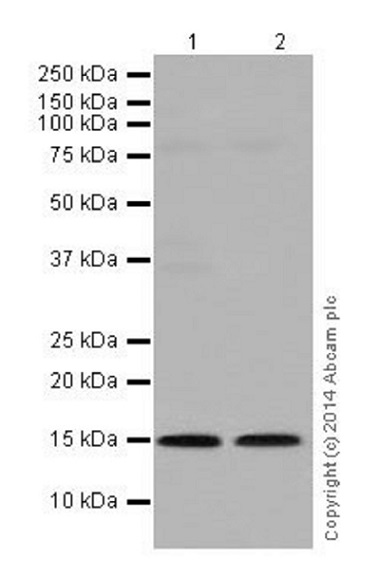

  Western blot - Anti-Histone H3 (symmetric di methyl R17) antibody [EPR17249] (ab177224)

  Blocking/Dilution buffer: 5% BSA/TBST.

  All lanes: Western blot - Anti-Histone H3 (symmetric di methyl R17) antibody [EPR17249] (ab177224) at 1/500 dilution

  Lane 1: HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

  Lane 2: NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysate at 10 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

  Predicted band size: 15 kDa

  Observed band size: 15 kDa

•

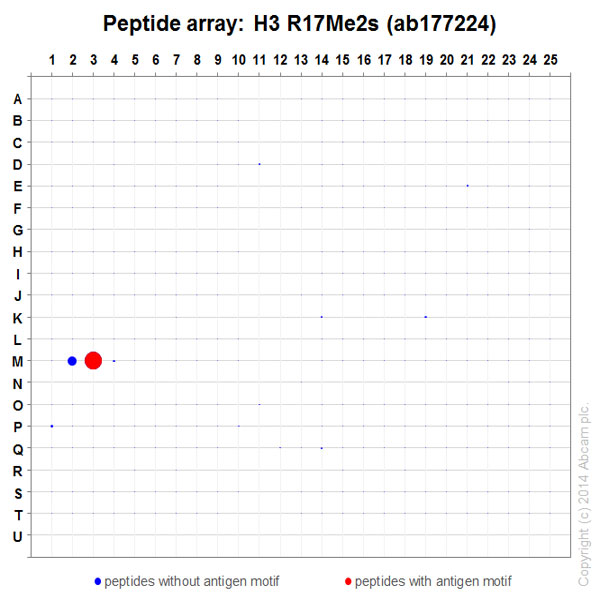

  Peptide Array - Anti-Histone H3 (symmetric di methyl R17) antibody [EPR17249] (ab177224)

  ab17224 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
  Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
  The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Support & downloads section.

•

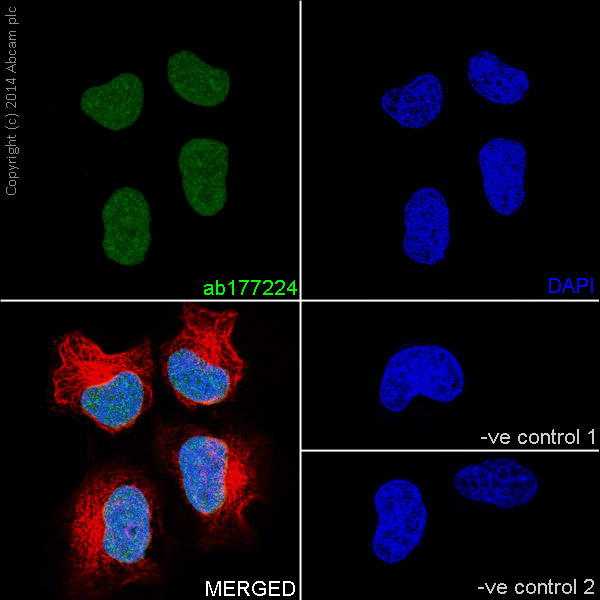

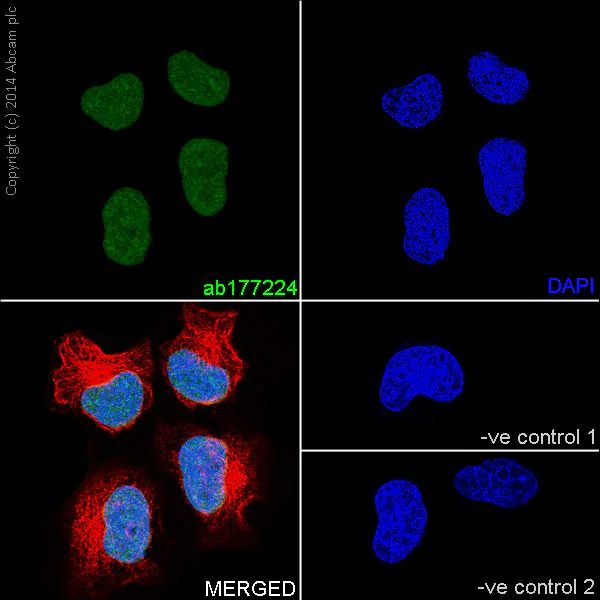

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H3 (symmetric di methyl R17) antibody [EPR17249] (ab177224)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H3 (symmetric di methyl R17) with ab177224 at 1/120 dilution, followed by Goat anti-rabbit Alexa Fluor® 488 (IgG) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/400 dilution (green). Confocal image showing nuclear staining on HeLa cells. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (goat anti-mouse AlexaFluor®594 secondary) at 1/500 dilution (red).
  The negative controls are as follows;
  -ve control 1: ab177224 at 1/60 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (goat anti-mouse AlexaFluor®594 secondary) at 1/500 dilution.
  -ve control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 (goat anti rabbit Alexa Fluor®488 (IgG H&L) at 1/400 dilution.
