Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade

7 product images

•

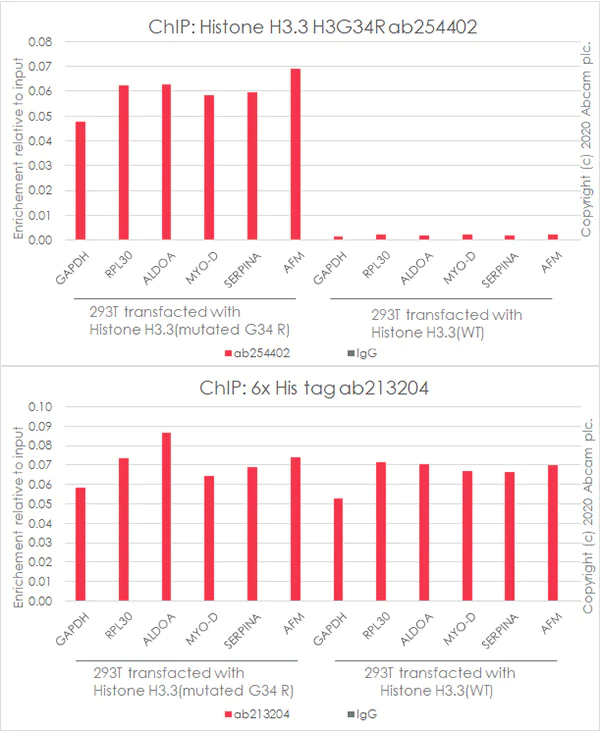

  ChIP - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Chromatin was prepared from HEK-293T transfected with Histone H3.3(mutated G34 R) and HEK-293T transfacted with Histone H3.3(WT) cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min.
  The ChIP was performed with 25 μg of chromatin, 2 μg of ab254402 (red), or 2 μg of rabbit normal IgG Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730 (gray) and 25 μl of Protein A/G Dynabeads. The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Immunohistochemical analysis of paraffin-embedded human giant cell tumor of bone tissue labeling Histone H3.3 (mutated G34 R) with ab254402 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Nuclear staining on human giant cell tumor of bone (PMID: 29241742). The section was incubated with ab254402 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins

•

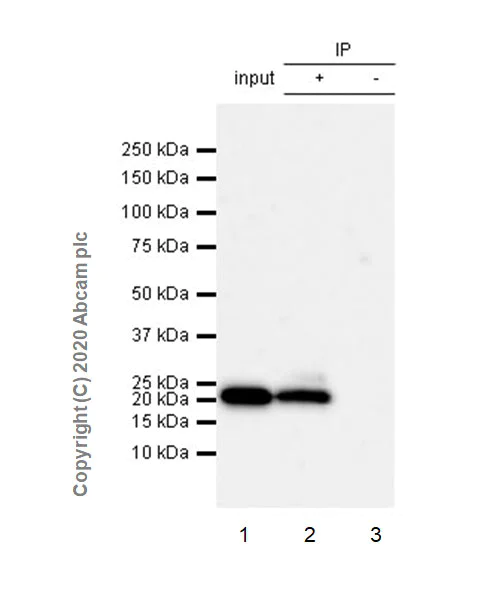

  Immunoprecipitation - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Histone H3.3 (mutated G34 R) was immunoprecipitated from 0.35 mg HEK-293T (human embryonic kidney) (transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®) whole cell lysate with ab254402 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab254402 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(VeriBlot for IP Detection Reagent (HRP) ab131366) was used at 1/5000 dilution.


  Lane 1: HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®, whole cell lysate 10 ug

  Lane 2: ab254402 IP in HEK-293T transfected with Histone H3.3 G34R expression vector containing a myc-His-tag® whole cell lysate

  Lane 3: Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab254402 in HEK-293T transfected with Histone H3.3 G34R expression vector containing a myc-His-tag® whole cell lysate

  Blocking and dilution buffer and concentration: 5% NFDM/TBST.

  Exposure time: 41 seconds.

  All lanes: Immunoprecipitation - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Predicted band size: 15 kDa

  Observed band size: 20 kDa

•

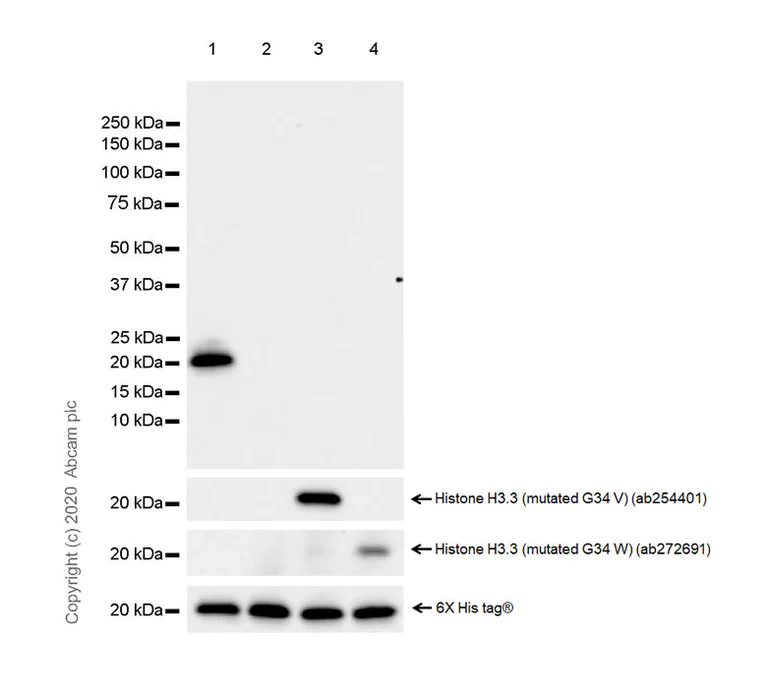

  Western blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Blocking and diluting buffer and concentration: 5% NFDM/TBST.


  Exposure time: 26 seconds.

  All lanes: Western blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402) at 1/1000 dilution

  Lane 1: HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

  Lane 2: HEK-293T transfected with Histone H3.3 (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

  Lane 3: HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34V expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

  Lane 4: HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34W expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

  Secondary

  All lanes: Western blot - Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution

  Predicted band size: 15 kDa

  Observed band size: 20 kDa

•

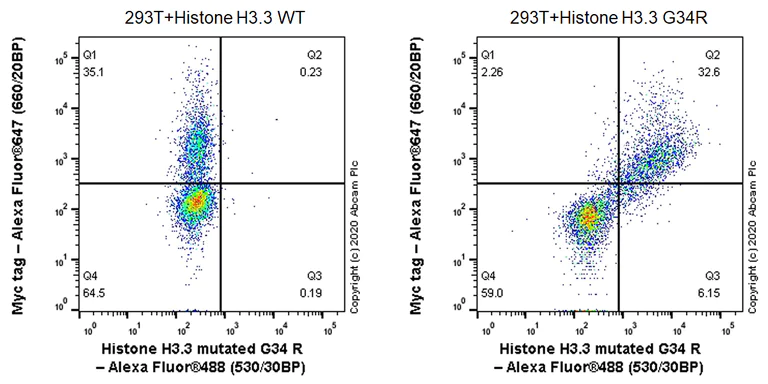

  Flow Cytometry (Intracellular) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HEK-293T (Human embryonic kidney epithelial cell) (transfected with myc-tagged Histone H3.3 WT expression vector) (Left) or myc-tagged Histone H3.3 G34R expression vector (Right) cells labelling Histone H3.3 (mutated G34 R) with ab254402 at 1/5000 dilution (0.01ug) (Both panels). A Goat anti rabbit IgG (Alexa Fluor^® 488, Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution was used as the secondary antibody.


•

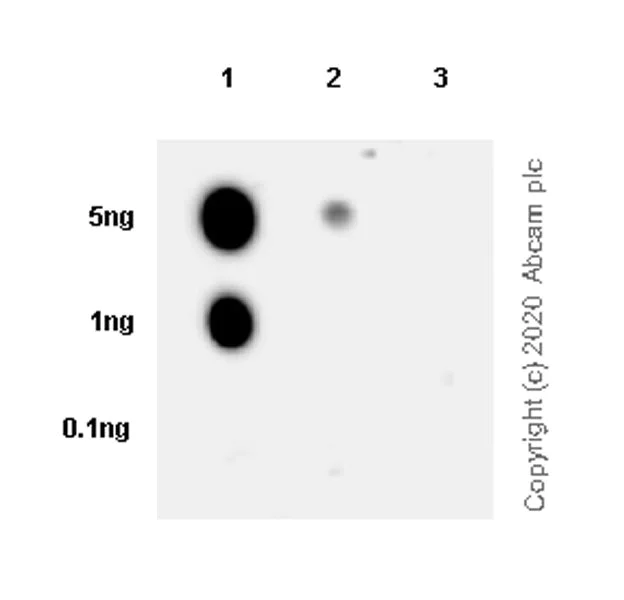

  Dot Blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Dot blot analysis of Histone H3.3 (mutated G34 R) labeled with ab254402 at 1/1000 dilution.


  Lane 1: Histone H3.3 H3G34R peptide (aa28-40).
  Lane 2: Histone H3.3 H3G34R peptide (aa26-36).
  Lane 3: Histone H3.3 WT peptide (aa26-40).

  Goat Anti-Rabbit IgG H&L (HRP) (Goat Anti-Rabbit IgG H&L (HRP) ab97051) at 1/100000 dilution was used as secondary antibody.

  Blocking and dilution buffer: 5% NFDM/TBST.

  Exposure time: 3 minutes.

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (ab254402)

  Immunohistochemical analysis of paraffin-embedded human testis tissue labeling Histone H3.3 (mutated G34 R) with ab254402 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101). Negative control: no staining on human testis. The section was incubated with ab254402 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101).

  Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.
