Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

Immunohistochemical analysis of paraffin-embedded Human giant cell tumor of bone tissue labeling Histone H3.3 (mutated G34 R) with ab254402 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Nuclear staining on human giant cell tumor of bone (PMID : 29241742). The section was incubated with ab254402 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

Immunohistochemical analysis of paraffin-embedded Human testis tissue labeling Histone H3.3 (mutated G34 R) with ab254402 at 1/2000 dilution followed by a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Negative control : no staining on human testis. The section was incubated with ab254402 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is a ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

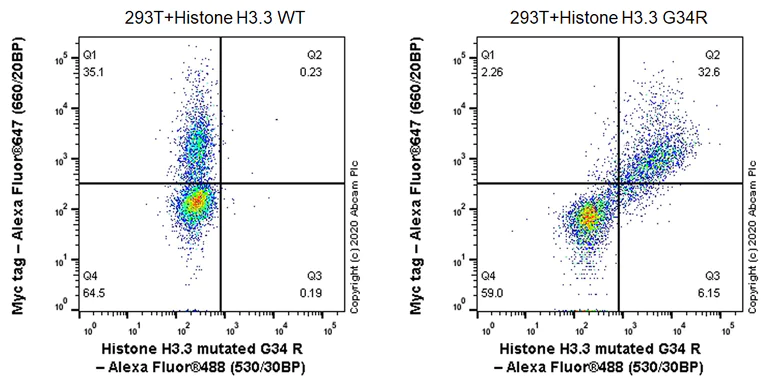

Intracellular flow cytometric analysis of 4% paraformaldehyde fixed, 90% methanol permeabilized HEK-293T (Human embryonic kidney epithelial cell) (transfected with myc-tagged Histone H3.3 WT expression vector) (Left) or myc-tagged Histone H3.3 G34R expression vector (Right) cells labelling Histone H3.3 (mutated G34 R) with ab254402 at 1/5000 dilution (0.01ug) (Both panels). A Goat anti rabbit IgG (Alexa Fluor^®488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

• ChIP

Lab

ChIP - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

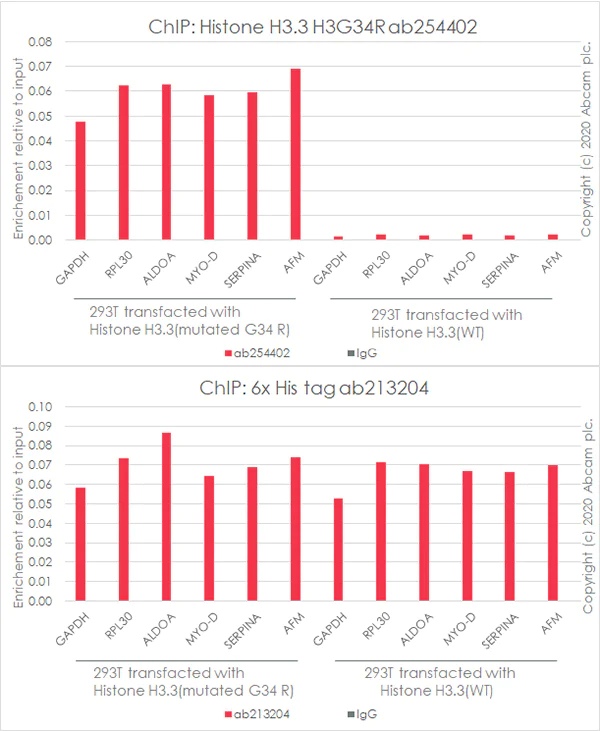

Chromatin was prepared from 293T transfacted with Histone H3.3(mutated G34 R) and 293T transfacted with Histone H3.3(WT)
cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min.
The ChIP was performed with 25 μg of chromatin, 2 μg of ab254402 (red), or 2 μg of rabbit normal IgG ab172730 (gray) and 25 μl of Protein A/G Dynabeads. The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

• IP

Unknown

Immunoprecipitation - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

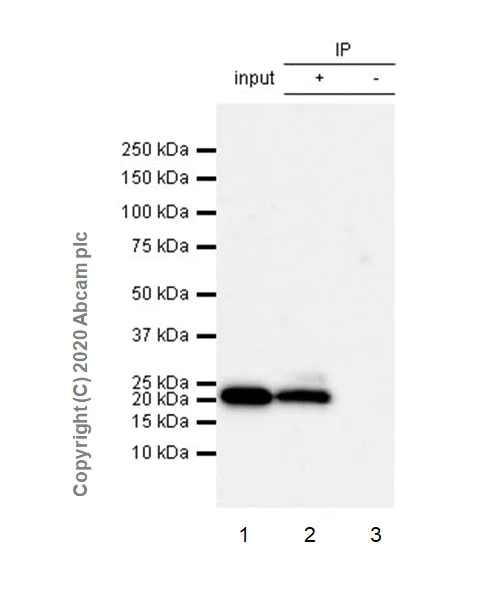

Histone H3.3 (mutated G34 R) was immunoprecipitated from 0.35 mg HEK-293T (human embryonic kidney) (transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®) whole cell lysate with ab254402 at 1/30 dilution (2ug in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab254402 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®, whole cell lysate 10 ug

Lane 2 : ab254402 IP in HEK-293T transfected with Histone H3.3 G34R expression vector containing a myc-His-tag® whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab254402 in HEK-293T transfected with Histone H3.3 G34R expression vector containing a myc-His-tag® whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 41 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

All lanes:

Immunoprecipitation - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h33-mutated-g34r-antibody-epr23519-91-chip-grade-ab254402'>ab254402</a>)

Predicted band size: 15 kDa

Observed band size: 20 kDa

false

• WB

Lab

Western blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

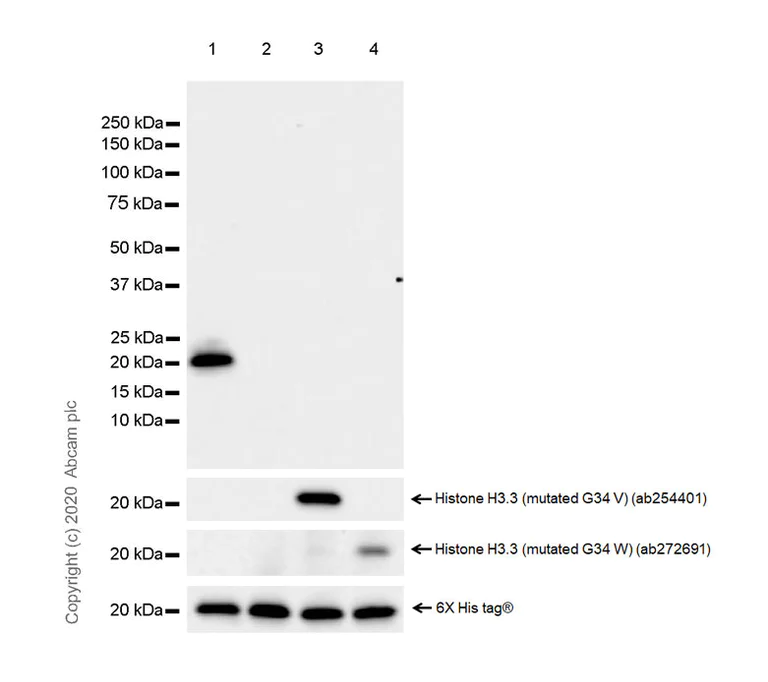

Blocking and diluting buffer and concentration : 5% NFDM/TBST.

Exposure time : 26 seconds .

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).

All lanes:

Western blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h33-mutated-g34r-antibody-epr23519-91-chip-grade-ab254402'>ab254402</a>) at 1/1000 dilution

Lane 1:

HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34R expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 2:

HEK-293T transfected with Histone H3.3 (WT) expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 3:

HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34V expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Lane 4:

HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34W expression vector containing a myc-His-tag®, whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 15 kDa

Observed band size: 20 kDa

false

• Dot

Lab

Dot Blot - Anti-Histone H3.3 (mutated G34R) antibody [EPR23519-91] - ChIP Grade - BSA and Azide free (AB273635)

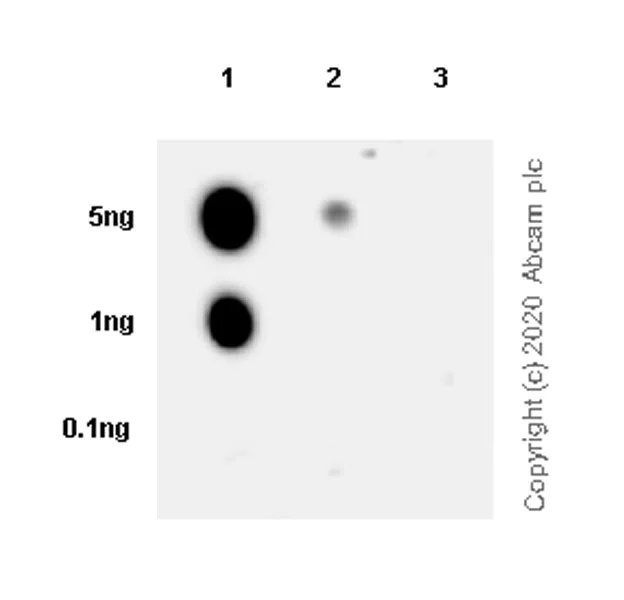

Dot blot analysis of Histone H3.3 (mutated G34 R) labeled with ab254402 at 1/1000 dilution.

Lane 1 : Histone H3.3 H3G34R peptide (aa28-40).
Lane 2 : Histone H3.3 H3G34R peptide (aa26-36).
Lane 3 : Histone H3.3 WT peptide (aa26-40).

Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/100000 dilution was used as secondary antibody.

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254402).
