Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free

• IHC-P

Unknown

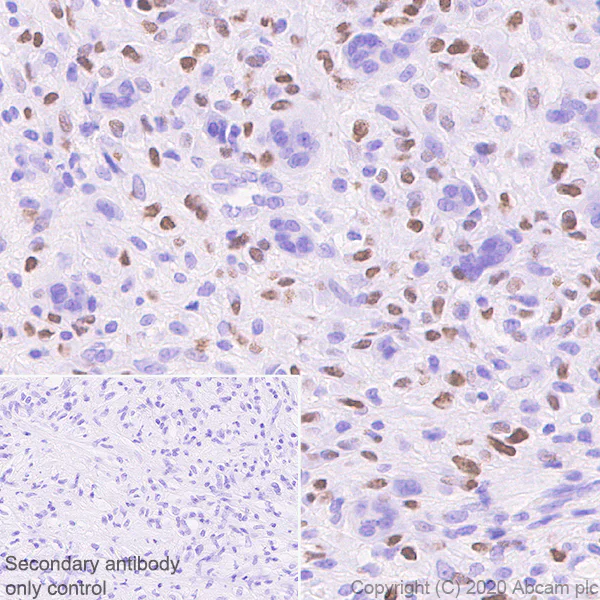

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Immunohistochemical analysis of paraffin-embedded human giant cell tumor of bone tissue labeling Histone H3.3(mutated G34 V) with ab254401 at 1/1000 dilution (0.542 μg/ml) dilution followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101). Positive staining on human giant cell tumor of bone. (PMID : 29241742). The section was incubated with ab254401 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

• Flow Cyt (Intra)

Unknown

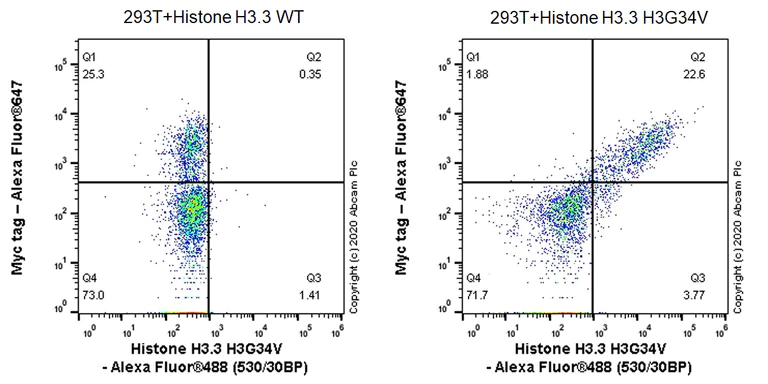

Flow Cytometry (Intracellular) - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed, 90% methanol-permeabilized 293T (Human embryonic kidney epithelial cell) transfected with myc tagged Histone H3.3 WT construct (Left panel) and myc-tagged Histone H3.3 H3G34V construct (Right panel) cells labelling Histone H3.3 (mutated G34 V) with ab254401 at 1/500 dilution (0.1μg). A Goat anti rabbit IgG (Alexa Fluor^® 488, ab150077) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

• IHC-P

Unknown

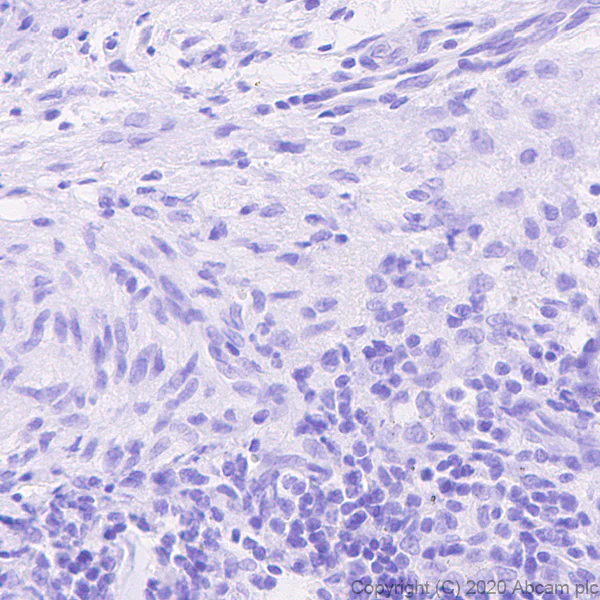

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Immunohistochemical analysis of paraffin-embedded human chondroblastoma tissue labeling Histone H3.3(mutated G34 V) with ab254401 at 1/1000 dilution (0.542 μg/ml) dilution followed by ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Negative control : No staining on human chondroblastoma (PMID : 29241742).

The section was incubated with ab254401 for 30 mins at room temperature. The immunostaining was performed on a Leica Biosystems BOND^® RX instrument. Counterstained with Hematoxylin.

Secondary antibody only control : Secondary antibody is ready to use Rabbit specific IHC polymer detection kit HRP/DAB (ab209101).

Heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0, epitope retrieval solution2) for 20 mins.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

• ICC/IF

Unknown

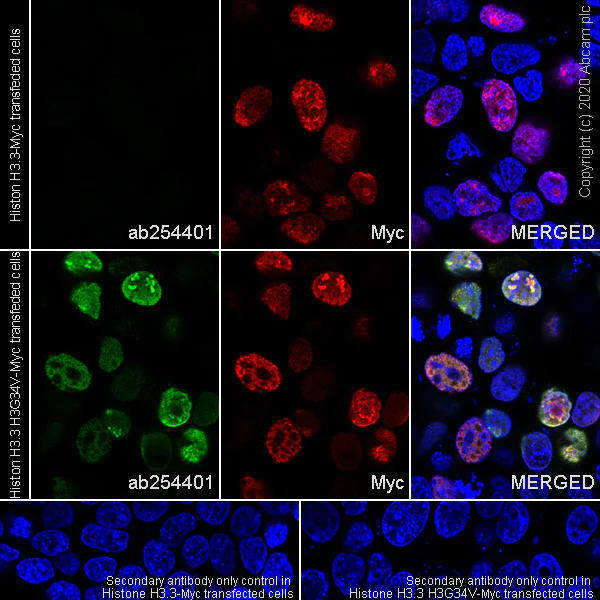

Immunocytochemistry/ Immunofluorescence - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized 293T cells labelling Histone H3.3(mutated G34 V) with ab254401 at 1/1000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) antibody at 1/1000 2 μg/ml dilution (Green). Confocal image showing nuclear staining in 293T cells transfected with Histone H3.3 H3G34V-Myc plasmid, while no staining in 293T cells transfected with H3.3 WT -Myc plasmid. Myc-Tag Mouse mAb (Alexa Fluor^® 647) was used to counterstain tubulin at 1/200 dilution (Red). The nuclear counterstain was DAPI (Blue).

Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) at 1/1000 2 μg/ml dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

• ChIP

Supplier Data

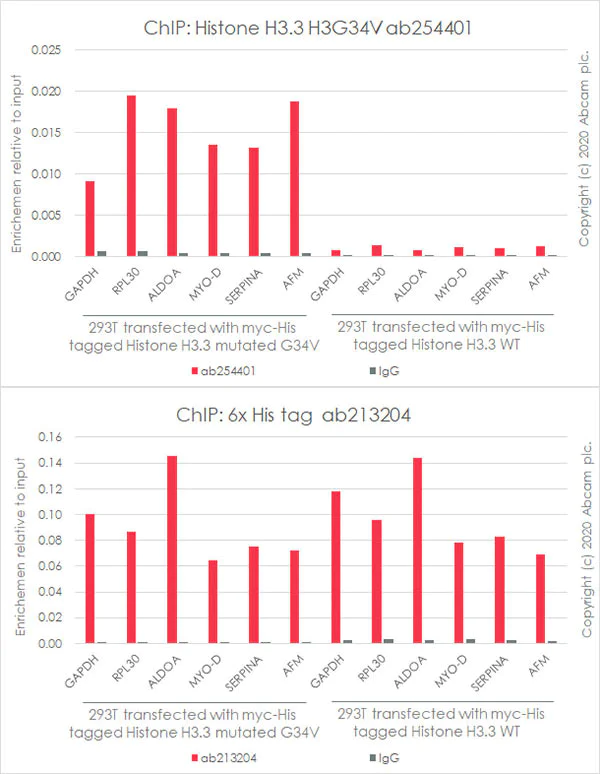

ChIP - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Chromatin was prepared from 293T transfected with myc-His tagged Histone H3.3 mutated G34V and Histone H3.3 WT cells according to the Abcam Dual-X-ChIP protocol. Cells were fixed with then formaldehyde for 10min.
The ChIP was performed with 25 μg of chromatin, 2 μg of ab254401 (red), or 2 μg of rabbit normal IgG ab172730 (gray) and 20 μl of Protein A/G sepharose beads. The immunoprecipitated DNA was quantified by real time PCR (Taqman approach for active and inactive loci, Sybr green approach for heterochromatic loci).
Primers and probes are located in the first kb of the transcribed region.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

• IP

Unknown

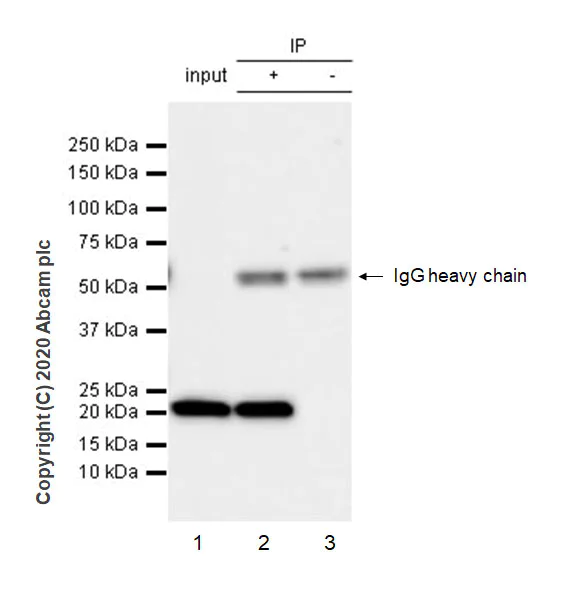

Immunoprecipitation - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Histone H3.3(mutated G34 V) was immunoprecipitated from 0.35 mg HEK-293T (human embryonic kidney) transfected with Histone H3.3 G34V expression vector containing a myc-His-tag^® whole cell lysate 10 μg with ab254401 at 1/30 dilution (2μg in 0.35mg lysates). Western blot was performed on the immunoprecipitate using ab254401 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP)(ab131366) was used at 1/5000 dilution.

Lane 1 : HEK-293T transfected with Histone H3.3 G34V expression vector containing a myc-His-tag^® whole cell lysate 10 μg

Lane 2 : ab254401 IP in HEK-293T transfected with Histone H3.3 G34V expression vector containing a myc-His-tag^® whole cell lysate

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab254401 in HEK-293T transfected with Histone H3.3 G34V expression vector containing a myc-His-tag^® whole cell lysate

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 32 seconds.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).

All lanes:

Immunoprecipitation - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade (<a href='/en-us/products/primary-antibodies/histone-h33-mutated-g34v-antibody-epr23520-5-chip-grade-ab254401'>ab254401</a>)

Predicted band size: 15 kDa

false

• Dot

Supplier Data

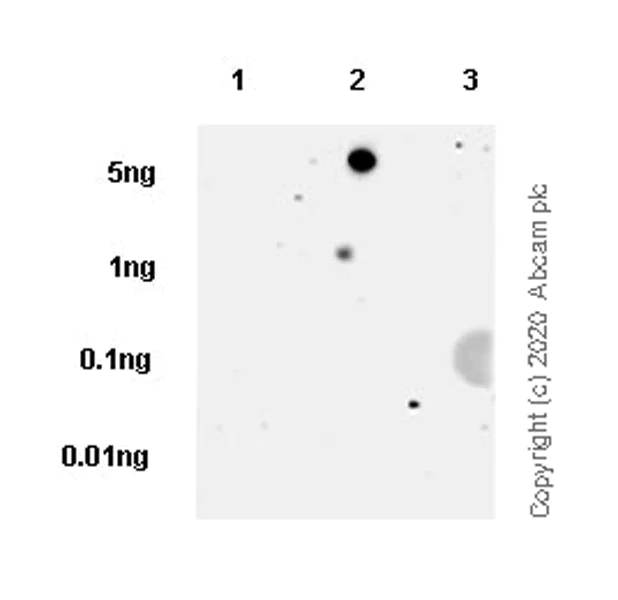

Dot Blot - Anti-Histone H3.3 (mutated G34V) antibody [EPR23520-5] - ChIP Grade - BSA and Azide free (AB272942)

Dot blot analysis of Histone H3.3 (mutated G34 V) labeled with ab254401 at 1/1000 dilution.

Lane 1 : Histone H3.3 H3G34V peptide (aa28-40).
Lane 2 : Histone H3.3 H3G34V peptide (aa26-38).
Lane 3 : Histone H3.3 WT peptide (aa26-40).

Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/100000 dilution was used as secondary antibody.

Blocking and dilution buffer : 5% NFDM/TBST.

Exposure time : 3 minutes.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab254401).
