Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

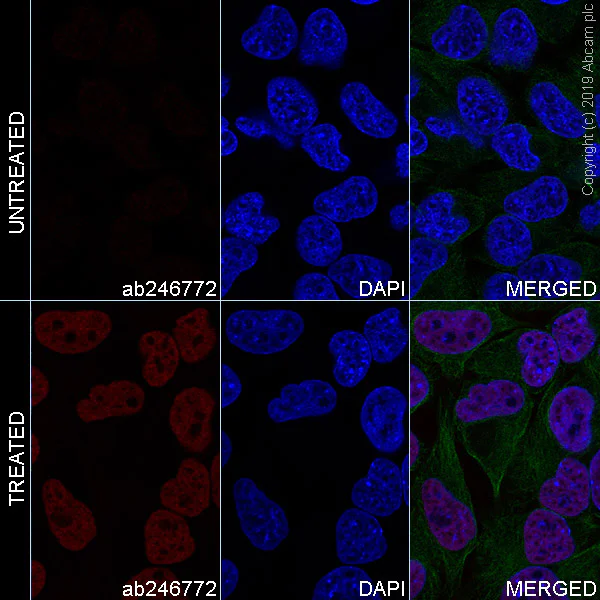

Clone EPR1004 (ab194352) has been successfully conjugated by Abcam. This image was generated using Anti-Histone H4 (acetyl K16) antibody [EPR1004] (Alexa Fluor® 647). Please refer to ab246772 for protocol details.

ab246772 staining Histone H4 (acetyl K16) in HeLa +/- TSA (500 ng/ml for 4h). The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4ºC with ab246772 at 1/200 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

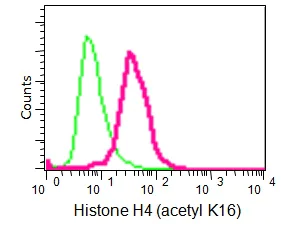

Intracellular Flow Cytometry analysis of HeLa cells labelling Histone H4 (acetyl K16) with unpurified ab109463 (red) at 1/130. Cells were fixed with 80% methanol. A FITC-conjugated goat anti-rabbit IgG was used as the secondary antibody (1/150). A rabbit monoclonal IgG was used as the isotype control (green).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• Flow Cyt (Intra)

Lab

Flow Cytometry (Intracellular) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

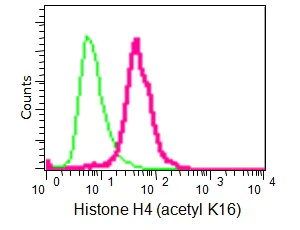

Intracellular Flow Cytometry analysis of HeLa cells labelling Histone H4 (acetyl K16) with purified ab109463 (red) at 1/200. Cells were fixed with 80% methanol. A FITC-conjugated goat anti-rabbit IgG was used as the secondary antibody (1/150). A rabbit monoclonal IgG was used as the isotype control (green).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

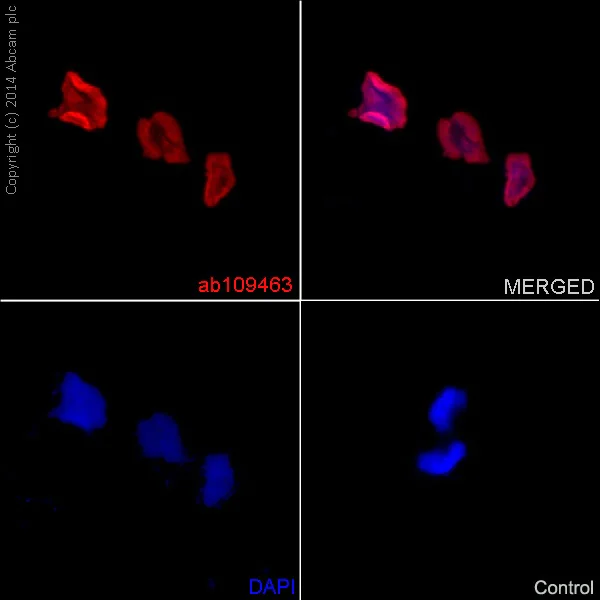

Immunocytochemistry/Immunofluorescence analysis of HeLa cells treated with TSA labelling Histone H4 (acetyl K16) with unpurified ab109463 (red) at 1/100. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/100) and secondary antibody ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human testis tissue labelling Histone H4 with unpurified ab109463 at 1/100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

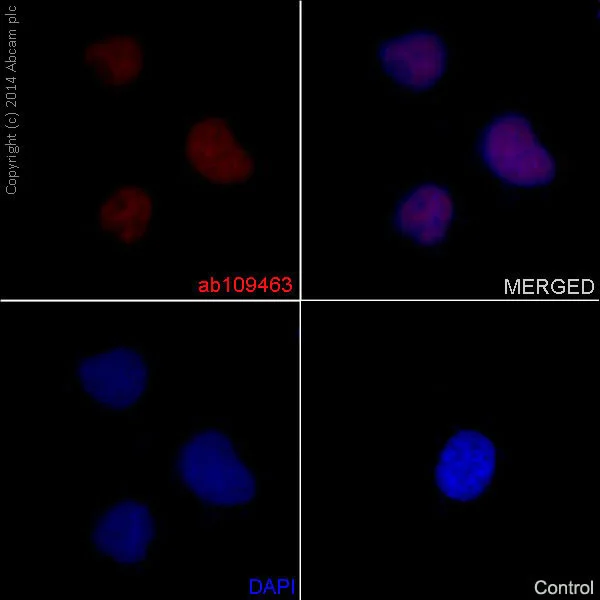

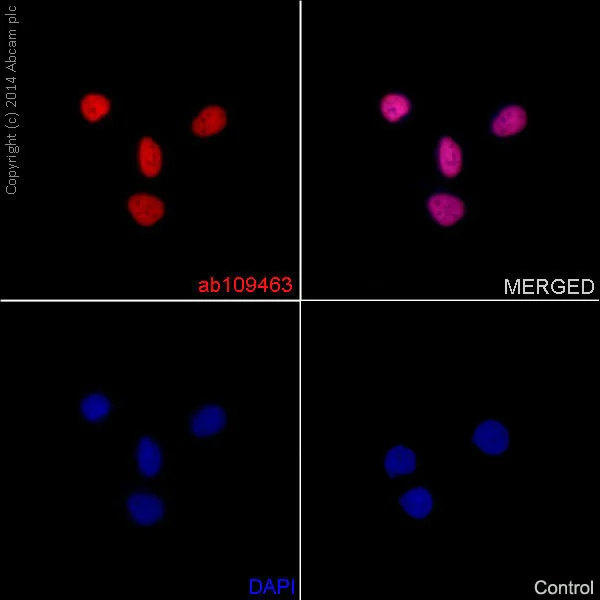

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling Histone H4 (acetyl K16) with unpurified ab109463 (red) at 1/100. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/100) and secondary antibody ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human transitional cell carcinoma labelling Histone H4 (acetly K16) with unpurified ab109463 at 1/100.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• Flow Cyt (Intra)

Unknown

Flow Cytometry (Intracellular) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

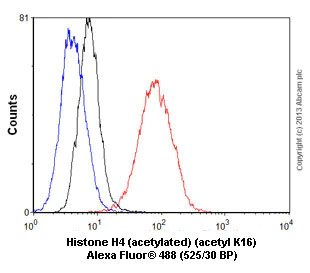

Overlay histogram showing HeLa cells stained with unpurified ab109463 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab109463, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluorr^® 488 goat anti-rabbit IgG (H+L) (ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

Immunocytochemistry/Immunofluorescence analysis of HeLa cells treated with TSA labelling Histone H4 (acetyl K16) with purified ab109463 (red) at 1/150. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/150) and secondary antibody ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

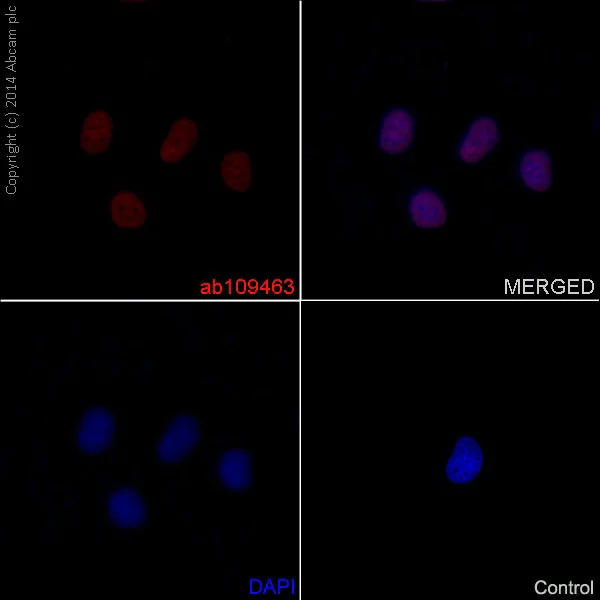

Immunocytochemistry/Immunofluorescence analysis of HeLa cells labelling Histone H4 (acetyl K16) with purified ab109463 (red) at 1/150. Cells were fixed with 4% paraformaldehyde. An Alexa Fluor^® 555-conjugated goat anti-rabbit IgG (1/500) was used as the secondary antibody. DAPI (blue) was used as the nuclear counterstain.

Control : primary antibody (1/150) and secondary antibody ab150120, an Alexa Fluor^® 594-conjugated goat anti-mouse IgG (1/500).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

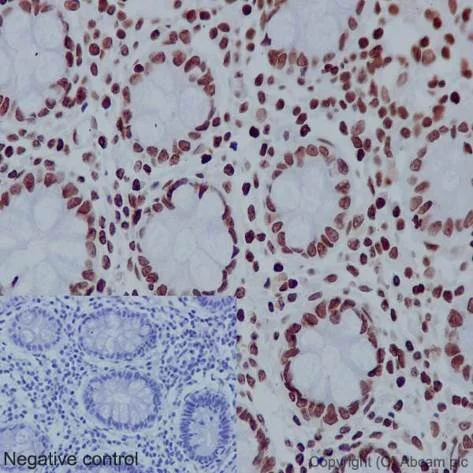

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue labelling Histone H4 (acetyl K16) with unpurified ab109463 at 1/100. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

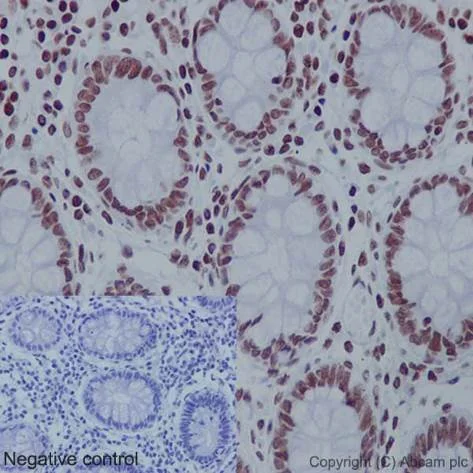

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of human colon tissue labelling Histone H4 (acetyl K16) with purified ab109463 at 1/150. Heat mediated antigen retrieval was performed using Tris/EDTA buffer pH 9. A prediluted HRP-polymer conjugated anti-rabbit IgG was used as the secondary antibody. Negative control using PBS instead of primary antibody. Counterstained with hematoxylin.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).

• ICC/IF

Unknown

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

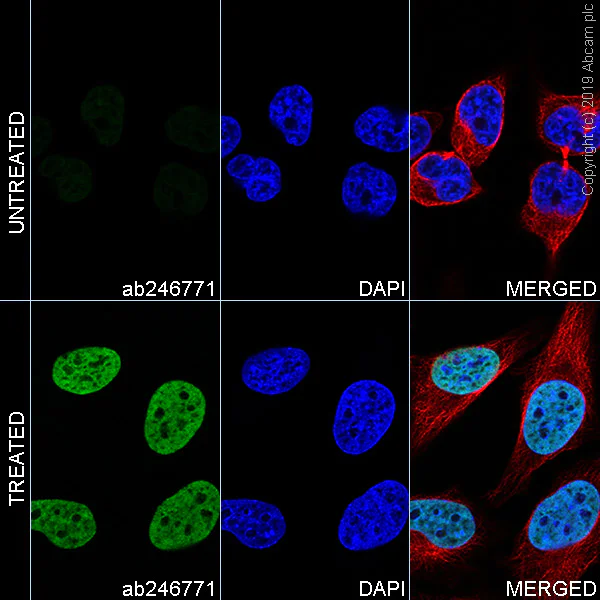

Clone EPR1004 (ab194352) has been successfully conjugated by Abcam. This image was generated using Anti-Histone H4 (acetyl K16) antibody [EPR1004] (Alexa Fluor® 488). Please refer to ab246771 for protocol details.

ab246771 staining Histone H4 (acetyl K16) in HeLa +/- Trichostatin A (500 ng/ml for 4h). The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h. The cells were then incubated overnight at +4ºC with ab246771 at 1/200 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

• WB

Lab

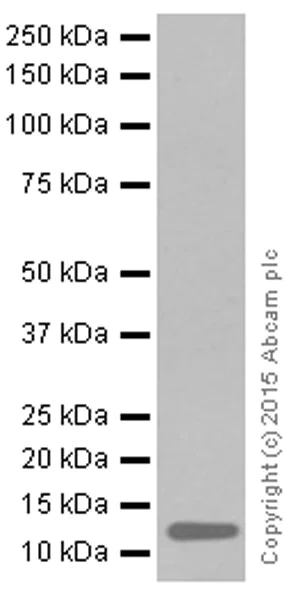

Western blot - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

Blocking buffer and concentration : 5% NFDM/TBST

Diluting buffer and concentration : 5% NFDM/TBST

All lanes:

Western blot - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (ab194352)

All lanes:

HeLa (human cervix adenocarcinoma) treated with Trichostatin A whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>)

Predicted band size: 11 kDa

false

Exposure time: 10s

• ChIC/CUT&RUN-seq

Supplier Data

ChIC/CUT&RUN sequencing - Anti-Histone H4 (acetyl K16) antibody [EPR1004] - BSA and Azide free (AB194352)

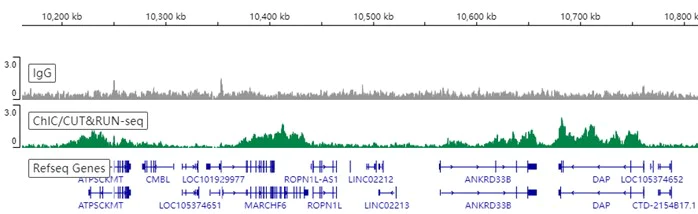

ChIC/CUT&RUN was performed using a pAG-MNAse at a final concentration of 700 ng/mL, 2.5 x 10^5 HeLa (Human cervix adenocarcinoma epithelial cell line) cells and 2 µg of ab109463 [EPR1004]. The resulting DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 10 million reads. The negative IgG control ab172730 is also shown. Additional screenshots of mapped reads can be found in the Protocol booklet in the Product Protocol section. The University of Geneva owns patents relevant to ChIC (Chromatin Immuno-Cleavage) methods. This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab109463).
