Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labeling Histone H4 (acetyl K5 + K8 + K12 + K16) with ab177790 at 1/5000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/400 dilution (green). Nuclear staining on HeLa cell line is observed. The expression increased after treatment with TSA (50 μg/ml) for 4 hours. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows :
1. ab177790 at 1/15000 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
2. ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab177790).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Clone EPR16606 (ab240201) has been successfully conjugated by Abcam. This image was generated using Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] (Alexa Fluor® 647). Please refer to ab223996 for protocol details.

ab223996 staining Histone H4 (acetyl K5 + K8 + K12 + K16) in HeLa cells +/- Trichostatin A (500ng/ml, 4 hours). The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h.

The cells were then incubated overnight at +4°C with ab223996 at 1/200 dilution (shown in red) and ab195887, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 488), at 1/250 dilution (shown in green). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Clone EPR16606 (ab240201) has been successfully conjugated by Abcam. This image was generated using Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] (Alexa Fluor® 488). Please refer to ab223995 for protocol details.

ab223995 staining Histone H4 (acetyl K5 + K8 + K12 + K16) in HeLa cells +/- Trichostatin A (500ng/ml, 4 hours). The cells were fixed with 4% formaldehyde (10 min), permeabilized with 0.1% Triton X-100 for 5 minutes and then blocked with 1% BSA/10% normal goat serum/0.3M glycine in 0.1% PBS-Tween for 1h.

The cells were then incubated overnight at +4°C with ab223995 at 1/200 dilution (shown in green) and ab195889, Mouse monoclonal to alpha Tubulin (Alexa Fluor^® 594), at 1/250 dilution (shown in red). Nuclear DNA was labelled with DAPI (shown in blue).

Image was taken with a confocal microscope (Leica-Microsystems, TCS SP8).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling Histone H4 (acetyl K5 + K8 + K12 + K16) with ab177790 at 1/1000 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on glandular epithelium of Human colon tissue is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted Goat Anti-Rabbit IgG H&L (HRP).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab177790).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling Histone H4 (acetyl K5 + K8 + K12 + K16) with ab177790 at 1/1000 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on glandular epithelium of mouse colon tissue is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted Goat Anti-Rabbit IgG H&L (HRP).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab177790).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

Immunohistochemical analysis of paraffin-embedded Rat colon tissue labeling Histone H4 (acetyl K5 + K8 + K12 + K16) with ab177790 at 1/1000 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on glandular epithelium of rat colon tissue is observed. Counter stained with Hematoxylin.

Negative control : Using PBS instead of primary ab, secondary ab is prediluted Goat Anti-Rabbit IgG H&L (HRP).

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab177790).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• PepArr

Supplier Data

Peptide Array - Anti-Histone H4 (acetyl K5 + K8 + K12 + K16) antibody [EPR16606] - BSA and Azide free (AB240201)

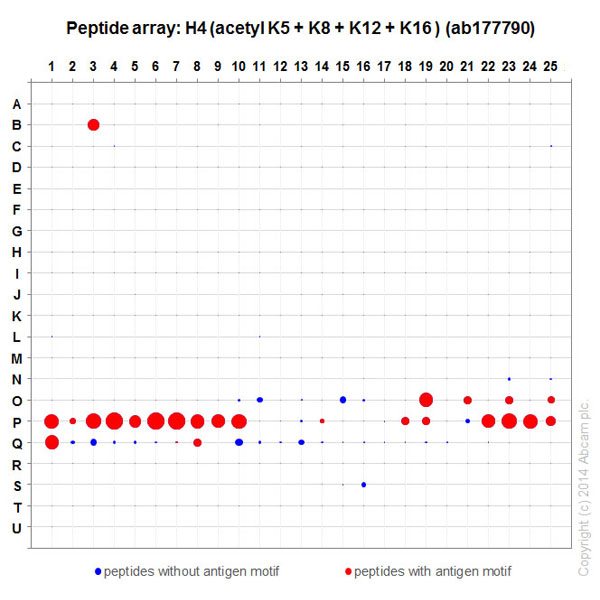

ab177790 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab177790).
