Anti-Histone H4 (mono methyl K16) antibody [EPR17910]

3 product images

•

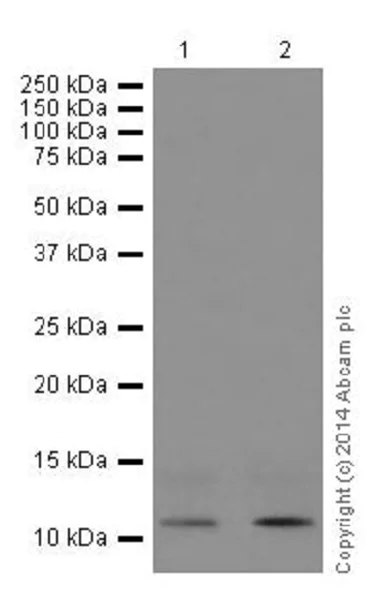

  Western blot - Anti-Histone H4 (mono methyl K16) antibody [EPR17910] (ab177849)

  Blocking/Dilution buffer: 5% NFDM/TBST.

  All lanes: Western blot - Anti-Histone H4 (mono methyl K16) antibody [EPR17910] (ab177849) at 1/2000 dilution

  Lane 1: NIH/3T3 (Mouse embyro fibroblast cells) whole cell lysate at 10 µg

  Lane 2: HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

  Secondary

  All lanes: Goat Anti-Rabbit IgG, (H+L), Peroxidase conjugated at 1/1000 dilution

  Predicted band size: 11 kDa

  Observed band size: 11 kDa

  Exposure time: 5s

•

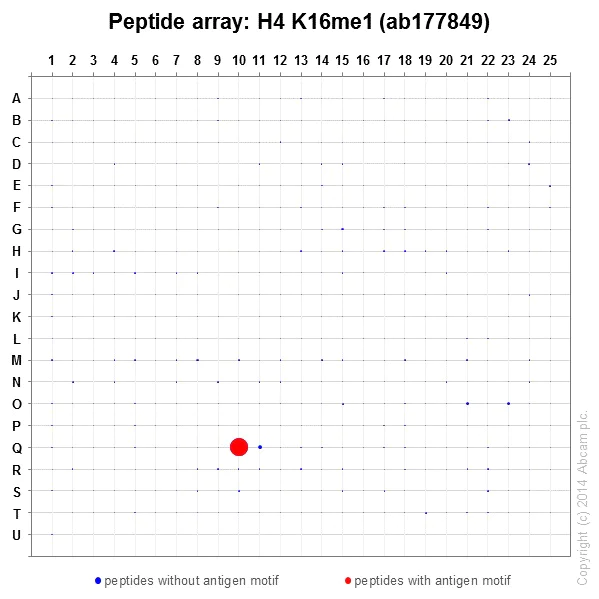

  Peptide Array - Anti-Histone H4 (mono methyl K16) antibody [EPR17910] (ab177849)

  ab177849 was tested in Peptide array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
  Circle area represents affinity between the antibody and a peptide: all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
  The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Support & downloads section.

•

  Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (mono methyl K16) antibody [EPR17910] (ab177849)

  Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H4 (mono methyl K16) with ab177849 at 1/2000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) secondary antibody at 1/500 dilution (green). Confocal image showing nuclear staining on HeLa cell line. The nuclear counter stain is DAPI (blue). Tubulin is detected with Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution and Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (AlexaFluor® 594 Goat anti-Mouse secondary) at 1/500 dilution (red).
  The negative controls are as follows:
  -ve control 1: ab177849 at 1/2000 dilution followed by Goat Anti-Mouse IgG H&L (Alexa Fluor® 594) preadsorbed ab150120 (Alexa Fluor® 594 Goat anti-Mouse secondary) at 1/500 dilution.
  -ve control 2: Anti-alpha Tubulin antibody [DM1A] - Loading Control ab7291 (anti-Tubulin mouse mAb) at 1/1000 dilution followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 (Alexa Fluor® 488 Goat Anti-Rabbit IgG H&L) at 1/500 dilution.
