Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa cells labeling Histone H4 (mono methyl K20) with ab177188 at 1/100 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor® 488) (ab150077) secondary antibody at 1/400 dilution (green). Nuclear staining on HeLa cell line is observed. The nuclear counter stain is DAPI (blue). Tubulin is detected with ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution and ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution (red).
The negative controls are as follows :
1. ab177188 at 1/100 dilution followed by ab150120 (AlexaFluor®594 Goat anti-Mouse secondary) at 1/500 dilution.
2. ab7291 (anti-Tubulin mouse mAb) at 1/500 dilution followed by ab150077 (Alexa Fluor®488 Goat Anti-Rabbit IgG H&L) at 1/400 dilution.

• IHC-P

Supplier Data

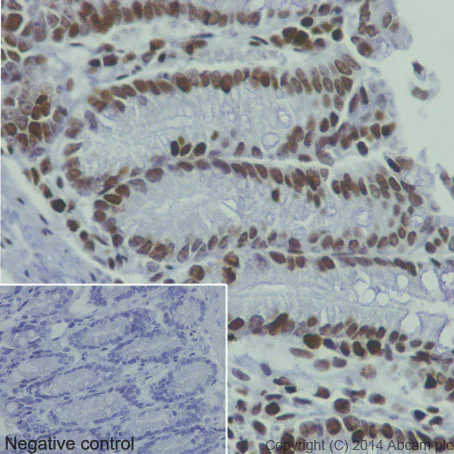

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Immunohistochemical analysis of paraffin-embedded Human colon tissue labeling Histone H4 (mono methyl K20) with ab177188 at 1/100 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on glandular epithelium of colon tissue is observed. Counter stained with Hematoxylin.

Negative control : PBS instead of primary antibody, secondary antibody is prediluted Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ChIP

Supplier Data

ChIP - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Chromatin was prepared from HeLa cells according to the Abcam X-ChIP protocol. Cells were fixed with formaldehyde for 10min. The ChIP was performed with 25μg of chromatin, 2μg of ab177188 (blue), and 20μl of Anti rabbit IgG sepharose beads. 2μg of rabbit normal IgG was added to the beads control (yellow). The immunoprecipitated DNA was quantified by real time PCR (SYBR approach). Primers are located in the first kb of the transcribed region.

• ChIP-seq

Lab

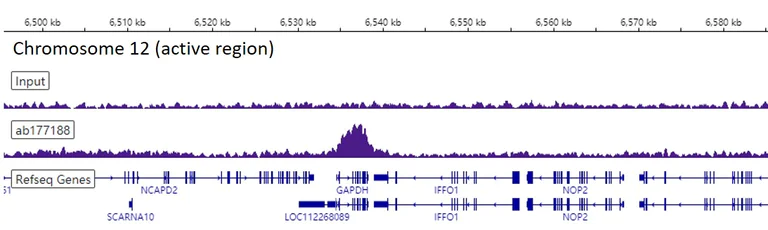

ChIP-sequencing - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Chromatin was prepared from HeLa cells. Cells were fixed with 1% formaldehyde for 10 minutes. ChIP was performed with 10^7 HeLa cells and 4 μg of ab177188 [EPR16999]. ChIP DNA was sequenced on the Illumina NovaSeq 6000 to a depth of 30 million reads. Additional screenshots of mapped reads can be downloaded here.

• IHC-P

Supplier Data

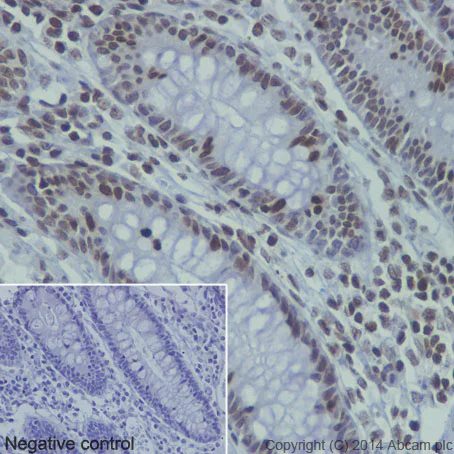

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Immunohistochemical analysis of paraffin-embedded mouse colon tissue labeling Histone H4 (mono methyl K20) with ab177188 at 1/100 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on glandular epithelium of mouse colon tissue is observed. Counter stained with Hematoxylin.

Negative control : PBS instead of primary antibody, secondary antibody is prediluted Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

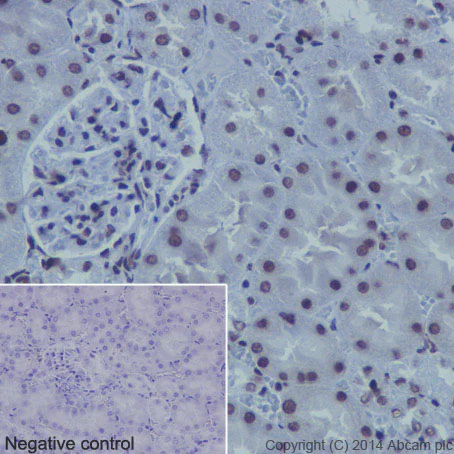

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling Histone H4 (mono methyl K20) with ab177188 at 1/100 dilution, followed by prediluted Goat Anti-Rabbit IgG H&L (HRP). Nucleus staining on rat kidney tissue is observed. Counter stained with Hematoxylin.

Negative control : PBS instead of primary antibody, secondary antibody is prediluted Goat Anti-Rabbit IgG H&L (HRP).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• WB

Supplier Data

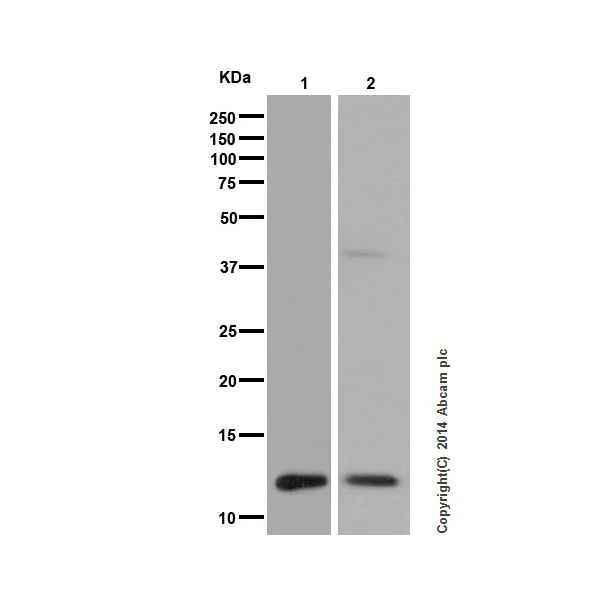

Western blot - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

Blocking buffer/Diluting buffer : 5% NFDM/TBST

All lanes:

Western blot - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (ab177188) at 1/5000 dilution

Lane 1:

Hela whole cell lysates at 10 µg

Lane 2:

NIH/3T3 whole cell lysates at 10 µg

Predicted band size: 11 kDa

Observed band size: 11 kDa

false

• PepArr

Supplier Data

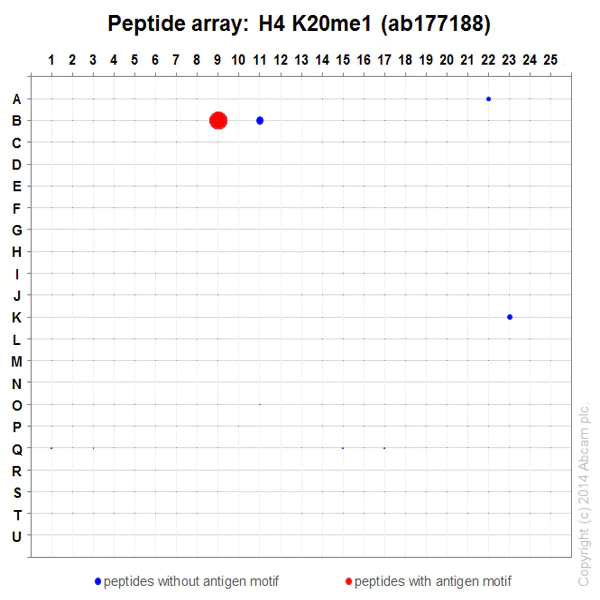

Peptide Array - Anti-Histone H4 (mono methyl K20) antibody [EPR16999] - ChIP Grade (AB177188)

ab177188 was tested in Peptide Array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.
