Anti-Histone H4 (mono methyl K31) antibody [EPR17913] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-Histone H4 (mono methyl K31) antibody [EPR17913] - BSA and Azide free (AB249999)

This data was developed using ab177822, the same antibody clone in a different buffer formulation.

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cells from cervix adenocarcinoma) cells labeling Histone H4 (mono methyl K31) with ab177822 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on HeLa cell line. The nuclear counter stain is DAPI (blue).

Tubulin is detected with Anti-alpha Tubulin mouse MAb (ab7291) at 1/1000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) (ab150120) secondary antibody at 1/1000 dilution (red).

The negative controls are as follows :
-ve control 1 : ab177822 at 1/2000 dilution, followed by Goat Anti-Mouse IgG H&L (Alexa Fluor^® 594) (ab150120) secondary at 1/1000 dilution.
-ve control 2 : Anti-alpha Tubulin mouse MAb (ab7291) at 1/1000 dilution, followed by Goat Anti-Rabbit IgG H&L (Alexa Fluor^® 488) (ab150077) secondary at 1/1000 dilution.

• WB

Supplier Data

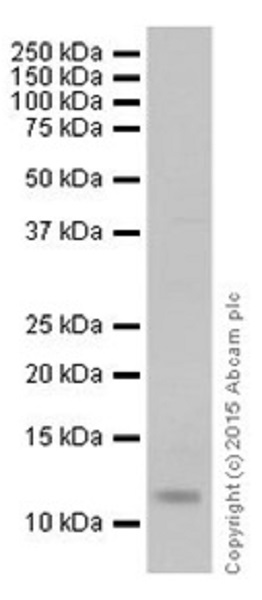

Western blot - Anti-Histone H4 (mono methyl K31) antibody [EPR17913] - BSA and Azide free (AB249999)

This data was developed using ab177822, the same antibody clone in a different buffer formulation.

Blocking and dilution buffer : 5% BSA/TBST.

All lanes:

Western blot - Anti-Histone H4 (mono methyl K31) antibody [EPR17913] (<a href='/en-us/products/primary-antibodies/histone-h4-mono-methyl-k31-antibody-epr17913-ab177822'>ab177822</a>) at 1/1000 dilution

All lanes:

HeLa (Human epithelial cells from cervix adenocarcinoma) whole cell lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Predicted band size: 11 kDa

Observed band size: 11 kDa

false

Exposure time: 1s

• PepArr

Unknown

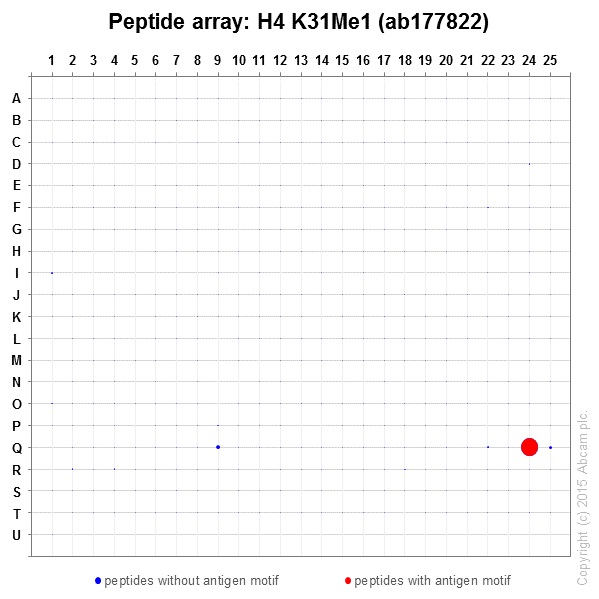

Peptide Array - Anti-Histone H4 (mono methyl K31) antibody [EPR17913] - BSA and Azide free (AB249999)

This data was developed using ab177822, the same antibody clone in a different buffer formulation.

ab177822 was tested in Peptide array against 501 different modified and unmodified histone peptides; each peptide is printed on the array at six concentrations (each in triplicate).
Circle area represents affinity between the antibody and a peptide : all antigen-containing peptides are displayed as red circles, all other peptides as blue circles. The affinity is calculated as area under curve when antibody binding values are plotted against the corresponding peptide concentration. Each circle area is normalized to the peptide with the strongest affinity.
The complete dataset, including full list of all peptides and information on the position of each peptide in the diagram, is available under the Product Protocol section.
