Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free

• Flow Cyt (Intra)

Supplier Data

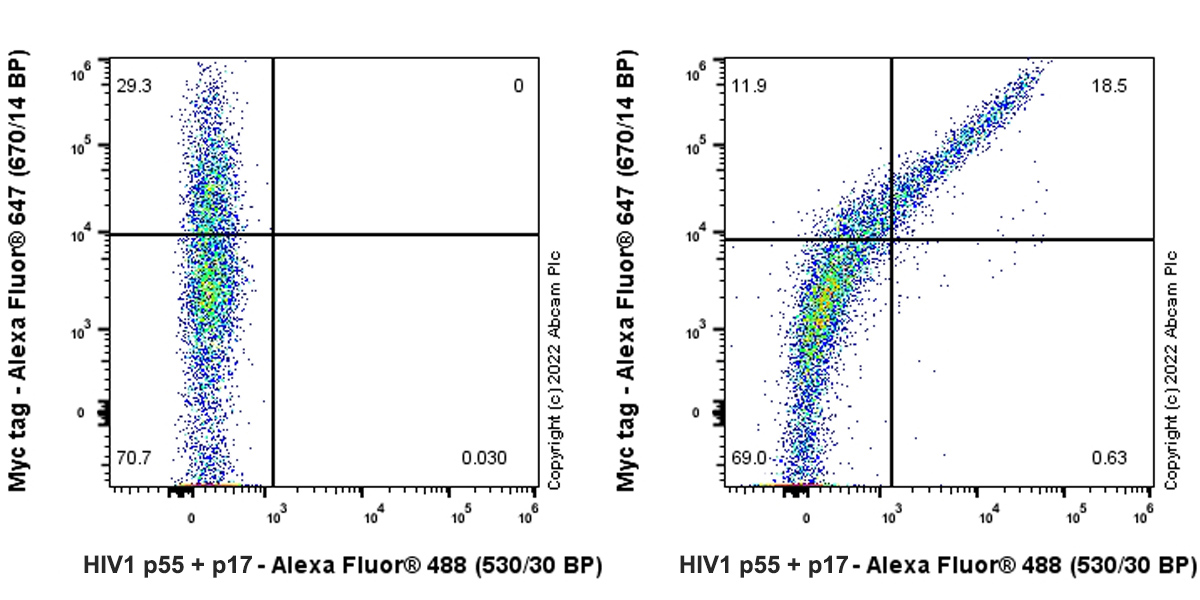

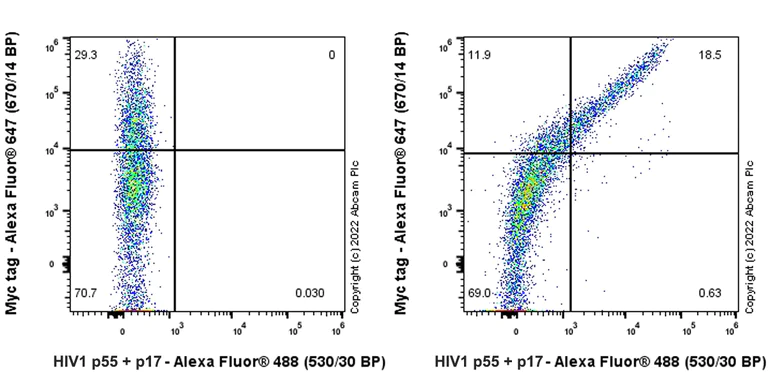

Flow Cytometry (Intracellular) - Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free (AB308071)

This data was developed using ab308070, the same antibody clone in a different buffer formulation. Flow cytometric analysis of 4% paraformaldehyde fixed 90% methanol permeabilized HEK-293T cells (human embryonic kidney epithelial cells) transfected with Myc-tagged HIV2-GAG overexpression construct (Left) / HEK-293T cells transfected with Myc-tagged HIV1-GAG overexpression construct (Right) labelling HIV1 p55 + p17 with ab308070 at 1/500 dilution (Right). A Goat Anti-Rabbit IgG (Alexa Fluor® 488, ab150081) at 1/5000 dilution was used as the secondary antibody. Cells were co-stained with anti-myc conjugated to 647.

• ICC/IF

Supplier Data

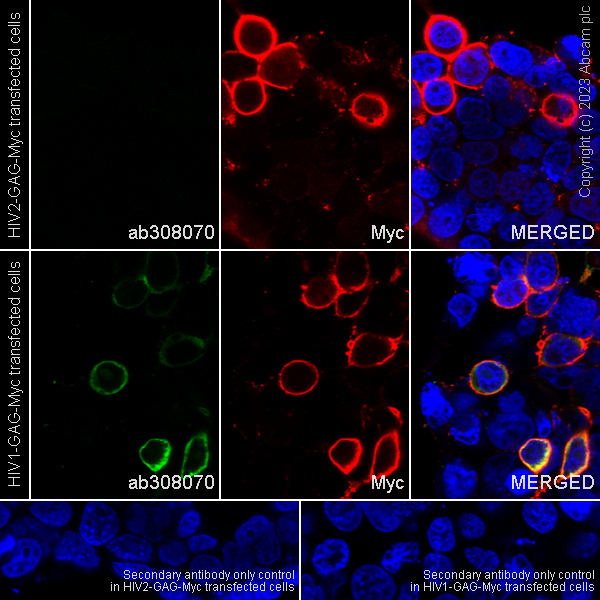

Immunocytochemistry/ Immunofluorescence - Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free (AB308071)

This data was developed using ab308070, the same antibody clone in a different buffer formulation. Immunofluorescent analysis of 4% Paraformaldehyde-fixed, 0.1% TritonX-100 permeabilized HEK-293T (human embryonic kidney epithelial cell) cells labelling HIV1 p55 + p17 with ab308070 at 1/2000 dilution, followed by ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) antibody at 1/1000 dilution (Green). Confocal image showing positive staining in HEK-293T cells transfected with a HIV1-GAG expression vector containing a myc tag and no staining in HEK-293T cells transfected with a HIV2-GAG expression vector containing a myc tag. Image was taken with a confocal microscope(Leica-Microsystems, TCS SP8). Myc-Tag Mouse mAb (Alexa Fluor® 647) was used to counterstain tubulin at 1/100 dilution (Red). The nuclear counterstain was DAPI (Blue). Secondary antibody only control : Secondary antibody is ab150077 Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) at 1/1000 dilution.

• I-ELISA

Supplier Data

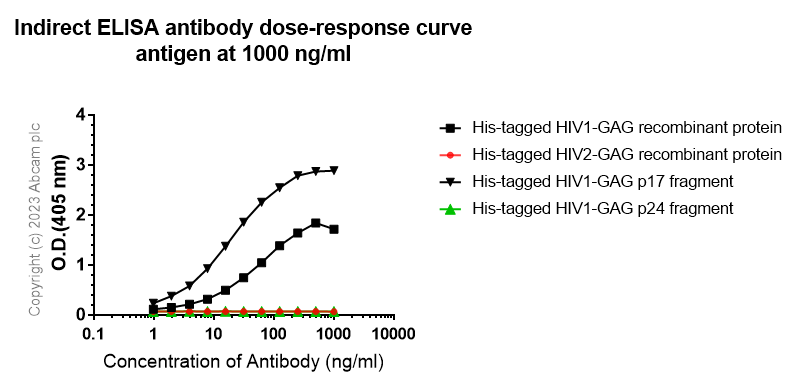

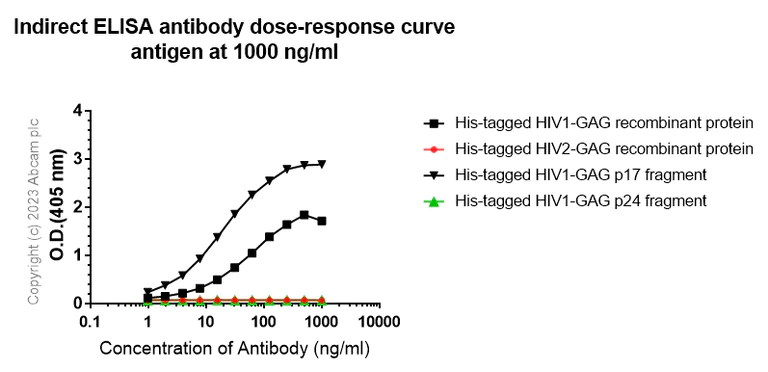

Indirect ELISA - Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free (AB308071)

This data was developed using ab308070, the same antibody clone in a different buffer formulation. Indirect ELISA analysis of ab308070 at 0-1000 ng/ml. The secondary antibody used was Alkaline Phosphatase-conjugated AffiniPure Goat Anti-Rabbit IgG (H+L) at 1/2500 dilution.

• WB

Supplier Data

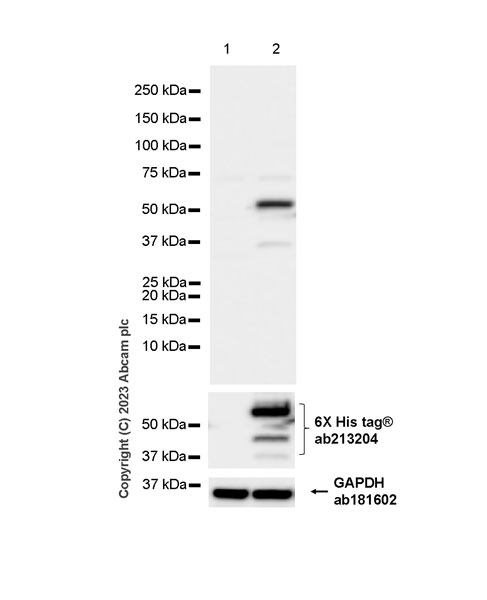

Western blot - Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free (AB308071)

This data was developed using 308070, the same antibody clone in a different buffer formulation.  Blocking and diluting buffer and concentration : 5% NFDM/TBST In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. Anti-GAPDH antibody (ab181602) loading control staining at 1/200000 dilution. Exposure time : 3 seconds

All lanes:

Western blot - Anti-HIV1 p55 + p17 antibody [EPR27327-41] (<a href='/en-us/products/primary-antibodies/hiv1-p55-p17-antibody-epr27327-41-ab308070'>ab308070</a>) at 1/1000 dilution

Lane 1:

293T cells transfected with an empty vector containing a His tag whole cell lysate at 20 µg

Lane 2:

293T cells transfected with a HIV1-GAG p55 expression vector containing a His-tag whole cell lysate at 20 µg

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 55 kDa

false

Exposure time: 3s

• WB

Supplier Data

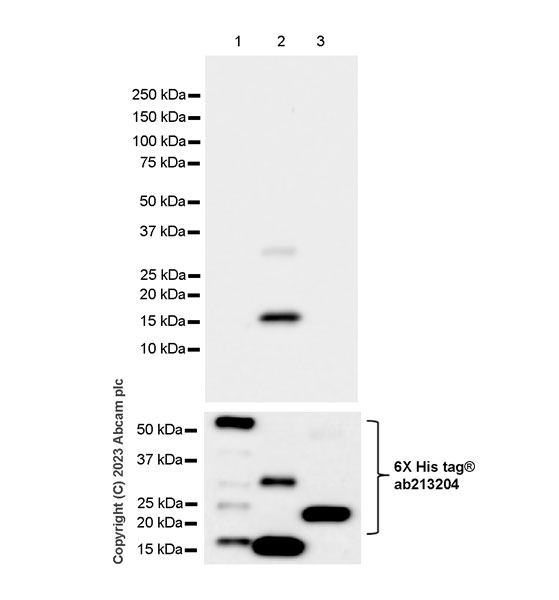

Western blot - Anti-HIV1 p55 + p17 antibody [EPR27327-41] - BSA and Azide free (AB308071)

This data was developed using 308070, the same antibody clone in a different buffer formulation.  Blocking and diluting buffer and concentration : 5% NFDM/TBST In Western blot, anti-His antibody (ab213204) staining at 1/5000 dilution. This antibody does not cross-react with HIV2-GAG. Exposure time : 3 seconds

All lanes:

Western blot - Anti-HIV1 p55 + p17 antibody [EPR27327-41] (<a href='/en-us/products/primary-antibodies/hiv1-p55-p17-antibody-epr27327-41-ab308070'>ab308070</a>) at 1/1000 dilution

Lane 1:

His-tagged HIV2-GAG recombinant protein at 10 ng

Lane 2:

His-tagged HIV1-GAG p17 fragment at 10 ng

Lane 3:

His-tagged HIV1-GAG p24 fragment at 10 ng

Secondary

All lanes:

Western blot - Goat Anti-Rabbit IgG H&L (HRP) (<a href='/en-us/products/secondary-antibodies/goat-rabbit-igg-h-l-hrp-ab97051'>ab97051</a>) at 1/100000 dilution

Observed band size: 17 kDa

false

Exposure time: 3s
