Anti-HLA Class 1 ABC antibody [EMR8-5] is a mouse monoclonal antibody that is used to detect HLA Class 1 ABC in Flow cytometry, IHC-P, Western blot. Suitable for Human, Recombinant fragment samples.

- Recognises the heavy chains of Human HLA class 1 A, B, and C
- Cited in over 140 publications
- Trusted since 2008


Images

Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (AB70328), expandable thumbnail
  • Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (AB70328), expandable thumbnail
  • Flow Cytometry - Anti-HLA Class 1 ABC antibody [EMR8-5] (AB70328), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (AB70328), expandable thumbnail
  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (AB70328), expandable thumbnail

Publications

Key facts

Isotype
IgG1
Host species
Mouse
Storage buffer

pH: 7.2 - 7.4
Preservative: 0.01% Sodium azide
Constituents: PBS, 40% Glycerol (glycerin, glycerine), 0.05% BSA

Form
Liquid
Clonality
Monoclonal

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PFlow CytWB
Human
Tested
Tested
Tested
Recombinant fragment - Human
Not recommended
Not recommended
Tested

Tested
Tested

Species
Human
Dilution info
1/20000
Notes

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Not recommended
Not recommended

Species
Recombinant fragment - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Human
Dilution info
1/100
Notes

ab170190 - Mouse monoclonal IgG1, is suitable for use as an isotype control with this antibody.

Not recommended
Not recommended

Species
Recombinant fragment - Human
Dilution info
-
Notes

-

Tested
Tested

Species
Recombinant fragment - Human
Dilution info
1/1000
Notes

-

Species
Human
Dilution info
1/1000
Notes

-

Associated Products

Select an associated product type

1 product for Alternative Product

Target data

Function

Antigen-presenting major histocompatibility complex class I (MHCI) molecule. In complex with B2M/beta 2 microglobulin displays primarily viral and tumor-derived peptides on antigen-presenting cells for recognition by alpha-beta T cell receptor (TCR) on HLA-B-restricted CD8-positive T cells, guiding antigen-specific T cell immune response to eliminate infected or transformed cells (PubMed:23209413, PubMed:25808313, PubMed:29531227, PubMed:9620674). May also present self-peptides derived from the signal sequence of secreted or membrane proteins, although T cells specific for these peptides are usually inactivated to prevent autoreactivity (PubMed:18991276, PubMed:7743181). Both the peptide and the MHC molecule are recognized by TCR, the peptide is responsible for the fine specificity of antigen recognition and MHC residues account for the MHC restriction of T cells (PubMed:24600035, PubMed:29531227, PubMed:9620674). Typically presents intracellular peptide antigens of 8 to 13 amino acids that arise from cytosolic proteolysis via constitutive proteasome and IFNG-induced immunoproteasome (PubMed:23209413). Can bind different peptides containing allele-specific binding motifs, which are mainly defined by anchor residues at position 2 and 9 (PubMed:25808313, PubMed:29531227). Allele B*07:02: Displays peptides sharing a common signature motif, namely a Pro residue at position 2 and mainly a Leu anchor residue at the C-terminus (PubMed:7743181). Presents a long peptide (APRGPHGGAASGL) derived from the cancer-testis antigen CTAG1A/NY-ESO-1, eliciting a polyclonal CD8-positive T cell response against tumor cells (PubMed:29531227). Presents viral epitopes derived from HIV-1 gag-pol (TPQDLNTML) and Nef (RPQVPLRPM) (PubMed:25808313). Presents an immunodominant epitope derived from SARS-CoV-2 N/nucleoprotein (SPRWYFYYL) (PubMed:32887977). Displays self-peptides including a peptide derived from the signal sequence of HLA-DPB1 (APRTVALTA) (PubMed:7743181). Allele B*08:01: Presents to CD8-positive T cells viral epitopes derived from EBV/HHV-4 EBNA3 (QAKWRLQTL), eliciting cytotoxic T cell response. Allele B*13:02: Presents multiple HIV-1 epitopes derived from gag (RQANFLGKI, GQMREPRGSDI), nef (RQDILDLWI), gag-pol (RQYDQILIE, GQGQWTYQI) and rev (LQLPPLERL), all having in common a Gln residue at position 2 and mainly hydrophobic amino acids Leu, Ile or Val at the C-terminus. Associated with succesful control of HIV-1 infection. Allele B*18:01: Preferentially presents octomeric and nonameric peptides sharing a common motif, namely a Glu at position 2 and Phe or Tyr anchor residues at the C-terminus (PubMed:14978097, PubMed:18991276, PubMed:23749632). Presents an EBV/HHV-4 epitope derived from BZLF1 (SELEIKRY) (PubMed:23749632). May present to CD8-positive T cells an antigenic peptide derived from MAGEA3 (MEVDPIGHLY), triggering an anti-tumor immune response (PubMed:12366779). May display a broad repertoire of self-peptides with a preference for peptides derived from RNA-binding proteins (PubMed:14978097). Allele B*27:05: Presents to CD8-positive T cells immunodominant viral epitopes derived from HCV POLG (ARMILMTHF), HIV-1 gag (KRWIILGLNK), IAV NP (SRYWAIRTR), SARS-CoV-2 N/nucleoprotein (QRNAPRITF), EBV/HHV-4 EBNA4 (HRCQAIRKK) and EBV/HHV-4 EBNA6 (RRIYDLIEL), conferring longterm protection against viral infection (PubMed:15113903, PubMed:18385228, PubMed:19139562, PubMed:32887977, PubMed:9620674). Can present self-peptides derived from cytosolic and nuclear proteins. All peptides carry an Arg at position 2 (PubMed:1922338). The peptide-bound form interacts with NK cell inhibitory receptor KIR3DL1 and inhibits NK cell activation in a peptide-specific way, being particularly sensitive to the nature of the amino acid side chain at position 8 of the antigenic peptide (PubMed:15657948, PubMed:8879234). KIR3DL1 fails to recognize HLA-B*27:05 in complex with B2M and EBV/HHV-4 EBNA6 (RRIYDLIEL) peptide, which can lead to increased activation of NK cells during infection (PubMed:15657948). May present an altered repertoire of peptides in the absence of TAP1-TAP2 and TAPBPL (PubMed:9620674). Allele B*40:01: Presents immunodominant viral epitopes derived from EBV/HHV-4 LMP2 (IEDPPFNSL) and SARS-CoV-2 N/nucleoprotein (MEVTPSGTWL), triggering memory CD8-positive T cell response (PubMed:18991276, PubMed:32887977). Displays self-peptides sharing a signature motif, namely a Glu at position 2 and a Leu anchor residue at the C-terminus (PubMed:18991276). Allele B*41:01: Displays self-peptides sharing a signature motif, namely a Glu at position 2 and Ala or Pro anchor residues at the C-terminus. Allele B*44:02: Presents immunodominant viral epitopes derived from EBV/HHV-4 EBNA4 (VEITPYKPTW) and EBNA6 (AEGGVGWRHW, EENLLDFVRF), triggering memory CD8-positive T cell response (PubMed:18991276, PubMed:9620674). Displays self-peptides sharing a signature motif, namely a Glu at position 2 and Phe, Tyr or Trp anchor residues at the C-terminus (PubMed:18991276). Allele B*45:01: Displays self-peptides sharing a signature motif, namely a Glu at position 2 and Ala or Pro anchor residues at the C-terminus. Allele B*46:01: Preferentially presents nonameric peptides sharing a signature motif, namely Ala and Leu at position 2 and Tyr, Phe, Leu, or Met anchor residues at the C-terminus. The peptide-bound form interacts with KIR2DL3 and inhibits NK cell cytotoxic response in a peptide-specific way. Allele B*47:01: Displays self-peptides sharing a signature motif, namely an Asp at position 2 and Leu or Met anchor residues at the C-terminus. Allele B*49:01: Displays self-peptides sharing a signature motif, namely a Glu at position 2 and Ile or Val anchor residues at the C-terminus. Allele B*50:01: Displays self-peptides sharing a signature motif, namely a Glu at position 2 and Ala or Pro anchor residues at the C-terminus. Allele B*51:01: Presents an octomeric HIV-1 epitope derived from gag-pol (TAFTIPSI) to the public TRAV17/TRBV7-3 TCR clonotype, strongly suppressing HIV-1 replication. Allele B*54:01: Displays peptides sharing a common signature motif, namely a Pro residue at position 2 and Ala anchor residue at the C-terminus. Allele B*55:01: Displays peptides sharing a common signature motif, namely a Pro residue at position 2 and Ala anchor residue at the C-terminus. Allele B*56:01: Displays peptides sharing a common signature motif, namely a Pro residue at position 2 and Ala anchor residue at the C-terminus. Allele B*57:01: The peptide-bound form recognizes KIR3DL1 and inhibits NK cell cytotoxic response. Presents HIV gag peptides (immunodominant KAFSPEVIPMF and subdominant KALGPAATL epitopes) predominantly to CD8-positive T cell clones expressing a TRAV41-containing TCR, triggering HLA-B-restricted T cell responses. Allele B*67:01: Displays peptides sharing a common signature motif, namely a Pro residue at position 2 and Leu anchor residue at the C-terminus.

Additional Targets

HLA-A, HLA-C

Alternative names

Recommended products

Anti-HLA Class 1 ABC antibody [EMR8-5] is a mouse monoclonal antibody that is used to detect HLA Class 1 ABC in Flow cytometry, IHC-P, Western blot. Suitable for Human, Recombinant fragment samples.

- Recognises the heavy chains of Human HLA class 1 A, B, and C
- Cited in over 140 publications
- Trusted since 2008

Key facts

Isotype
IgG1
Form
Liquid
Clonality
Monoclonal
Clone number
EMR8-5
Purification technique
Affinity purification Protein A
Specificity

ab70328 reacts with the heavy chains of human HLA class 1 A, -B, and -C.

Light chain type
kappa
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Notes

Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328) is a House Mouse Monoclonal antibody and is validated for use in Flow Cyt, IHC-P, WB in human samples.

Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328) has been cited over 152 times in peer reviewed journals and is trusted by the scientific community.

Abcams high quality validation processes ensure Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328) has high sensitivity and specificity.

Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328) has 19 independent reviews from customers.

Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328) specifically detects HLA Class 1 ABC (UniProt ID: P01889; Molecular weight: 40kDa) and is sold in 100 uL selling sizes.
The production method has been switched from hybridoma to recombinant on 06th June 2025.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

5 product images

  • Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328), expandable thumbnail

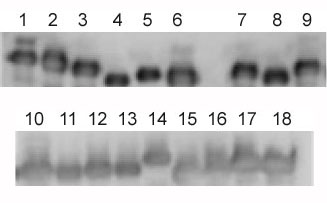

    Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    HLA Class 1 ABC Western blot staining using mouse Anti-HLA Class 1 ABC antibody

    Western blot analysis of ab70328 reactivity using recominant HLA heavy chains.

    Lanes 1-6: HLA-A

    Lanes 7-14: HLA-B

    Lanes 15-18: HLA-C


    This image was from a different batch produced using hybridoma method

    All lanes: Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    Lane 1: A*2402

    Lane 2: A*0101

    Lane 3: A*1101

    Lane 4: A*0201

    Lane 5: A*0207

    Lane 6: A2402

    Lane 7: B*0702

    Lane 8: B*0801

    Lane 9: B*1501

    Lane 10: B*3501

    Lane 11: B*4001

    Lane 12: B*4002

    Lane 13: B*4006

    Lane 14: B*4403

    Lane 15: Cw*0102

    Lane 16: Cw*0801

    Lane 17: Cw*1202

    Lane 18: Cw*1502

  • Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328), expandable thumbnail

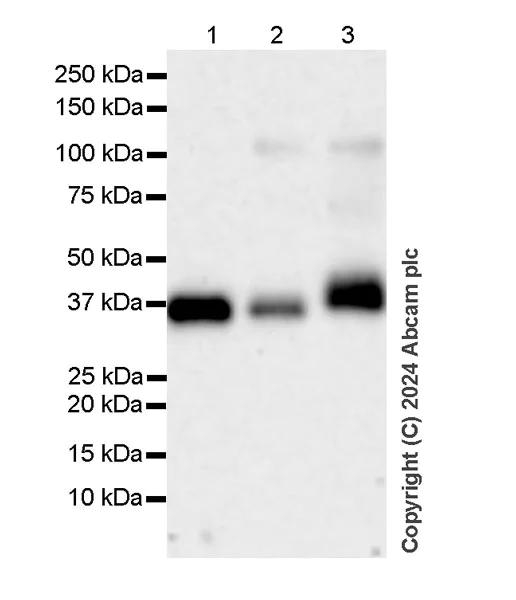

    Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    HLA Class 1 ABC Western blot staining using mouse Anti-HLA Class 1 ABC antibody

    This image was from a different batch produced using hybridoma method

    All lanes: Western blot - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    Lane 1: Human oral cancer cell line OSC20

    Lane 2: HLA-A2402 gene transfected OSC20

    Lane 3: Human Leukemia cell line K562

    Lane 4: Recombinant HLA-A2402 heavy chain

  • Flow Cytometry - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328), expandable thumbnail

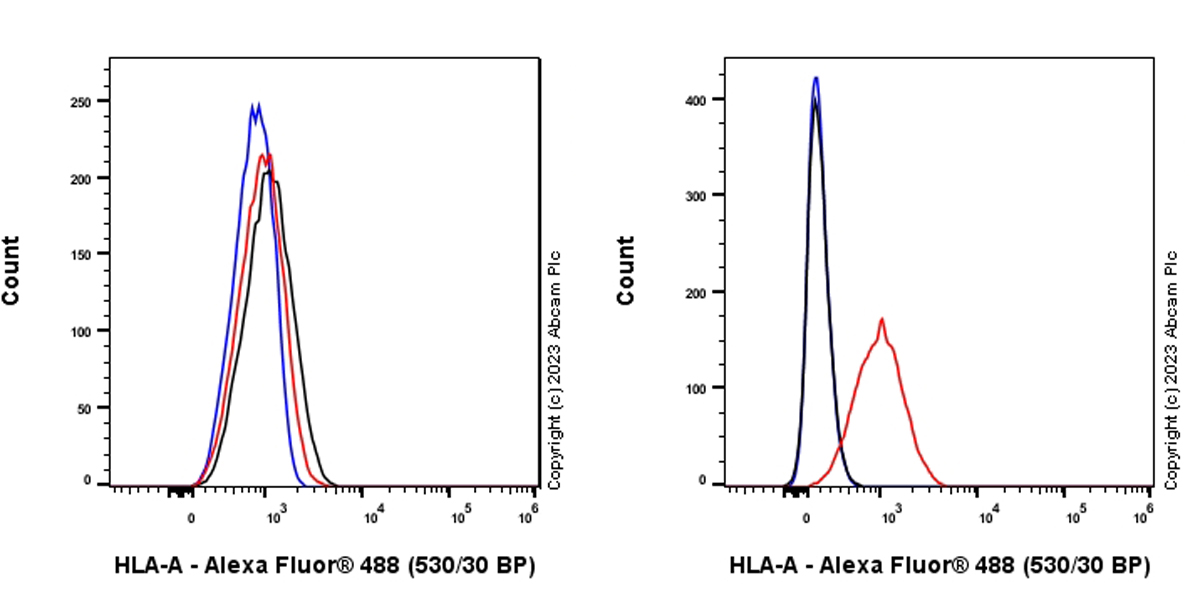

    Flow Cytometry - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    HLA Class 1 ABC Flow Cytometry staining using mouse Anti-HLA Class 1 ABC antibody

    Flow cytometric analysis of K562(human chronic myelogenous leukemia lymphoblast, Left) / Ramos(human Burkitt's lymphoma B lymphocyte, Right) cells labelling HLA Class 1 ABC with ab70328 at 1/50 dilution (0.1&micor;g)/Red followed by a secondary antibody Goat anti-Mouse IgG (Alexa Fluor® 488, Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) used at a 1/5000 dilution compared with isotype control Mouse monoclonal IgG / Black and unlabelled control Cell without incubation with primary antibody and secondary antibody / Blue.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    HLA Class 1 ABC Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining of Human tonsil tissue using mouse Anti-HLA Class 1 ABC antibody

    Immunohistochemical analysis of paraffin-embedded Human tonsil tissue using ab70328 at a 1/20000 dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Positive staining on human tonsil.
    The section was incubated with ab70328 for 10 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure.
    The immunostaining was performed on a Leica Biosystems BOND® RX instrument
    Hematoxylin was used as a counter stain.

    Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HLA Class 1 ABC antibody [EMR8-5] (ab70328)

    HLA Class 1 ABC Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) staining of Human skeletal muscle tissue using mouse Anti-HLA Class 1 ABC antibody

    Immunohistochemical analysis of paraffin-embedded Human skeletal muscle tissue using ab70328 at a 1/20000 dilution followed by a ready to use LeicaDS9800 (Bond™ Polymer Refine Detection).

    Low expression tissue: positive staining on blood vessel of human skeletal muscle.
    The section was incubated with ab70328 for 10 mins at room temperature, followed by anti-mouse IgG1 antibody (Rabbit monoclonal [M1gG51-4] Anti-Mouse IgG1 H&L ab125913) for 8 mins during the LeicaDS9800 kit staining procedure.
    The immunostaining was performed on a Leica Biosystems BOND® RX instrument
    Hematoxylin was used as a counter stain.

    Heat mediated antigen retrieval was performed with Citrate buffer (pH 6.0, Epitope Retrieval Solution 1) for 20 mins.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
