Mouse Monoclonal HLA-DRA antibody. Suitable for Flow Cyt and reacts with Human samples. Cited in 12 publications. Immunogen corresponding to Cell preparation containing HLA-DRA protein.


Images

Flow Cytometry - Anti-HLA-DR antibody [L243] (AB136320), expandable thumbnail
  • Flow Cytometry - Anti-HLA-DR antibody [L243] (AB136320), expandable thumbnail

Publications

Key facts

Isotype
IgG2a
Host species
Mouse
Storage buffer

pH: 7.4
Preservative: 0.1% Sodium azide
Constituents: PBS

Form
Liquid
Clonality
Monoclonal

Immunogen

  • Cell preparation containing HLA-DRA protein. The exact immunogen used to generate this antibody is proprietary information. Database link P01903

Abcam Recommends

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
Flow Cyt
Human
Tested

Tested
Tested

Species
Human
Dilution info
1-4 µg/mL
Notes

ab170191 - Mouse monoclonal IgG2a, is suitable for use as an isotype control with this antibody.

Associated Products

Select an associated product type

4 products for Alternative Product

Target data

Function

An alpha chain of antigen-presenting major histocompatibility complex class II (MHCII) molecule. In complex with the beta chain HLA-DRB, displays antigenic peptides on professional antigen presenting cells (APCs) for recognition by alpha-beta T cell receptor (TCR) on HLA-DR-restricted CD4-positive T cells. This guides antigen-specific T-helper effector functions, both antibody-mediated immune response and macrophage activation, to ultimately eliminate the infectious agents and transformed cells (PubMed:15265931, PubMed:15322540, PubMed:17334368, PubMed:22327072, PubMed:24190431, PubMed:27591323, PubMed:29884618, PubMed:31495665, PubMed:8145819, PubMed:9075930). Typically presents extracellular peptide antigens of 10 to 30 amino acids that arise from proteolysis of endocytosed antigens in lysosomes (PubMed:8145819). In the tumor microenvironment, presents antigenic peptides that are primarily generated in tumor-resident APCs likely via phagocytosis of apoptotic tumor cells or macropinocytosis of secreted tumor proteins (PubMed:31495665). Presents peptides derived from intracellular proteins that are trapped in autolysosomes after macroautophagy, a mechanism especially relevant for T cell selection in the thymus and central immune tolerance (PubMed:17182262, PubMed:23783831). The selection of the immunodominant epitopes follows two processing modes: 'bind first, cut/trim later' for pathogen-derived antigenic peptides and 'cut first, bind later' for autoantigens/self-peptides (PubMed:25413013). The anchor residue at position 1 of the peptide N-terminus, usually a large hydrophobic residue, is essential for high affinity interaction with MHCII molecules (PubMed:8145819).

Alternative names

Recommended products

Mouse Monoclonal HLA-DRA antibody. Suitable for Flow Cyt and reacts with Human samples. Cited in 12 publications. Immunogen corresponding to Cell preparation containing HLA-DRA protein.

Key facts

Isotype
IgG2a
Form
Liquid
Clonality
Monoclonal
Immunogen
  • Cell preparation containing HLA-DRA protein. The exact immunogen used to generate this antibody is proprietary information. Database link P01903
Clone number
L243
Purification technique
Affinity purification Protein A
Specificity

ab136320 recognizes specifically HLA-DR molecules both peptide-loaded and empty.

Light chain type
kappa
Concentration
Loading...
Purification notes

Purified from cell culture supernatant by protein A affinity chromatography. Purity: > 95% (by SDS-PAGE).

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Flow Cytometry - Anti-HLA-DR antibody [L243] (ab136320), expandable thumbnail

    Flow Cytometry - Anti-HLA-DR antibody [L243] (ab136320)

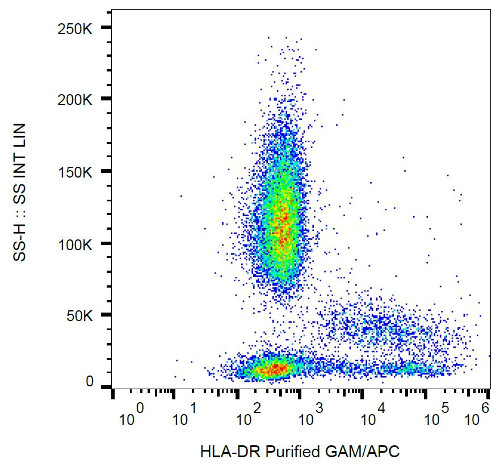

    Flow Cytometry analysis of human peripheral blood cells labeling HLA DR with ab136320, followed by a Goat anti-mouse-APC secondary.

  • Flow Cytometry - Anti-HLA-DR antibody [L243] (ab136320), expandable thumbnail

    Flow Cytometry - Anti-HLA-DR antibody [L243] (ab136320)

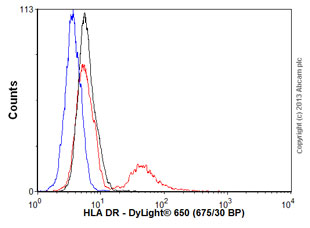

    Human peripheral blood lymphocytes stained with ab136320 (red line). Human whole blood was processed using a modified protocol based on Chow et al, 2005 (PMID: 16080188).

    In brief, human whole blood was fixed in 4% formaldehyde (methanol-free) for 10 minutes at 22°C. Red blood cells were then lyzed by the addition of Triton X-100 (final concentration - 0.1%) for 15 minutes at 37°C. For experimentation, cells were treated with 50% methanol (-20°C) for 15 minutes at 4°C. Cells were then incubated with the antibody (ab136320, 0.1μg/1x106 cells) for 30 minutes at 4°C. The secondary antibody used was Alexa Fluor® 488 goat anti-mouse IgG (H&L) (Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) ab150113) at 1/2000 dilution for 30 minutes at 4°C. Isotype control antibody (black line) was mouse IgG2a [ICIGG2A] (Mouse IgG2a, Kappa Monoclonal [B12/8] - Isotype Control ab91361, 0.1μg/1x106cells) used under the same conditions. Unlabeled sample (blue line) was also used as a control. Acquisition of >30,000 total events were collected using a solid-state 25mW red diode laser (635nm) and 675/30 bandpass filter. Gating strategy - peripheral blood lymphocytes.

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
