Anti-HMGB1 antibody [EPR3506]
- 20ul selling size
- RabMAb
- Recombinant
- KO Validated
- What is this?
Be the first to review this product! Submit a review
|
(14 Publications)
Rabbit Recombinant Monoclonal HMGB1 antibody. Suitable for IHC-P, WB, Flow Cyt (Intra) and reacts with Human, Mouse samples. Cited in 14 publications.
View Alternative Names
HMG1, HMGB1, High mobility group protein B1, High mobility group protein 1, HMG-1
- Flow Cyt (Intra)
Lab

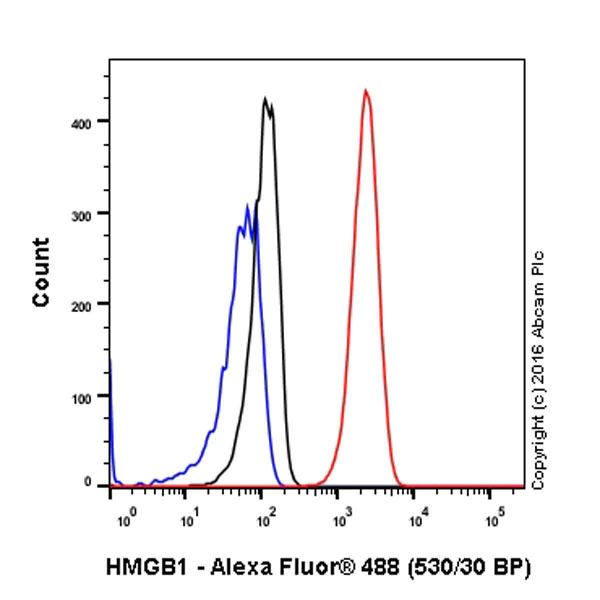

Flow Cytometry (Intracellular) - Anti-HMGB1 antibody [EPR3506] (AB92310)
ab92310 staining HMGB1 in the human cell line HeLa (human cervix adenocarcinoma) by intracellular flow cytometry. Cells were fixed with 4% paraformaldehyde, permeabilized with 90% methanol and the sample was incubated with the primary antibody at a dilution of 1/20. A goat anti rabbit IgG (Alexa Fluor® 488) at a dilution of 1/2000 was used as the secondary antibody.
Isoytype control : Rabbit monoclonal IgG (Black)
Unlabelled control : Cell without incubation with primary antibody and secondary antibody (Blue)
- IHC-P
Supplier Data
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HMGB1 antibody [EPR3506] (AB92310)
ab92310 at 1/100 dilution staining HMGB1 in Human Liver by Immunohistochemistry, Paraffin-embedded tissue. The use of an HRP/AP polymerized antibody is recommended for a secondary antibody.
Perform heat mediated antigen retrieval before commencing with IHC staining protocol.
- WB
Supplier Data

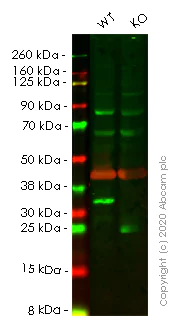

Western blot - Anti-HMGB1 antibody [EPR3506] (AB92310)
Lanes 1 - 4 : Merged signal (red and green). Green - ab92310 observed at 30 kDa. Red - loading control, ab9484, observed at 37 kDa.
ab92310 was shown to recognize HMGB1 in wild-type HAP1 cells as signal was lost at the expected MW in HMGB1 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and HMGB1 knockout samples were subjected to SDS-PAGE. ab92310 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-HMGB1 antibody [EPR3506] (ab92310) at 1/1000 dilution
Lane 1:
Wild-type HAP1 whole cell lysate at 20 µg
Lane 2:
HMGB1 knockout HAP1 whole cell lysate at 20 µg
Lane 3:
Jurkat whole cell lysate at 20 µg
Lane 4:
HeLa whole cell lysate at 20 µg
Predicted band size: 24 kDa
false
- WB
Unknown

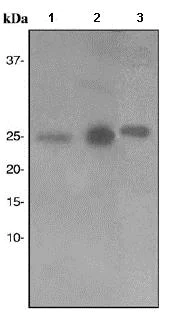

Western blot - Anti-HMGB1 antibody [EPR3506] (AB92310)
All lanes:
Western blot - Anti-HMGB1 antibody [EPR3506] (ab92310) at 1/1000 dilution
Lane 1:
SKBR3 cell lysate at 10 µg
Lane 2:
HeLa cell lysate at 10 µg
Lane 3:
Molt4 cell lysate at 10 µg
Secondary
All lanes:
goat anti-rabbit HRP at 1/2000 dilution
Predicted band size: 24 kDa
Observed band size: 25 kDa
false
- WB
Lab

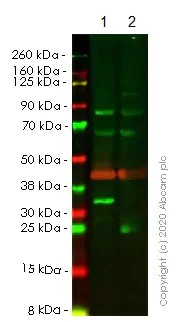

Western blot - Anti-HMGB1 antibody [EPR3506] (AB92310)
Lanes 1- 2 : Merged signal (red and green). Green - ab92310 observed at 30 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.
ab92310 was shown to react with HMGB1 in wild-type HeLa cells in western blot. Loss of signal at the expected size was observed when knockout cell line ab255395 (knockout cell lysate ab263782) was used. The band observed in lane 2 below 25kDa may represent truncated forms and cleaved fragments. Wild-type HeLa and HMGB1 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab92310 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-HMGB1 antibody [EPR3506] (ab92310) at 1/1000 dilution
Lane 1:
Wild-type HeLa cell lysate at 20 µg
Lane 2:
HMGB1 knockout HeLa cell lysate at 20 µg
Predicted band size: 24 kDa
Observed band size: 30 kDa
false
- WB
Lab
Western blot - Anti-HMGB1 antibody [EPR3506] (AB92310)
Lanes 1- 2 : Merged signal (red and green). Green - ab92310 observed at 30 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.
ab92310 was shown to react with HMGB1 in wild-type HeLa cells in western blot. Loss of signal at the expected size was observed when CRISPR/Cas9 edited cell line ab255395 (CRISPR/Cas9 edited cell lysate ab263782) was used. The band observed in lane 2 below 25kDa may represent truncated forms and cleaved fragments. Wild-type HeLa and HMGB1 CRISPR/Cas9 edited HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab92310 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 1000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.
All lanes:
Western blot - Anti-HMGB1 antibody [EPR3506] (ab92310) at 1/1000 dilution
Lane 1:
Wild-type HeLa cell lysate at 20 µg
Lane 2:
HMGB1 CRISPR/Cas9 edited HeLa cell lysate at 20 µg
Lane 2:
Western blot - Human HMGB1 knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-hmgb1-knockout-hela-cell-line-ab255395'>ab255395</a>)
Predicted band size: 24 kDa
Observed band size: 30 kDa
false
Related conjugates and formulations (1)
-
Anti-HMGB1 antibody [EPR3506] - BSA and Azide free
Reactivity data
Product details
Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.
What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:
- - High batch-to-batch consistency and reproducibility
- - Improved sensitivity and specificity
- - Long-term security of supply
- - Animal-free batch production
For more information, read more on recombinant antibodies.
Properties and storage information
Form
Purification technique
Storage buffer
Shipped at conditions
Appropriate short-term storage conditions
Appropriate long-term storage conditions
Aliquoting information
Storage information
