Anti-HMGB2 antibody [EPR6301]

• IHC-P

Unknown

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HMGB2 antibody [EPR6301] (AB124670)

ab124670, at a 1/250 dilution, staining HMGB2 in paraffin embedded Human breast tissue by Immunohistochemistry.

Perform heat mediated antigen retrieval via the pressure cooker method before commencing with IHC staining protocol.

• ICC/IF

Lab

Immunocytochemistry/ Immunofluorescence - Anti-HMGB2 antibody [EPR6301] (AB124670)

Immunocytochemistry/Immunofluorescence analysis of PC-12 cells labelling HMGB2 with ab124670 at 1/500. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody.
Control : PBS only.
Nuclear counter stain : DAPI.

• WB

Lab

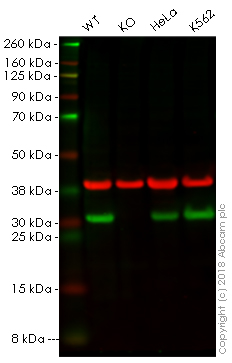

Western blot - Anti-HMGB2 antibody [EPR6301] (AB124670)

Lanes 1 - 4 : Merged signal (red and green). Green - ab124670 observed at 24 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab124670 was shown to specifically react with HMGB2 in wild-type HAP1 cells as signal was lost in HMGB2 knockout cells. Wild-type and HMGB2 knockout samples were subjected to SDS-PAGE. ab124670 and ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/10000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-HMGB2 antibody [EPR6301] (ab124670) at 1/10000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

HMGB2 knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HeLa whole cell lysate at 20 µg

Lane 4:

K562 whole cell lysate at 20 µg

Predicted band size: 24 kDa

false

• WB

Unknown

Western blot - Anti-HMGB2 antibody [EPR6301] (AB124670)

All lanes:

Western blot - Anti-HMGB2 antibody [EPR6301] (ab124670) at 1/10000 dilution

Lane 1:

K562 cell lysates at 10 µg

Lane 2:

HeLa cell lysates at 10 µg

Lane 3:

PC12 cell lysates at 10 µg

Secondary

All lanes:

Goat-anti-rabbit HRP at 1/2000 dilution

Predicted band size: 24 kDa

false

• WB

Lab

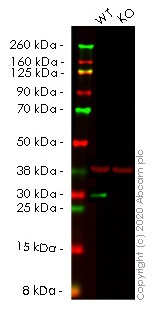

Western blot - Anti-HMGB2 antibody [EPR6301] (AB124670)

Lanes 1- 2 : Merged signal (red and green). Green - ab124670 observed at 24 kDa. Red - Anti-GAPDH antibody [6C5] - Loading Control (ab8245) observed at 37 kDa.

ab124670 was shown to react with HMGB2 in wild-type HEK-293T cells in western blot. Loss of signal was observed when knockout cell line ab266358 (knockout cell lysate ab257156) was used. Wild-type HEK-293T and HMGB2 knockout HEK-293T cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab124670 and Anti-GAPDH antibody [6C5] - Loading Control (ab8245) overnight at 4°C at a 1 in 2000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-HMGB2 antibody [EPR6301] (ab124670) at 1/2000 dilution

Lane 1:

Wild-type HEK-293T cell lysate at 20 µg

Lane 2:

HMGB2 knockout HEK-293T cell lysate at 20 µg

Predicted band size: 24 kDa

Observed band size: 24 kDa

false

• OI-RD Scanning

Unknown

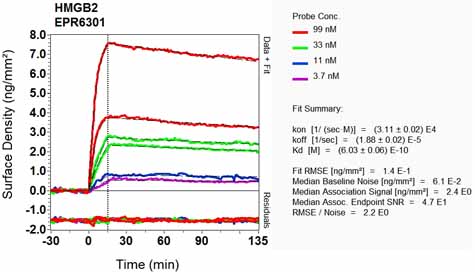

OI-RD Scanning - Anti-HMGB2 antibody [EPR6301] (AB124670)

We have systematically measured KD (the equilibrium dissociation constant between the antibody and its antigen), of more than 840 recombinant antibodies to assess not only their individual KD values but also to see the average affinity of antibody. Based on the comparison with published literature values for mouse monoclonal antibodies, Recombinant antibodies appear to be on average 1-2 order of magnitude higher affinity.
