Anti-hnRNP L antibody [4D11]

4 product images

•

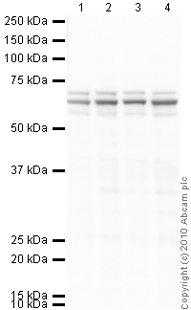

  Western blot - Anti-hnRNP L antibody [4D11] (ab6106)

  All lanes: Western blot - Anti-hnRNP L antibody [4D11] (ab6106) at 1 µg/mL

  Lane 1: HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

  Lane 2: Jurkat (Human T cell lymphoblast-like cell line) Whole Cell Lysate at 10 µg

  Lane 3: MCF7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 10 µg

  Lane 4: HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate at 10 µg

  Secondary

  All lanes: Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (Goat Anti-Mouse IgG H&L (HRP) preadsorbed ab97040) at 1/5000 dilution

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 64 kDa

  Observed band size: 60 kDa, 64 kDa, 68 kDa

  Exposure time: 1min

•

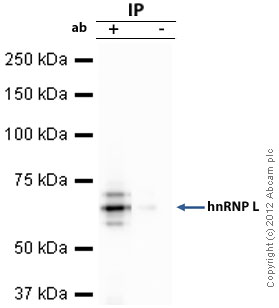

  Immunoprecipitation - Anti-hnRNP L antibody [4D11] (ab6106)

  hnRNP L was immunoprecipitated using 0.5mg Hela whole cell extract, 5µg of Mouse monoclonal to hnRNP L (ab6106) and 50µl of protein G magnetic beads (+). No antibody was added to the control (-).
  The antibody was incubated under agitation with Protein G beads for 10min, Hela whole cell extract lysate diluted in RIPA buffer was added to each sample and incubated for a further 10min under agitation.
  Proteins were eluted by addition of 40µl SDS loading buffer and incubated for 10min at 70^oC; 10µl of each sample was separated on a SDS PAGE gel, transferred to a nitrocellulose membrane, blocked with 5% BSA and probed with ab6106.
  Secondary: Goat polyclonal to mouse IgG light chain specific (HRP) at 1/5000 dilution.
  Band: 65kDa: hnRNP L. Non specific - 70kDa and 55kDa: We are unsure as to the identity of this extra band.

  All lanes: Immunoprecipitation - Anti-hnRNP L antibody [4D11] (ab6106)

  Predicted band size: 64 kDa

•

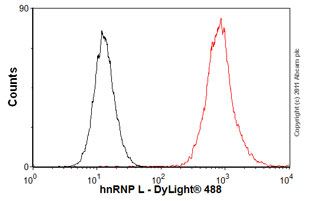

  Flow Cytometry - Anti-hnRNP L antibody [4D11] (ab6106)

  Overlay histogram showing Jurkat cells stained with ab6106 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (ab6106, 1µg/1x10⁶ cells) for 30 min at 22ºC. The secondary antibody used was DyLight® 488 goat anti-mouse IgG (H+L) (Goat Anti-Mouse IgG H&L (DyLight® 488) preadsorbed ab96879) at 1/500 dilution for 30 min at 22ºC. Isotype control antibody (black line) was mouse IgG1 [ICIGG1] (Mouse IgG1, Kappa Monoclonal [B11/6] - Isotype Control ab91353, 2µg/1x10⁶ cells) used under the same conditions. Acquisition of >5,000 events was performed.



•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-hnRNP L antibody [4D11] (ab6106)

  IHC image of ab6106 staining in human normal skin formalin fixed paraffin embedded tissue section, performed on a Leica Bond^TM system using the standard protocol F. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20 mins. The section was then incubated with ab6106, 1µg/ml, for 15 mins at room temperature and detected using an HRP conjugated compact polymer system. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX.

  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.
