Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

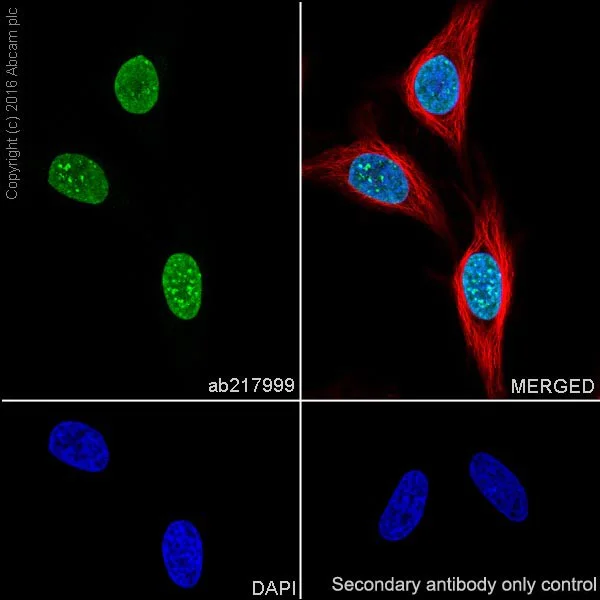

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling HP1 gamma/CBX3 with ab217999 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on HeLa cell line.

The nuclear counterstain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

• Flow Cyt (Intra)

Supplier Data

Flow Cytometry (Intracellular) - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

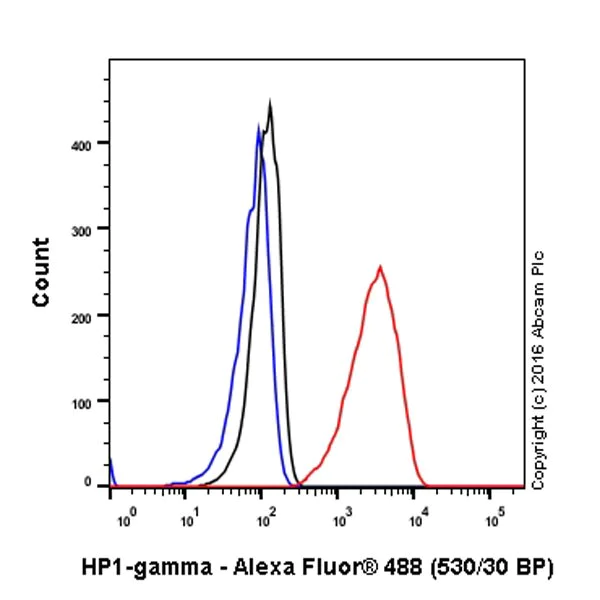

Intracellular flow cytometric analysis of 4% paraformaldehyde-fixed HeLa (Human epithelial cell line from cervix adenocarcinoma) cells labeling HP1 gamma/CBX3 with ab217999 at 1/400 dilution (red) compared with a rabbit monoclonal IgG isotype control (ab172730; black) and an unlabeled control (cells without incubation with primary antibody and secondary antibody; blue). Goat anti rabbit IgG (Alexa Fluor^® 488) at 1/2000 dilution was used as the secondary antibody.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

Immunohistochemical analysis of paraffin-embedded human testis tissue labeling HP1 gamma/CBX3 with ab217999 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nuclear staining on human testis is observed [PMID : 19786570]. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

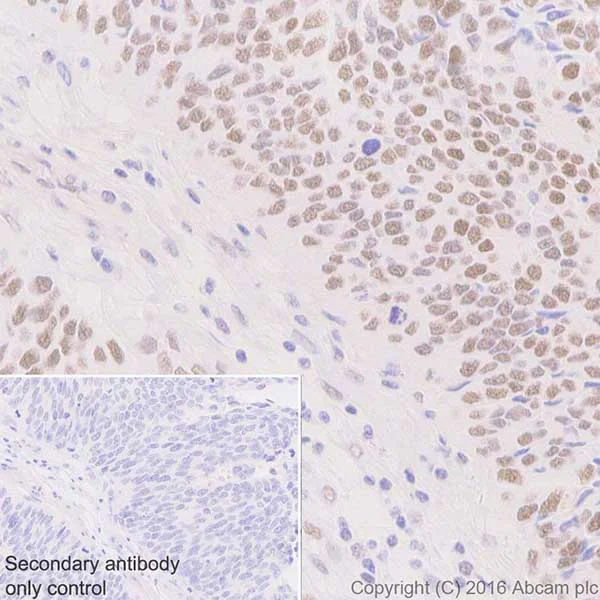

Immunohistochemical analysis of paraffin-embedded human bladder cancer tissue labeling HP1 gamma/CBX3 with ab217999 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nuclear staining on tumor cells of human bladder cancer is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IP

Supplier Data

Immunoprecipitation - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

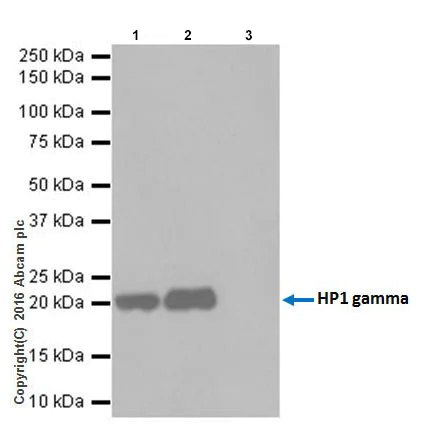

HP1 gamma/CBX3 was immunoprecipitated from 0.35 mg of HeLa (Human epithelial cell line from cervix adenocarcinoma) whole cell lysate with ab217999 at 1/30 dilution. Western blot was performed from the immunoprecipitate using ab217999 at 1/1000 dilution. VeriBlot for IP Detection Reagent (HRP) (ab131366), was used for detection at 1/10000 dilution.

Lane 1 : HeLa whole cell lysate, 10 μg (Input).

Lane 2 : ab217999 IP in HeLa whole cell lysate.

Lane 3 : Rabbit monoclonal IgG (ab172730) instead of ab217999 in HeLa whole cell lysate.

Blocking and dilution buffer and concentration : 5% NFDM/TBST.

Exposure time : 1 second.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

All lanes:

Immunoprecipitation - Anti-HP1 gamma/CBX3 antibody [EPR19802] (<a href='/en-us/products/primary-antibodies/hp1-gamma-cbx3-antibody-epr19802-ab217999'>ab217999</a>)

Predicted band size: 20 kDa

Observed band size: 22 kDa

false

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

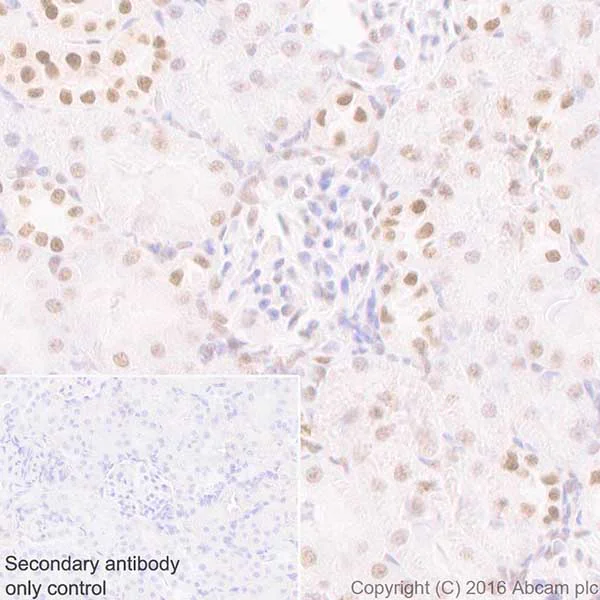

Immunohistochemical analysis of paraffin-embedded rat kidney tissue labeling HP1 gamma/CBX3 with ab217999 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nuclear staining on rat kidney is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• IHC-P

Supplier Data

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

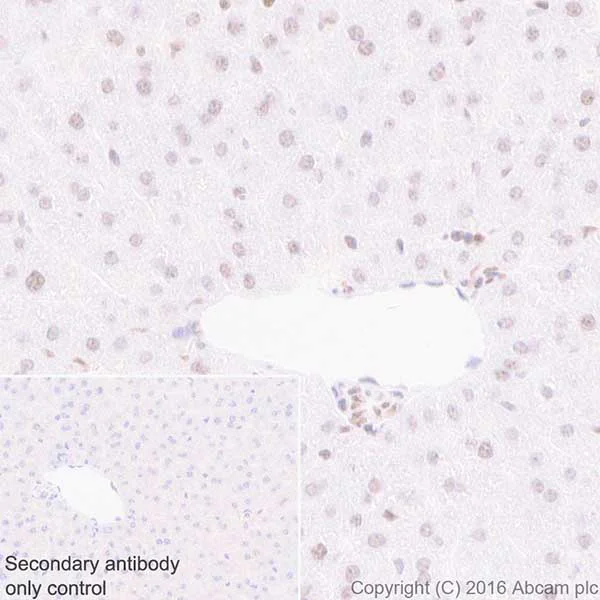

Immunohistochemical analysis of paraffin-embedded mouse liver tissue labeling HP1 gamma/CBX3 with ab217999 at 1/2000 dilution, followed by Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution. Nuclear staining on hepatocytes of mouse liver is observed. Counter stained with Hematoxylin.

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat Anti-Rabbit IgG H&L (HRP) (ab97051) at 1/500 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

Perform heat mediated antigen retrieval with Tris/EDTA buffer pH 9.0 before commencing with IHC staining protocol.

• ICC/IF

Supplier Data

Immunocytochemistry/ Immunofluorescence - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

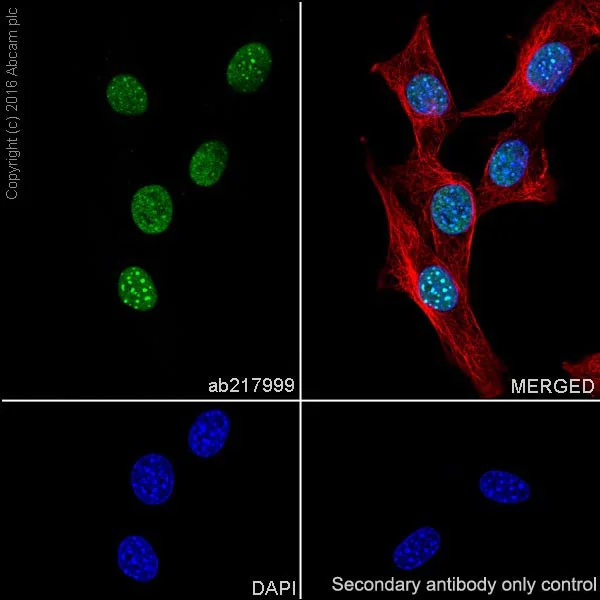

Immunofluorescent analysis of 4% paraformaldehyde-fixed, 0.1% Triton X-100 permeabilized NIH/3T3 (Mouse embryonic fibroblast cell line) cells labeling HP1 gamma/CBX3 with ab217999 at 1/1000 dilution, followed by Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) secondary antibody at 1/1000 dilution (green). Confocal image showing nuclear staining on NIH/3T3 cell line.

The nuclear counterstain is DAPI (blue). Tubulin is detected with ab195889 (Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594)) at 1/200 dilution (red).

Secondary antibody only control : Used PBS instead of primary antibody, secondary antibody is Goat anti-rabbit IgG (Alexa Fluor^® 488) (ab150077) at 1/1000 dilution.

This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (ab217999).

• WB

Lab

Western blot - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

This data was developed using the same antibody clone in a different buffer formulation (ab217999).

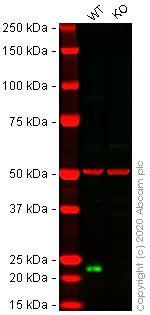

Lanes 1- 2 : Merged signal (red and green). Green - ab217999 observed at 25 kDa. Red - Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) observed at 50 kDa.

ab217999 was shown to react with HP1 gamma/CBX3 in wild-type HeLa cells in western blot. Loss of signal was observed when knockout cell line ab261744 (knockout cell lysate ab257110) was used. Wild-type HeLa and CBX3 knockout HeLa cell lysates were subjected to SDS-PAGE. Membrane was blocked for 1 hour at room temperature in 0.1% TBST with 3% non-fat dried milk. ab217999 and Anti-alpha Tubulin antibody [DM1A] - Loading Control (ab7291) overnight at 4°C at a 1 in 2000 dilution and a 1 in 20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^®800CW) preadsorbed (ab216773) and Goat anti-Mouse IgG H&L (IRDye^®680RD) preadsorbed (ab216776) secondary antibodies at 1 in 20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-HP1 gamma/CBX3 antibody [EPR19802] (<a href='/en-us/products/primary-antibodies/hp1-gamma-cbx3-antibody-epr19802-ab217999'>ab217999</a>) at 1/2000 dilution

Lane 1:

Wild-type HeLa cell lysate at 20 µg

Lane 2:

CBX3 knockout HeLa cell lysate at 20 µg

Lane 2:

Western blot - Human CBX3 (HP1 gamma) knockout HeLa cell line (<a href='/en-us/products/cell-lines/human-cbx3-hp1-gamma-knockout-hela-cell-line-ab261744'>ab261744</a>)

Predicted band size: 20 kDa

Observed band size: 25 kDa

false

• WB

Lab

Western blot - Anti-HP1 gamma/CBX3 antibody [EPR19802] - BSA and Azide free (AB223535)

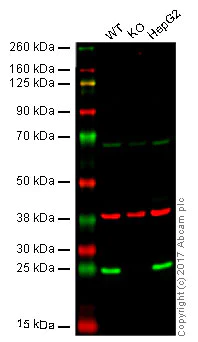

This WB data was generated using the same anti-HP1 gamma/CBX3 antibody clone [EPR19802] in a different buffer format (cat# ab217999).

Lane 1 : Wild type HAP1 whole cell lysate (20 μg)
Lane 2 : CBX3 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HepG2 whole cell lysate (20 μg)

Lanes 1 - 3 : Merged signal (red and green). Green - ab217999 observed at 25 kDa. Red - loading control, ab9484, observed at 37 kDa.

ab217999 was shown to recognize CBX3 when CBX3 knockout samples were used, along with additional cross-reactive bands. Wild-type and CBX3 knockout samples were subjected to SDS-PAGE. ab217999 and ab9484 (Mouse anti GAPDH loading control) were incubated overnight at 4°C at 2000 dilution and 1/10000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-HP1 gamma/CBX3 antibody [EPR19802] (<a href='/en-us/products/primary-antibodies/hp1-gamma-cbx3-antibody-epr19802-ab217999'>ab217999</a>)

Predicted band size: 20 kDa
