HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)] (AB200798)

IHC image of Annexin-2/ANXA2 staining in a section of formalin-fixed paraffin-embedded human prostate tissue (normal)*, performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution

1. for 20mins. The section was then incubated with ab200798, 1/100 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

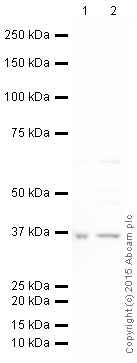

• WB

Lab

Western blot - HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)] (AB200798)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab200798 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)] (ab200798) at 1/5000 dilution

Lane 1:

SKBR3 (Human adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

K562 (Human erythromyeloblastoid leukemia cell line) Whole Cell Lysate at 10 µg

Predicted band size: 38 kDa

Observed band size: 37 kDa

true

Exposure time: 4min

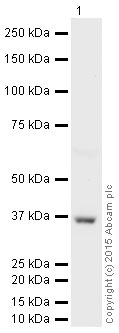

• WB

Lab

Western blot - HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)] (AB200798)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab200798 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-Annexin-2/ANXA2 antibody [EPR13052(B)] (ab200798) at 1/5000 dilution

All lanes:

HeLa (Human epithelial carcinoma cell line) Whole Cell Lysate at 10 µg

Predicted band size: 38 kDa

Observed band size: 37 kDa

true

Exposure time: 20s
