HRP Anti-CPT1A antibody [8F6AE9]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-CPT1A antibody [8F6AE9] (AB198494)

IHC image of CPT1A staining in a section of formalin-fixed paraffin-embedded normal human colon tissue*, performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab198494 at 1/100 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• WB

Lab

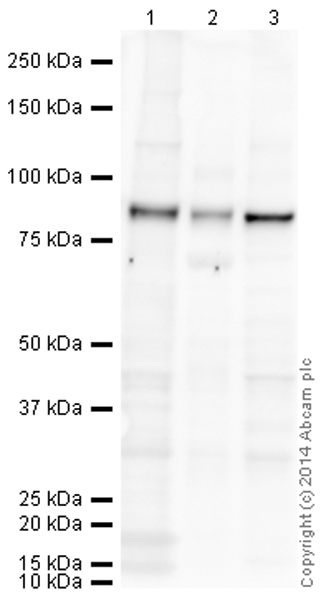

Western blot - HRP Anti-CPT1A antibody [8F6AE9] (AB198494)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab198494 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-CPT1A antibody [8F6AE9] (ab198494) at 1/5000 dilution

Lane 1:

HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate at 20 µg

Lane 2:

Heart (Human) Tissue Lysate - adult normal tissue at 20 µg

Lane 3:

Liver (Rat) Tissue Lysate at 20 µg

Predicted band size: 88 kDa

Observed band size: 88 kDa

true

Exposure time: 1min

• WB

Lab

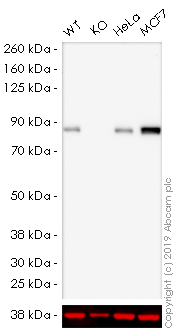

Western blot - HRP Anti-CPT1A antibody [8F6AE9] (AB198494)

Lanes 1 - 4 : Merged signal (red and green). Green - ab198494 observed at 88 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab198494 was shown to specifically react with in wild-type HAP1 cells as signal was lost in CPT1A knockout cells. Wild-type and CPT1A knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% NF Milk. ab198494 and ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 1/5000 dilution and 1/20000 dilution respectively. The loading control was imaged using the Licor Odyssey CLx prior to blots being developed with ECL technique.

All lanes:

Western blot - HRP Anti-CPT1A antibody [8F6AE9] (ab198494) at 1/5000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

CPT1A knockout HAP1 whole cell lysate at 20 µg

Lane 3:

HeLa whole cell lysate at 20 µg

Lane 4:

MCF7 whole cell lysate at 20 µg

Predicted band size: 88 kDa

Observed band size: 88 kDa

false

Exposure time: 3min
