HRP Anti-FABP4 antibody [EPR3579]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-FABP4 antibody [EPR3579] (AB216528)

IHC image of FABP4 staining in a section of formalin-fixed paraffin-embedded normal human breast*, performed on a Leica BOND™. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab216528, 1/50 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• WB

Lab

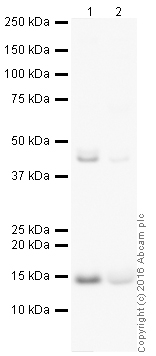

Western blot - HRP Anti-FABP4 antibody [EPR3579] (AB216528)

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab216528 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-FABP4 antibody [EPR3579] (ab216528) at 1/5000 dilution

Lane 1:

Human Adipose at 10 µg

Lane 2:

Heart (Human) Tissue Lysate - adult normal tissue at 10 µg

Predicted band size: 15 kDa

Observed band size: 15 kDa

true

Exposure time: 5s
