Rabbit Recombinant Monoclonal Hsp47 antibody - conjugated to HRP. Suitable for IHC-P, WB and reacts with Human, Mouse samples.

Be the first to review this product! Submit a review

Images

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Hsp47 antibody [EPR4217] (AB193242), expandable thumbnail
  • Western blot - HRP Anti-Hsp47 antibody [EPR4217] (AB193242), expandable thumbnail

Key facts

Isotype
IgG
Host species
Rabbit
Conjugation
HRP
Storage buffer

pH: 7.4
Preservative: 0.1% Proclin 300 Solution
Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Form
Liquid
Clonality
Monoclonal

Immunogen

  • The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

Select an application
Product promiseTestedExpectedPredictedNot recommended
IHC-PWB
Human
Tested
Expected
Mouse
Expected
Tested

Tested
Tested

Species
Human
Dilution info
1/100
Notes

Perform heat-mediated antigen retrieval with citrate buffer pH 6 before commencing with IHC staining protocol.

Expected
Expected

Species
Mouse
Dilution info
Use at an assay dependent concentration.
Notes

-

Tested
Tested

Species
Mouse
Dilution info
1/5000
Notes

-

Expected
Expected

Species
Human
Dilution info
Use at an assay dependent concentration.
Notes

-

Associated Products

Select an associated product type

2 products for Alternative Product

1 product for Alternative Version

Target data

Function

Binds specifically to collagen. Could be involved as a chaperone in the biosynthetic pathway of collagen.

Alternative names

CBP1, CBP2, HSP47, SERPINH2, PIG14, SERPINH1, Serpin H1, 47 kDa heat shock protein, Arsenic-transactivated protein 3, Cell proliferation-inducing gene 14 protein, Collagen-binding protein, Rheumatoid arthritis-related antigen RA-A47, AsTP3, Colligin

Recommended products

Rabbit Recombinant Monoclonal Hsp47 antibody - conjugated to HRP. Suitable for IHC-P, WB and reacts with Human, Mouse samples.

Key facts

Isotype
IgG
Conjugation
HRP
Form
Liquid
Clonality
Monoclonal
Immunogen
  • The exact immunogen used to generate this antibody is proprietary information.
Clone number
EPR4217
Purification technique
Affinity purification Protein A
Concentration
Loading...

Storage

Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Stable for 12 months at -20°C, Store in the dark

Notes

Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Supplementary info

This supplementary information is collated from multiple sources and compiled automatically.
Activity summary

Hsp47 also known as the heat shock protein 47 is a molecular chaperone with a molecular weight of approximately 47 kDa. It mainly resides in the endoplasmic reticulum and participates in collagen synthesis. Hsp47 binds specifically to unfolded procollagen chains ensures their proper folding and prevents premature aggregation. Due to its specialized function Hsp47 is highly expressed in collagen-producing cells like fibroblasts. Researchers commonly study this protein using techniques like Hsp47 ELISA to measure its expression or activity levels.

Biological function summary

Hsp47 ensures the quality control of collagen within the secretory pathway. It does not form part of any large protein complexes but operates closely with collagen molecules. By stabilizing procollagen's triple-helix structure Hsp47 plays an important role in collagen biosynthesis. Dysfunctional collagen processes can arise without this protein's presence potentially leading to cellular stress or structural weaknesses within tissues rich in collagen.

Pathways

Hsp47's activity integrates into the collagen synthesis and secretion pathways. This protein is related to other molecular chaperones such as Hsp70 that assist in maintaining protein homeostasis within the cell. Hsp47’s function links to fibrosis pathways because of its role in collagen maturation. In terms of fibrotic pathologies this involvement makes the chaperoning of procollagen a critical control point.

Associated diseases and disorders

Disrupted Hsp47 function frequently associates with fibrotic conditions and osteogenesis imperfecta. Fibrosis results from excessive collagen deposition in which Hsp47 is deeply implicated. Additionally certain cancer types have shown altered Hsp47 expression correlating with increased cancer cell invasiveness due to extracellular matrix remodeling. Studies have noted interactions between Hsp47 and TGF-beta signaling in fibrotic tissues reinforcing its role in pathological collagen turnover.

Product promise

We are dedicated to supporting your work with high quality reagents and we are here for you every step of the way should you need us.

In the unlikely event of one of our products not working as expected, you are covered by our product promise.

Full details and terms and conditions can be found here:
Terms & Conditions.

2 product images

  • Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Hsp47 antibody [EPR4217] (ab193242), expandable thumbnail

    Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Hsp47 antibody [EPR4217] (ab193242)

    IHC image of Hsp47 staining in a section of formalin-fixed paraffin-embedded normal human placenta tissue*, performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab193242 at 1/100 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

    For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

    *Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

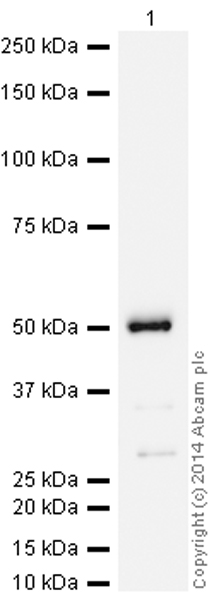

  • Western blot - HRP Anti-Hsp47 antibody [EPR4217] (ab193242), expandable thumbnail

    Western blot - HRP Anti-Hsp47 antibody [EPR4217] (ab193242)

    This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab193242 overnight at 4°C. Antibody binding was visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.

    All lanes: Western blot - HRP Anti-Hsp47 antibody [EPR4217] (ab193242) at 1/5000 dilution

    All lanes: NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

    Developed using the ECL technique.

    Performed under reducing conditions.

    Predicted band size: 46 kDa

    Observed band size: 46 kDa

    Exposure time: 4min

Downloads

Product protocols

For this product, it's our understanding that no specific protocols are required. You can:

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
