HRP Anti-MAP1LC3A antibody [EP1528Y] - Autophagosome Marker

2 product images

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-MAP1LC3A antibody [EP1528Y] (ab205439)

  IHC image of MAP1LC3A staining in a section of formalin-fixed paraffin-embedded normal human hippocampus tissue, performed on a Leica BOND^TM. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab205439, 1/150 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.


  For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

•

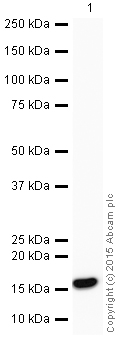

  Western blot - HRP Anti-MAP1LC3A antibody [EP1528Y] - Autophagosome Marker (ab205439)

  MAP1LC3A Western blot staining of Brain (Human) Tissue Lysate - fetal normal tissue using rabbit Anti-MAP1LC3A antibody

  This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab205439 overnight at 4°C. Antibody binding was visualised using ECL development solution ECL Substrate Kit (High Sensitivity) ab133406.

  All lanes: Western blot - HRP Anti-MAP1LC3A antibody [EP1528Y] - Autophagosome Marker (ab205439) at 1/5000 dilution

  All lanes: Brain (Human) Tissue Lysate - fetal normal tissue at 10 µg

  Developed using the ECL technique.

  Performed under reducing conditions.

  Predicted band size: 14 kDa

  Observed band size: 16 kDa

  Exposure time: 4min
