AB198037

HRP Anti-Mitofilin antibody [2E4AD5]

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal Mitofilin antibody - conjugated to HRP. Suitable for WB and reacts with Human samples. Cited in 1 publication.

View Alternative Names

HMP, MIC60, MINOS2, PIG4, PIG52, IMMT, MICOS complex subunit MIC60, Cell proliferation-inducing gene 4/52 protein, Mitochondrial inner membrane protein, Mitofilin, p87/89

1 Images
Western blot - HRP Anti-Mitofilin antibody [2E4AD5] (AB198037)
  • WB

Lab

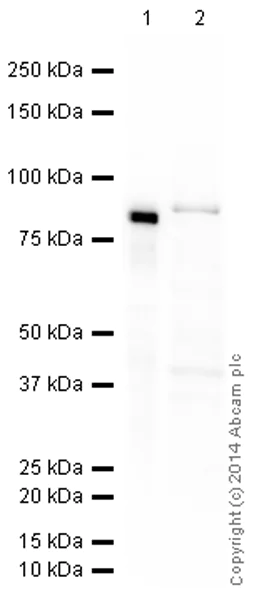

Western blot - HRP Anti-Mitofilin antibody [2E4AD5] (AB198037)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab198037 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-Mitofilin antibody [2E4AD5] (ab198037) at 1/5000 dilution

Lane 1:

Human heart tissue lysate - mitochondrial extract (<a href='/en-us/products/unavailable/human-heart-tissue-lysate-mitochondrial-extract-ab110337'>ab110337</a>) at 5 µg

Lane 2:

HepG2 (Human hepatocellular liver carcinoma cell line) Whole Cell Lysate at 20 µg

Predicted band size: 84 kDa

Observed band size: 84 kDa

true

Exposure time: 30s

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

2E4AD5

Isotype

IgG1

Light chain type

kappa

Conjugation

HRP

Excitation/Emission
Carrier free

No

Reacts with

Human

Applications

WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Alternative Products

Primary Antibodies

AB93323

Anti-Mitofilin antibody

Immunocytochemistry/ Immunofluorescence - Anti-Mitofilin antibody (AB93323)

  • 0
  • 0
Primary Antibodies

AB137057

Anti-Mitofilin antibody [EPR8749]

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Mitofilin antibody [EPR8749] (AB137057)

  • 0
  • 0
Primary Antibodies

AB245764

Anti-Mitofilin antibody [EPR8749] - BSA and Azide free

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Mitofilin antibody [EPR8749] - BSA and Azide free (AB245764)

  • 0
  • 0
Primary Antibodies

AB264372

Anti-Mitofilin antibody

Immunoprecipitation - Anti-Mitofilin antibody (AB264372)

  • 0
  • 0
Primary Antibodies

AB229653

Anti-Mitofilin antibody

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-Mitofilin antibody (AB229653)

  • 0
  • 0

Complementary Products

Primary Antibodies

AB209606

Alexa Fluor® 647 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 647 Anti-TOMM20 antibody [EPR15581-54] - Mitochondrial Marker (AB209606)

  • 5
  • 2
Secondary Antibodies

AB150113

Goat Anti-Mouse IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Mouse IgG H&L (Alexa Fluor® 488) (AB150113)

  • 5
  • 16
Primary Antibodies

AB225165

PE Anti-Flotillin 1 antibody [EPR6041]

RabMAb|Recombinant

Flow Cytometry (Intracellular) - PE Anti-Flotillin 1 antibody [EPR6041] (AB225165)

  • 0
  • 0
Primary Antibodies

AB210675

Alexa Fluor® 555 Anti-COX IV antibody [EPR9442(ABC)] - Mitochondrial Marker

RabMAb|Recombinant

Immunocytochemistry/ Immunofluorescence - Alexa Fluor® 555 Anti-COX IV antibody [EPR9442(ABC)] - Mitochondrial Marker (AB210675)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>" }, "Mouse": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rat": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Cow": { "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.4 Preservative: 0.1% Proclin 300 Solution Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Mitofilin also known as mitofilin or MIM is a protein with a mass of approximately 88 kDa. This protein is integral to the inner mitochondrial membrane. Mitofilin is found in various tissues with high expression in the heart and skeletal muscle indicating its significant role in energy-demanding tissues. It is the central component of the mitochondrial inner membrane organizing system (MINOS) which plays a fundamental role in maintaining the mitochondrial architecture.
Biological function summary

Within the mitochondrial environment mitofilin contributes to maintaining cristae morphology which is essential for optimal mitochondrial respiration and energy production. As part of the MINOS complex mitofilin interacts with other proteins such as Mic60 and Mic10 stabilizing the structure of crista junctions. This process ensures efficient electron transport chain function ultimately supporting ATP synthesis. Without effective shaping of the cristae cellular energy metabolism deteriorates.

Pathways

Research has highlighted the importance of mitofilin in apoptosis and bioenergetics pathways. It interacts with proteins like OPA1 a dynamin-related GTPase important for mitochondrial fusion and energy metabolism. Additionally mitofilin influences the release of cytochrome c an important step in the initiation of apoptosis. Proper functioning of these pathways is critical for cellular balance and survival showing mitofilin’s broad impact on cellular processes.

Mitofilin has links to mitochondrial myopathies and cardiomyopathies. These disorders stem from impaired mitochondrial function significantly affecting muscle tissues and heart performance. Disruption in mitofilin expression or function can lead to compromised energy production contributing to these conditions. Furthermore mitofilin has associations with proteins like Drp1 involved in mitochondrial dynamics and this relationship can influence the progression and severity of mitochondrial-related diseases.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Component of the MICOS complex, a large protein complex of the mitochondrial inner membrane that plays crucial roles in the maintenance of crista junctions, inner membrane architecture, and formation of contact sites to the outer membrane (PubMed : 22114354, PubMed : 25781180, PubMed : 32567732, PubMed : 33130824). Plays an important role in the maintenance of the MICOS complex stability and the mitochondrial cristae morphology (PubMed : 22114354, PubMed : 25781180, PubMed : 32567732, PubMed : 33130824).
See full target information IMMT
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Theranostics 12:1074-1096 PubMed35154475

2022

Single-cell RNA landscape of the osteoimmunology microenvironment in periodontitis.

Applications

Unspecified application

Species

Unspecified reactive species

Yue Chen,Hua Wang,Qiudong Yang,Wenhua Zhao,Yuyi Chen,Qiaoqi Ni,Wenlei Li,Jiali Shi,Wei Zhang,Lu Li,Yan Xu,Hengwei Zhang,Dengshun Miao,Lianping Xing,Wen Sun
