AB209022

HRP Anti-mtTFA antibody [EPR12285] - Mitochondrial Marker

RabMAb
Recombinant
Lab Essentials
What is this?

Be the first to review this product! Submit a review

(1 Publication)

Rabbit Recombinant Monoclonal mtTFA antibody - conjugated to HRP. Mitochondrion marker. Suitable for WB, IHC-P and reacts with Human samples. Cited in 1 publication.

View Alternative Names

TCF6, TCF6L2, TFAM, mtTFA, Mitochondrial transcription factor 1, Transcription factor 6, Transcription factor 6-like 2, MtTF1, TCF-6

1 Images

Lab

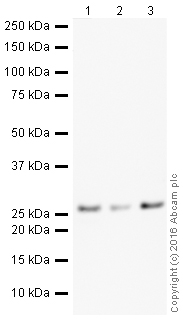

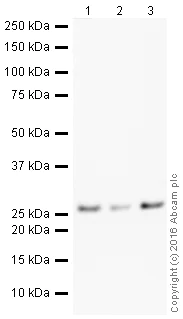

Western blot - HRP Anti-mtTFA antibody [EPR12285] - Mitochondrial Marker (AB209022)

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab209022 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-mtTFA antibody [EPR12285] - Mitochondrial Marker (ab209022) at 1/5000 dilution

Lane 1:

Western blot - HeLa whole cell lysate (<a href='/en-us/products/cell-lysates/hela-whole-cell-lysate-ab150035'>ab150035</a>) at 10 µg

Lane 2:

MCF-7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Lane 3:

HEK293 (Human embryonic kidney cell line) Whole Cell Lysate at 10 µg

Predicted band size: 29 kDa

Observed band size: 26 kDa

true

Exposure time: 20min

578 PE

PE Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
660 APC

APC Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
519 Alexa Fluor® 488

Alexa Fluor® 488 Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
617 Alexa Fluor® 594

Alexa Fluor® 594 Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
565 Alexa Fluor® 555

Alexa Fluor® 555 Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
665 Alexa Fluor® 647

Alexa Fluor® 647 Anti-mtTFA antibody [EPR12285] – Mitochondrial Marker
775 Alexa Fluor® 750

Alexa Fluor® 750 Anti-mtTFA antibody [EPR12285] - Mitochondrial Marker
Unconjugated

Anti-mtTFA antibody [EPR12285] - Mitochondrial Marker
Carrier free

Anti-mtTFA antibody [EPR12285] - BSA and Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR12285

Isotype

IgG

Conjugation

HRP

Excitation/Emission

Carrier free

Reacts with

Human, Human

Applications

IHC-P, WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style

left-column

style

left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>", "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "<p></p>" } } }

style

left-column

Product details

Patented technology
Our RabMAb^® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb^® patents.

style

left-column

Properties and storage information

Form

Liquid

Purification technique

Affinity purification Protein A

Storage buffer

pH: 7.4 Preservative: 0.1% Proclin 300 Solution Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA

Shipped at conditions

Blue Ice

Appropriate short-term storage duration

1-2 weeks

Appropriate short-term storage conditions

+4°C

Appropriate long-term storage conditions

-20°C

Aliquoting information

Upon delivery aliquot

Storage information

Avoid freeze / thaw cycle|Store in the dark

style

left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

MtTFA also known as mitochondrial transcription factor A or TFAM is an important element in mitochondrial DNA regulation. It plays a pivotal role in maintaining mitochondrial genome integrity and ensuring proper mitochondrial function. This protein weighing approximately 25 kDa is expressed within the mitochondria. It binds to the mitochondrial DNA facilitating the transcription and replication processes ensuring the correct functioning of cellular energy metabolism.

Biological function summary

MtTFA is essential for mitochondrial DNA packaging and transcriptional activation. It acts as a binding factor that organizes the mtDNA into a nucleoid-like structure providing protection and stability. MtTFA functions as part of a larger multi-protein complex that includes mitochondrial RNA polymerase ensuring proper transcription of mitochondrial genes. These activities are critical for normal energy production and mitochondrial biogenesis.

Pathways

The mtTFA protein is integral to the oxidative phosphorylation and mitochondrial biogenesis pathways. It orchestrates the expression of genes critical for these pathways alongside related proteins like NRF2 and PGC-1α. MtTFA ensures effective mitochondrial function by modulating the transcription of key mitochondrial-encoded components necessary for electron transport and ATP synthesis thereby sustaining cellular energy balance.

MtTFA dysregulation is associated with mitochondrial diseases and neurodegenerative disorders. Abnormal mtTFA activity disrupts mitochondrial DNA maintenance potentially leading to conditions like mitochondrial myopathy. It is also linked with proteins such as POLG which are involved in mitochondrial DNA replication. Understanding mtTFA's role in these pathologies highlights its importance as a target in therapeutic strategies aimed at restoring mitochondrial function and preventing disease progression.

style

left-column

style

left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Visit the General protocols
Visit the Troubleshooting

style

left-column

Target data

Binds to the mitochondrial light strand promoter and functions in mitochondrial transcription regulation (PubMed : 29445193, PubMed : 32183942). Component of the mitochondrial transcription initiation complex, composed at least of TFB2M, TFAM and POLRMT that is required for basal transcription of mitochondrial DNA (PubMed : 29149603). In this complex, TFAM recruits POLRMT to a specific promoter whereas TFB2M induces structural changes in POLRMT to enable promoter opening and trapping of the DNA non-template strand (PubMed : 20410300). Required for accurate and efficient promoter recognition by the mitochondrial RNA polymerase (PubMed : 22037172). Promotes transcription initiation from the HSP1 and the light strand promoter by binding immediately upstream of transcriptional start sites (PubMed : 22037172). Is able to unwind DNA (PubMed : 22037172). Bends the mitochondrial light strand promoter DNA into a U-turn shape via its HMG boxes (PubMed : 1737790). Required for maintenance of normal levels of mitochondrial DNA (PubMed : 19304746, PubMed : 22841477). May play a role in organizing and compacting mitochondrial DNA (PubMed : 22037171).

See full target information TFAM

style

left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

European journal of medical research 29:554 PubMed39558432

2024

MiR-10b-5p attenuates spinal cord injury and alleviates LPS-induced PC12 cells injury by inhibiting TGF-β1 decay and activating TGF-β1/Smad3 pathway through PTBP1.

Applications

Unspecified application

Species

Unspecified reactive species

Huandong Liu,Chong Liang,Hongfei Liu,Ping Liang,Huilin Cheng

View all publications

style

left-column

style

left-column

style

right-column

Product promise

We are committed to supporting your work with high-quality reagents, and we're here for you every step of the way. In the unlikely event that one of our products does not perform as expected, you're protected by our Product Promise.

For full details, please see our Terms & Conditions

Please note: All products are 'FOR RESEARCH USE ONLY. NOT FOR USE IN DIAGNOSTIC OR THERAPEUTIC PROCEDURES'.
