AB209961

HRP Anti-PD-L1 antibody [28-8]

Be the first to review this product! Submit a review

|

(1 Publication)

Rabbit Recombinant Monoclonal PD-L1 antibody - conjugated to HRP. Suitable for WB and reacts with Transfected cell lysate, Human samples. Cited in 1 publication.

View Alternative Names

CD274, B7H1, PDCD1L1, PDCD1LG1, PDL1, Programmed cell death 1 ligand 1, PD-L1, PDCD1 ligand 1, Programmed death ligand 1, hPD-L1, B7 homolog 1, B7-H1

1 Images
Western blot - HRP Anti-PD-L1 antibody [28-8] (AB209961)
  • WB

Lab

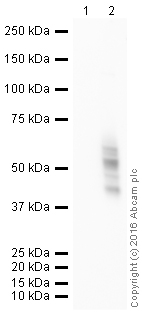

Western blot - HRP Anti-PD-L1 antibody [28-8] (AB209961)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab209961 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-PD-L1 antibody [28-8] (ab209961) at 1/1000 dilution

Lane 1:

CHO-S at 10 µg

Lane 2:

CHO-PD-L1 at 10 µg

Predicted band size: 33 kDa

Observed band size: 40-60 kDa

true

Exposure time: 20min

  • 660 APC

    APC Anti-PD-L1 antibody [28-8]

  • 519 Alexa Fluor® 488

    Alexa Fluor® 488 Anti-PD-L1 antibody [28-8]

  • 578 PE

    PE Anti-PD-L1 antibody [28-8]

  • 519 FITC

    FITC Anti-PD-L1 antibody [28-8]

  • 565 Alexa Fluor® 555

    Alexa Fluor® 555 Anti-PD-L1 antibody [28-8]

  • 617 Alexa Fluor® 594

    Alexa Fluor® 594 Anti-PD-L1 antibody [28-8]

  • 603 Alexa Fluor® 568

    Alexa Fluor® 568 Anti-PD-L1 antibody [28-8]

  • 665 Alexa Fluor® 647

    Alexa Fluor® 647 Anti-PD-L1 antibody [28-8] - Extracellular domain

  • Biotin

    Biotin Anti-PD-L1 antibody [28-8] (Detector)

  • Unconjugated

    Anti-PD-L1 antibody [28-8]

  • Carrier free

    Anti-PD-L1 antibody [28-8] - BSA and Azide free (Detector)

  • Carrier free

    Anti-PD-L1 antibody [28-8] - BSA and Azide free

  • Carrier free

    Anti-PD-L1 antibody [28-8] - Low endotoxin, Azide free

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

28-8

Isotype

IgG

Conjugation

HRP

Excitation/Emission
Carrier free

No

Reacts with

Human

Applications

WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "guaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>" }, "Transfected cell lysate": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/1000", "WB-species-notes": "<p></p>" } } }
style
left-column

Product details

Anti-PD-L1 antibody [28-8] has been used as detector antibody in Human PD-L1 SimpleStep ELISA® kit (ab214565).

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.1% Proclin 300 Solution Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

PD-L1 also known as Programmed Death-Ligand 1 or CD274 is a protein involved in immune modulation. Mechanically PD-L1 interacts with its receptors particularly PD-1 to regulate cellular immune responses. This transmembrane protein has a calculated molecular weight of approximately 33 kDa. PD-L1 is expressed on various cell types including tumor cells and immune cells such as dendritic cells macrophages and B cells. Its expression is often upregulated in response to inflammatory cytokines.
Biological function summary

PD-L1 plays a central role in immune evasion mechanisms utilized by tumors. It is not part of a larger protein complex but directly interacts with PD-1 and CD80. When PD-L1 binds to PD-1 it sends inhibitory signals leading to decreased T cell activation and proliferation allowing cancer cells to avoid immune destruction. PD-L1 expression provides a mechanism for tumors to suppress immune surveillance facilitating tumor progression.

Pathways

PD-L1 is integral to the immune checkpoint pathway which is an important regulator of immune response. The interaction between PD-L1 and PD-1 provides a mechanism for immune tolerance which is part of the broader adaptive immune system pathway. PD-L1 is related to other immune checkpoint proteins such as CTLA-4 in its function to limit autoreactivity and promote immune homeostasis.

PD-L1 is most associated with cancer particularly in tumors such as melanoma and non-small cell lung cancer. PD-L1 expression on tumor cells often correlates with poor prognosis. PD-L1 directly interacts with PD-1 in these cancers a target for immunotherapies such as checkpoint inhibitors which aim to block this interaction and restore immune activity against tumors. PD-L1 involvement extends to autoimmune disorders where altered expression can impact tolerance and lead to immune-related tissue damage.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Plays a critical role in induction and maintenance of immune tolerance to self (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 31399419). As a ligand for the inhibitory receptor PDCD1/PD-1, modulates the activation threshold of T-cells and limits T-cell effector response (PubMed : 11015443, PubMed : 28813410, PubMed : 28813417, PubMed : 36727298). Through a yet unknown activating receptor, may costimulate T-cell subsets that predominantly produce interleukin-10 (IL10) (PubMed : 10581077). Can also act as a transcription coactivator : in response to hypoxia, translocates into the nucleus via its interaction with phosphorylated STAT3 and promotes transcription of GSDMC, leading to pyroptosis (PubMed : 32929201).. The PDCD1-mediated inhibitory pathway is exploited by tumors to attenuate anti-tumor immunity and escape destruction by the immune system, thereby facilitating tumor survival (PubMed : 28813410, PubMed : 28813417). The interaction with PDCD1/PD-1 inhibits cytotoxic T lymphocytes (CTLs) effector function (By similarity). The blockage of the PDCD1-mediated pathway results in the reversal of the exhausted T-cell phenotype and the normalization of the anti-tumor response, providing a rationale for cancer immunotherapy (By similarity).
See full target information CD274
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Journal of extracellular vesicles 14:e70129 PubMed40766981

2025

Extracellular Vesicle Protein Panel Enables Early Lung Cancer Detection in a Large Clinical Cohort.

Applications

Unspecified application

Species

Unspecified reactive species

Linxiao Han,Yuanlin Song,Lin Tong,Jiayuan Sun,Xiaoju Zhang,Shujing Chen,Ying Li,Ziqi Wang,Lei Gao,Qiaoliang Zhu,Yencheng Chao,Xiaocen Wang,Ge Zhang,Wensi Zhu,Ludan He,Jie Liu,Qin Wang,Zuoren Wu,Yuanyuan Ji,Chunxue Bai,Xiuzhen Lv,Jian Zhou
View all publications
