AB197735

HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker

Be the first to review this product! Submit a review

|

(1 Publication)

Mouse Monoclonal PGP9.5 antibody - conjugated to HRP. Suitable for IHC-P, WB and reacts with Human, Mouse, Rat samples. Cited in 1 publication.

View Alternative Names

Ubiquitin carboxyl-terminal hydrolase isozyme L1, UCH-L1, Neuron cytoplasmic protein 9.5, PGP 9.5, Ubiquitin thioesterase L1, PGP9.5, UCHL1

2 Images
Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (AB197735)
  • IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (AB197735)

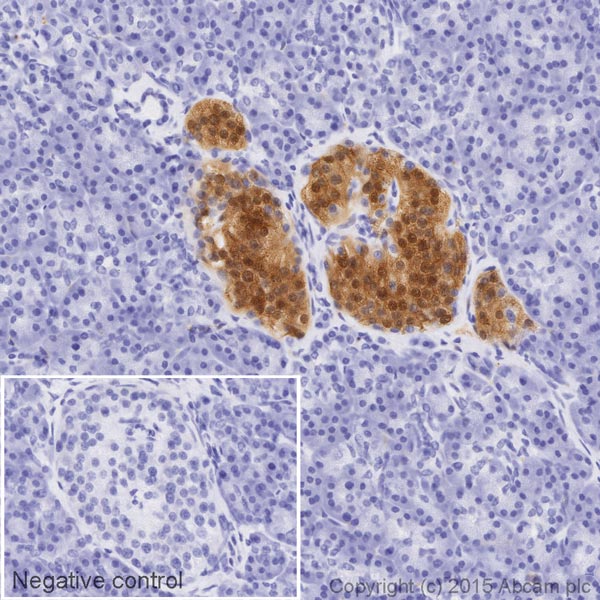

IHC image of PGP9.5 staining in a section of formalin-fixed paraffin-embedded normal human pancreas*, performed on a Leica BOND™. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab197735, 1/100 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

Western blot - HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (AB197735)
  • WB

Lab

Western blot - HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (AB197735)

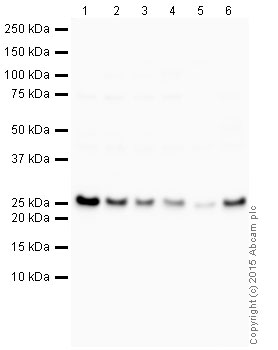

This blot was produced using a 4-12% Bis-tris gel under the MES buffer system. The gel was run at 200V for 35 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab197735 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406

All lanes:

Western blot - HRP Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker (ab197735) at 1/5000 dilution

Lane 1:

Brain (Human) Tissue Lysate - adult normal tissue at 20 µg

Lane 2:

Brain (Rat) Tissue Lysate at 20 µg

Lane 3:

Brain (Mouse) Tissue Lysate at 20 µg

Lane 4:

Brain Cortex (Rat) Tissue Lysate at 20 µg

Lane 5:

SHSY-5Y (Human neuroblastoma cell line) Whole Cell Lysate at 20 µg

Lane 6:

Spinal Cord (Human) Tissue Lysate - adult normal at 20 µg

Predicted band size: 24 kDa

Observed band size: 25 kDa

true

Exposure time: 8s

  • Carrier free

    Anti-PGP9.5 antibody [13C4 / I3C4] - BSA and Azide free

  • Unconjugated

    Anti-PGP9.5 antibody [13C4 / I3C4] - Neuronal Marker

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

13C4 / I3C4

Isotype

IgG2a

Conjugation

HRP

Excitation/Emission
Carrier free

No

Reacts with

Mouse, Rat, Human

Applications

WB, IHC-P

applications

style
left-column

Alternative Products

Primary Antibodies

AB27053

Anti-PGP9.5 antibody - Neuronal Marker

BOND RX™ Validated|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PGP9.5 antibody - Neuronal Marker (AB27053)

  • 4
  • 6
Primary Antibodies

AB196173

Alexa Fluor® 647 Anti-PGP9.5 antibody [EPR4118] - Neuronal Marker

RabMAb|Recombinant

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-PGP9.5 antibody [EPR4118] - Neuronal Marker (AB196173)

  • 0
  • 0
Primary Antibodies

AB108986

Anti-PGP9.5 antibody [EPR4118] - Neuronal Marker

BOND RX™ Validated|KO Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-PGP9.5 antibody [EPR4118] - Neuronal Marker (AB108986)

  • 5
  • 12
Primary Antibodies

AB109261

Anti-PGP9.5 antibody [EPR4117] - Neuronal Marker

RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PGP9.5 antibody [EPR4117] - Neuronal Marker (AB109261)

  • 3
  • 5
Primary Antibodies

AB220823

Anti-PGP9.5 antibody [EPR4118] - BSA and Azide free

BOND RX™ Validated|RabMAb|Recombinant|KO Validated

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-PGP9.5 antibody [EPR4118] - BSA and Azide free (AB220823)

  • 0
  • 0

Complementary Products

Assay Kits

AB323602

Human UCHL1 ELISA Kit- Extracellular

Recombinant|SimpleStep

Sandwich ELISA - Human UCHL1 ELISA Kit- Extracellular (AB323602)

  • 0
  • 0
Primary Antibodies

AB52642

Anti-S100 beta antibody [EP1576Y] - Astrocyte Marker

BOND RX™ Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-S100 beta antibody [EP1576Y] - Astrocyte Marker (AB52642)

  • 4
  • 37
Secondary Antibodies

AB150077

Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488)

Immunocytochemistry/ Immunofluorescence - Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) (AB150077)

  • 5
  • 20
Primary Antibodies

AB303565

Anti-CD68 antibody [RM1031]

BOND RX™ Validated|KO Validated|RabMAb|Recombinant|Lab Essentials|20ul selling size

Western blot - Anti-CD68 antibody [RM1031] (AB303565)

  • 0
  • 0
Primary Antibodies

AB305210

Alexa Fluor® 647 Anti-CD31 antibody [EPR17259]

BOND RX™ Validated|Recombinant|Advanced Validation|RabMAb

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Alexa Fluor® 647 Anti-CD31 antibody [EPR17259] (AB305210)

  • 0
  • 0
style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "IHCP" : {"fullname" : "Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections)", "shortname":"IHC-P"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "IHCP-species-checked": "testedAndGuaranteed", "IHCP-species-dilution-info": "1/100", "IHCP-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>" }, "Mouse": { "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>" }, "Rat": { "IHCP-species-checked": "guaranteed", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>" }, "Dog": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Guinea pig": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Pig": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rabbit": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Sheep": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Zebrafish": { "IHCP-species-checked": "predicted", "IHCP-species-dilution-info": "", "IHCP-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column
style
left-column

Properties and storage information

Form
Liquid
Purification technique
Affinity purification
Storage buffer
pH: 7.4 Preservative: 0.1% Proclin 300 Solution Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Protein Gene Product 9.5 (PGP9.5) also known as ubiquitin carboxyl-terminal hydrolase L1 (UCH-L1) is an enzyme of approximately 27 kDa mass. PGP9.5 is highly expressed in neurons and neuroendocrine cells and is involved in the processing of ubiquitinated proteins. Ubiquitination and deubiquitination are critical for maintaining cellular protein homeostasis. PGP9.5 is present in the central and peripheral nervous systems. Researchers often utilize PGP9.5 as a neuronal marker due to its strong expression in nerve tissues. Antibody clone 13C4 is commonly used in PGP9.5 immunohistochemistry to visualize this protein in histopathology sections.
Biological function summary

PGP9.5 plays a significant role in the ubiquitin-proteasome pathway where it regulates protein degradation. It functions by cleaving ubiquitin from ubiquitin-protein conjugates which can recycle ubiquitin for reuse impacting protein turnover. This process is important for removing misfolded or damaged proteins maintaining cellular integrity. PGP9.5 has not been documented as a part of any large multimeric complex; its action is rather individual yet vital in cellular processes.

Pathways

PGP9.5 is an important participant in the ubiquitin-dependent proteolysis pathway. This pathway controls the degradation of proteins that regulate cell cycle differentiation and neuromodulation. PGP9.5 works in tandem with other proteins such as the proteasome complex to remove proteins tagged for destruction. Another important pathway linked with PGP9.5 is the neuronal development pathway in which its activity supports neuron growth and repair.

Defective PGP9.5 function associates mainly with neurodegenerative diseases such as Parkinson's disease and Alzheimer's disease. Mutations or dysregulation in PGP9.5 expression are implicated in the pathogenesis of these conditions affecting protein degradation and neuronal health. Other proteins like α-synuclein in Parkinson's disease interact with PGP9.5 pathways indicating their involvement in disease mechanisms. Researchers consider PGP9.5 a potential biomarker for neuronal pathology through methods like PGP9.5 IHC allowing for evaluation of nerve damage and neuroendocrine tumor diagnosis.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Deubiquitinase that plays a role in the regulation of several processes such as maintenance of synaptic function, cardiac function, inflammatory response or osteoclastogenesis (PubMed : 22212137, PubMed : 23359680). Abrogates the ubiquitination of multiple proteins including WWTR1/TAZ, EGFR, HIF1A and beta-site amyloid precursor protein cleaving enzyme 1/BACE1 (PubMed : 22212137, PubMed : 25615526). In addition, recognizes and hydrolyzes a peptide bond at the C-terminal glycine of ubiquitin to maintain a stable pool of monoubiquitin that is a key requirement for the ubiquitin-proteasome and the autophagy-lysosome pathways (PubMed : 12408865, PubMed : 8639624, PubMed : 9774100). Regulates amyloid precursor protein/APP processing by promoting BACE1 degradation resulting in decreased amyloid beta production (PubMed : 22212137). Plays a role in the immune response by regulating the ability of MHC I molecules to reach cross-presentation compartments competent for generating Ag-MHC I complexes (By similarity). Mediates the 'Lys-48'-linked deubiquitination of the transcriptional coactivator WWTR1/TAZ leading to its stabilization and inhibition of osteoclastogenesis (By similarity). Deubiquitinates and stabilizes epidermal growth factor receptor EGFR to prevent its degradation and to activate its downstream mediators (By similarity). Modulates oxidative activity in skeletal muscle by regulating key mitochondrial oxidative proteins (By similarity). Enhances the activity of hypoxia-inducible factor 1-alpha/HIF1A by abrogateing its VHL E3 ligase-mediated ubiquitination and consequently inhibiting its degradation (PubMed : 25615526).
See full target information UCHL1
style
left-column

Publications (1)

Recent publications for all applications. Explore the full list and refine your search

Parasitology :1-8 PubMed40539550

2025

An accessible 3D HepG2/C3A liver spheroid model supporting the complete intrahepatocytic lifecycle of .

Applications

Unspecified application

Species

Unspecified reactive species

Claire H Caygill,Salwa Omar Alqurashi,Adriana Adolfi,Jessica Carson,Angelika Sturm,Daniel S Evans,Jess B Jinks,Koen J Dechering,Lisa Reimer,Shaun H Pennington,Parveen Sharma,Stephen A Ward,Giancarlo A Biagini
