HRP Anti-Retinoic Acid Receptor beta antibody [EPR2017]

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Retinoic Acid Receptor beta antibody [EPR2017] (AB198557)

IHC image of Retinoic Acid Receptor beta staining in a section of formalin-fixed paraffin-embedded human normal kidney*. The section was pre-treated using pressure cooker heat mediated antigen retrieval with sodium citrate buffer (pH6) for 30mins, and incubated overnight at +4°C with ab198557 at 1/50 dilution. DAB was used as the chromogen (ab103723), diluted 1/100 and incubated for 10min at room temperature. The section was counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• WB

Lab

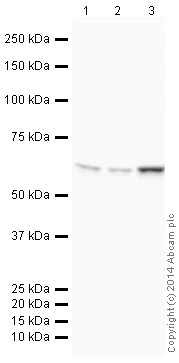

Western blot - HRP Anti-Retinoic Acid Receptor beta antibody [EPR2017] (AB198557)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab198557 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-Retinoic Acid Receptor beta antibody [EPR2017] (ab198557) at 1/5000 dilution

Lane 1:

MCF-7 (Human breast adenocarcinoma cell line) Whole Cell Lysate at 10 µg

Lane 2:

Daudi (Human Burkitt's lymphoma cell line) Whole Cell Lysate at 10 µg

Lane 3:

U-87 MG (Human glioblastoma astrocytoma) Whole Cell Lysate at 10 µg

Predicted band size: 50 kDa

Observed band size: 55 kDa

true

Exposure time: 3min
