AB198951

HRP Anti-STING antibody [EPR13130]

Be the first to review this product! Submit a review

|

(3 Publications)

Rabbit Recombinant Monoclonal STING antibody - conjugated to HRP. Suitable for WB and reacts with Human samples. Cited in 3 publications.

View Alternative Names

ERIS, MITA, STING, TMEM173, STING1, Stimulator of interferon genes protein, hSTING, Endoplasmic reticulum interferon stimulator, Mediator of IRF3 activation, Transmembrane protein 173, hMITA

1 Images
Western blot - HRP Anti-STING antibody [EPR13130] (AB198951)
  • WB

Lab

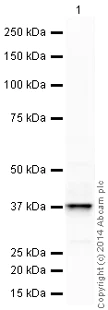

Western blot - HRP Anti-STING antibody [EPR13130] (AB198951)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 2% Bovine Serum Albumin before being incubated with ab198951 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-STING antibody [EPR13130] (ab198951) at 1/5000 dilution

All lanes:

THP1 (Human acute monocytic leukemia cell line) Whole Cell Lysate at 10 µg

Predicted band size: 42 kDa

Observed band size: 37 kDa

true

Exposure time: 2min

Key facts

Host species

Rabbit

Clonality

Monoclonal

Clone number

EPR13130

Isotype

IgG

Conjugation

HRP

Excitation/Emission
Carrier free

No

Reacts with

Human

Applications

WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "1/5000", "WB-species-notes": "<p></p>" } } }

Product details

Patented technology
Our RabMAb® technology is a patented hybridoma-based technology for making rabbit monoclonal antibodies. For details on our patents, please refer to RabMAb® patents.

What are the advantages of a recombinant monoclonal antibody?
This product is a recombinant monoclonal antibody, which offers several advantages including:

  • - High batch-to-batch consistency and reproducibility
  • - Improved sensitivity and specificity
  • - Long-term security of supply
  • - Animal-free batch production

For more information, read more on recombinant antibodies.

Properties and storage information

Form
Liquid
Purification technique
Affinity purification Protein A
Storage buffer
pH: 7.4 Preservative: 0.1% Proclin 300 Solution Constituents: PBS, 30% Glycerol (glycerin, glycerine), 1% BSA
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle|Store in the dark

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

The stimulator of interferon genes (STING) also known as TMEM173 or MPYS is a critical transmembrane protein with a molecular weight of approximately 42 kDa. It is primarily expressed in the endoplasmic reticulum of various cell types including immune cells where it plays a central role in sensing cytosolic DNA. STING binds to cyclic dinucleotides produced by the enzyme cGAS upon recognition of aberrant DNA in the cytosol. This binding initiates activation and translocation of STING to the Golgi apparatus facilitating further signaling events.
Biological function summary

STING serves as a pivotal regulator in the innate immune response to viral and bacterial infections. It operates by forming a signaling complex with kinases and other effector proteins which subsequently leads to the activation of transcription factors such as IRF3 and NF-kB. These transcription factors then induce the expression of type I interferons and other cytokines important for mounting an effective antiviral response. The STING pathway therefore enhances the immune system's ability to detect and respond to pathogens.

Pathways

The activity of STING is integral to the cGAS-STING pathway a significant cytosolic DNA-sensing pathway involved in innate immunity. Upon activation STING interacts with TBK1 a kinase that further phosphorylates IRF3 promoting its nuclear translocation and activation. Beyond this STING also intersects with pathways involving autophagy a cellular process necessary for clearing pathogens and damaged cellular components. Through these pathways STING critically contributes to upholding cellular homeostasis and immune defense.

The dysregulation of STING is linked to autoinflammatory diseases and certain cancers. Abnormal STING activation can lead to chronic inflammation a feature observed in diseases such as STING-associated vasculopathy with onset in infancy (SAVI). STING's role in cancer is also notable where its ability to activate immune cells can be harnessed in immunotherapy yet its chronic activation may promote tumorigenesis. In cancer STING often interacts with proteins like K-Ras influencing tumor growth and response to therapies.

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:

Target data

Facilitator of innate immune signaling that acts as a sensor of cytosolic DNA from bacteria and viruses and promotes the production of type I interferon (IFN-alpha and IFN-beta) (PubMed : 18724357, PubMed : 18818105, PubMed : 19433799, PubMed : 19776740, PubMed : 23027953, PubMed : 23747010, PubMed : 23910378, PubMed : 27801882, PubMed : 29973723, PubMed : 30842659, PubMed : 35045565, PubMed : 35388221, PubMed : 36808561, PubMed : 37832545). Innate immune response is triggered in response to non-CpG double-stranded DNA from viruses and bacteria delivered to the cytoplasm (PubMed : 26300263). Acts by binding cyclic dinucleotides : recognizes and binds cyclic di-GMP (c-di-GMP), a second messenger produced by bacteria, cyclic UMP-AMP (2',3'-cUAMP), and cyclic GMP-AMP (cGAMP), a messenger produced by CGAS in response to DNA virus in the cytosol (PubMed : 21947006, PubMed : 23258412, PubMed : 23707065, PubMed : 23722158, PubMed : 23747010, PubMed : 23910378, PubMed : 26229117, PubMed : 30842659, PubMed : 35388221, PubMed : 37379839). Upon binding to c-di-GMP, cUAMP or cGAMP, STING1 oligomerizes, translocates from the endoplasmic reticulum and is phosphorylated by TBK1 on the pLxIS motif, leading to recruitment and subsequent activation of the transcription factor IRF3 to induce expression of type I interferon and exert a potent anti-viral state (PubMed : 22394562, PubMed : 25636800, PubMed : 29973723, PubMed : 30842653, PubMed : 35045565, PubMed : 35388221). Exhibits 2',3' phosphodiester linkage-specific ligand recognition : can bind both 2'-3' linked cGAMP (2'-3'-cGAMP) and 3'-3' linked cGAMP but is preferentially activated by 2'-3' linked cGAMP (PubMed : 23747010, PubMed : 23910378, PubMed : 26300263). The preference for 2'-3'-cGAMP, compared to other linkage isomers is probably due to the ligand itself, whichs adopts an organized free-ligand conformation that resembles the STING1-bound conformation and pays low energy costs in changing into the active conformation (PubMed : 26150511). In addition to promote the production of type I interferons, plays a direct role in autophagy (PubMed : 30568238, PubMed : 30842662). Following cGAMP-binding, STING1 buds from the endoplasmic reticulum into COPII vesicles, which then form the endoplasmic reticulum-Golgi intermediate compartment (ERGIC) (PubMed : 30842662). The ERGIC serves as the membrane source for WIPI2 recruitment and LC3 lipidation, leading to formation of autophagosomes that target cytosolic DNA or DNA viruses for degradation by the lysosome (PubMed : 30842662). Promotes autophagy by acting as a proton channel that directs proton efflux from the Golgi to facilitate MAP1LC3B/LC3B lipidation (PubMed : 37535724). The autophagy- and interferon-inducing activities can be uncoupled and autophagy induction is independent of TBK1 phosphorylation (PubMed : 30568238, PubMed : 30842662). Autophagy is also triggered upon infection by bacteria : following c-di-GMP-binding, which is produced by live Gram-positive bacteria, promotes reticulophagy (By similarity). May be involved in translocon function, the translocon possibly being able to influence the induction of type I interferons (PubMed : 18724357). May be involved in transduction of apoptotic signals via its association with the major histocompatibility complex class II (MHC-II) (By similarity).. (Microbial infection) Antiviral activity is antagonized by oncoproteins, such as papillomavirus (HPV) protein E7 and adenovirus early E1A protein (PubMed : 26405230). Such oncoproteins prevent the ability to sense cytosolic DNA (PubMed : 26405230).
See full target information STING1

Publications (3)

Recent publications for all applications. Explore the full list and refine your search

BJC reports 3:49 PubMed40624140

2025

IL-6R expression is an independent prognostic factor in high-grade serous ovarian cancer.

Applications

Unspecified application

Species

Unspecified reactive species

Alexis M Maagdenberg,Annegé Vledder,Sterre T Paijens,Annechien Plat,Floris Foijer,Hans W Nijman,Marco de Bruyn

Nature methods 21:2248-2259 PubMed39478175

2024

Quality control for single-cell analysis of high-plex tissue profiles using CyLinter.

Applications

Unspecified application

Species

Unspecified reactive species

Gregory J Baker,Edward Novikov,Ziyuan Zhao,Tuulia Vallius,Janae A Davis,Jia-Ren Lin,Jeremy L Muhlich,Elizabeth A Mittendorf,Sandro Santagata,Jennifer L Guerriero,Peter K Sorger

International journal of clinical and experimental 10:10066-10074 PubMed31966897

2017

Expression of STING and MIF in tumor infiltration lymphocytes as prognostic factors in patients with ESCC.

Applications

Unspecified application

Species

Unspecified reactive species

Zhi-Chao Wang,Lin Zhang,Ze-Lei Li,Jing He,Ting-Ting Cai,Da-Jun Yang,De-Rong Xie
