HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker

• IHC-P

Lab

Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker (AB194718)

IHC image of Vimentin staining in a section of formalin-fixed paraffin-embedded human breast (Fibroadenoma)*, performed on a Leica BOND. The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH6, epitope retrieval solution 1) for 20mins. The section was then incubated with ab194718, 1/500 dilution, for 15 mins at room temperature. DAB was used as the chromogen. The section was then counterstained with haematoxylin and mounted with DPX. The inset negative control image is taken from an identical assay without primary antibody.

For other IHC staining systems (automated and non-automated) customers should optimize variable parameters such as antigen retrieval conditions, primary antibody concentration and antibody incubation times.

*Tissue obtained from the Human Research Tissue Bank, supported by the NIHR Cambridge Biomedical Research Centre

• WB

Lab

Western blot - HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker (AB194718)

ab194718 was shown to specifically react with VIM in wild-type HAP1 cells as signal was lost in VIM knockout cells. Wild-type and VIM knockout samples were subjected to SDS-PAGE. The membrane was blocked with 3% Milk. ab194718 and ab184095 (Mouse monoclonal [mAbcam 9484] to GAPDH - Loading Control (Alexa Fluor^® 680) loading control) were incubated overnight at 4°C at 1/1000 dilution and 1/20000 dilution respectively. The loading control was imaged using the Licor Odyssey CLx prior to blots being developed with ECL technique.

All lanes:

Western blot - HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker (ab194718) at 1/1000 dilution

Lane 1:

Wild-type HAP1 whole cell lysate at 20 µg

Lane 2:

VIM knockout HAP1 whole cell lysate at 20 µg

Predicted band size: 53 kDa

false

Exposure time: 150s

• WB

Lab

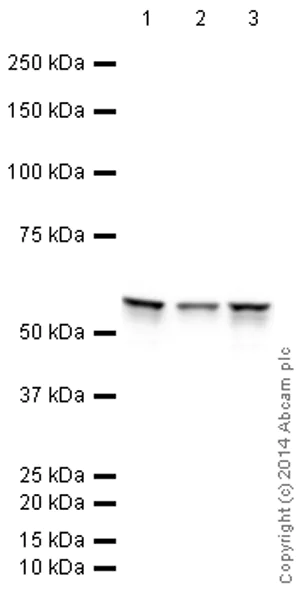

Western blot - HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker (AB194718)

This blot was produced using a 4-12% Bis-tris gel under the MOPS buffer system. The gel was run at 200V for 50 minutes before being transferred onto a Nitrocellulose membrane at 30V for 70 minutes. The membrane was then blocked for an hour using 3% milk before being incubated with ab194718 overnight at 4°C. Antibody binding was visualised using ECL development solution ab133406.

All lanes:

Western blot - HRP Anti-Vimentin antibody [EPR3776] - Cytoskeleton Marker (ab194718) at 1/1000 dilution

Lane 1:

Western blot - HeLa whole cell lysate (<a href='/en-us/products/cell-lysates/hela-whole-cell-lysate-ab150035'>ab150035</a>) at 10 µg

Lane 2:

A549 (Human lung adenocarcinoma epithelial cell line) Whole Cell Lysate at 10 µg

Lane 3:

HEK293 (Human embryonic kidney cell line) Whole Cell Lysate at 10 µg

Predicted band size: 53 kDa

Observed band size: 54 kDa

true

Exposure time: 2s
