Anti-HSF1 antibody [EP1710Y] - BSA and Azide free

11 product images

•

  ChIP - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

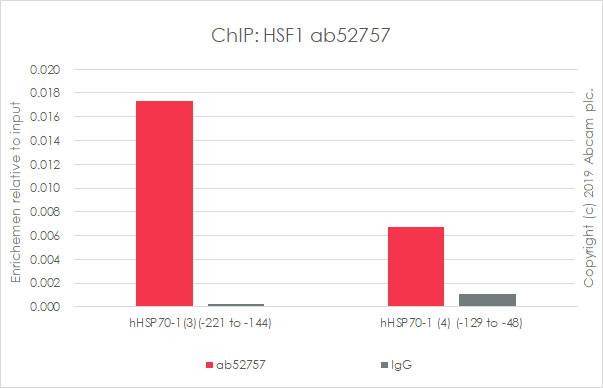

  Chromatin was prepared from HeLa cells heat shocked (42^oC 30 minutes) according to the Abcam Dual X-ChIP protocol. Cells were fixed with EGS for 30 minutes, then formaldehyde for 10 minutes.
  The ChIP was performed with 25 μg of chromatin, 5 μg of Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 (red), and 20 μl of Protein A/G sepharose beads. 5 μg of rabbit normal IgG was added to the beads control (gray). The immunoprecipitated DNA was quantified by real time PCR (sybr green approach).
  Primers and probes are located in the first kb of the transcribed region.
  *http://www.abcam.com/resources?keywords=X%20ChIP%20protocol
  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunoprecipitation - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 (purified) at 1:20 dilution (2μg) immunoprecipitating HSF1 in HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate.

  Lane 1 (input): HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate 10ug
  Lane 2 (+): Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 & HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate
  Lane 3 (-): Rabbit monoclonal IgG (Rabbit IgG, monoclonal [EPR25A] - Isotype Control ab172730) instead of ab52727 in HeLa (Human cervix adenocarcinoma epithelial cell) whole cell lysate

  For western blotting, VeriBlot for IP Detection Reagent (HRP) (VeriBlot for IP Detection Reagent (HRP) ab131366) was used for detection at 1:1000 dilution.
  Blocking and diluting buffer: 5% NFDM/TBST.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

  All lanes: Immunoprecipitation - Anti-HSF1 antibody [EP1710Y] - ChIP Grade (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757)

  Predicted band size: 57 kDa

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) analysis of Human ovarian carcinoma tissue sections labeling HSF1 with Purified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1:250 dilution (1.06 μg/ml). Heat mediated antigen retrieval was performed using Antigen Retrieval Buffer (100X Tris-EDTA Buffer, pH 9.0) ab93684 (Tris/EDTA buffer, pH 9.0). Tissue was counterstained with Hematoxylin. ImmunoHistoProbe one step HRP Polymer (ready to use) secondary antibody was used at 1:0 dilution. PBS instead of the primary antibody was used as the negative control.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunocytochemistry/ Immunofluorescence - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

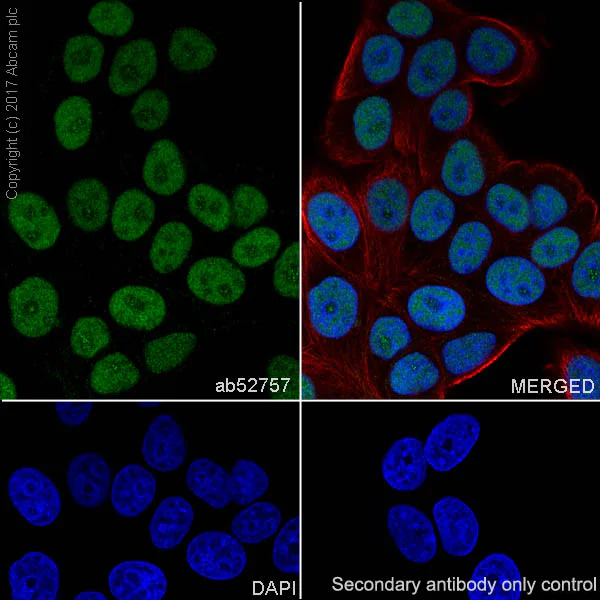

  Immunocytochemistry/ Immunofluorescence analysis of MCF7 (Human breast adenocarcinoma epithelial cell) cells labeling HSF1 with Purified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1:100 dilution. Cells were fixed in 4% Paraformaldehyde and permeabilized with 0.1% tritonX-100. Cells were counterstained with Alexa Fluor® 594 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker ab195889 Anti-alpha Tubulin antibody [DM1A] - Microtubule Marker (Alexa Fluor^® 594) 1:200. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077 Goat anti rabbit IgG(Alexa Fluor^® 488) was used as the secondary antibody at 1:1000 dilution. DAPI nuclear counterstain. PBS instead of the primary antibody was used as the secondary antibody only control.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Western blot - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Lanes 1 - 4: Merged signal (red and green). Green - Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 observed at 57 kDa. Red - loading control, Anti-GAPDH antibody [mAbcam 9484] - Loading Control ab9484, observed at 37 kDa.


  Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 was shown to specifically react with in wild-type HAP1 cells as signal was lost in Hsf1 knockout cells. Wild-type and Hsf1 knockout samples were subjected to SDS-PAGE. Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 and Anti-GAPDH antibody [mAbcam 9484] - Loading Control ab9484 (Mouse anti-GAPDH loading control) were incubated overnight at 4°C at 1/100000 dilution and 1/20000 dilution respectively. Blots were developed with Goat anti-Rabbit IgG H&L (IRDye^® 800CW) preabsorbed Goat anti-Rabbit IgG H&L (IRDye® 800CW) preadsorbed ab216773 and Goat anti-Mouse IgG H&L (IRDye^® 680RD) preabsorbed Goat anti-Mouse IgG H&L (IRDye® 680RD) preadsorbed ab216776 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

  All lanes: Western blot - Anti-HSF1 antibody [EP1710Y] - ChIP Grade (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757) at 1/100000 dilution

  Lane 1: Wild-type HAP1 whole cell lysate at 20 µg

  Lane 2: Hsf1 knockout HAP1 whole cell lysate at 20 µg

  Lane 3: HeLa whole cell lysate at 20 µg

  Lane 4: K562 whole cell lysate at 20 µg

  Predicted band size: 57 kDa

  Observed band size: 57 kDa

•

  Flow Cytometry (Intracellular) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

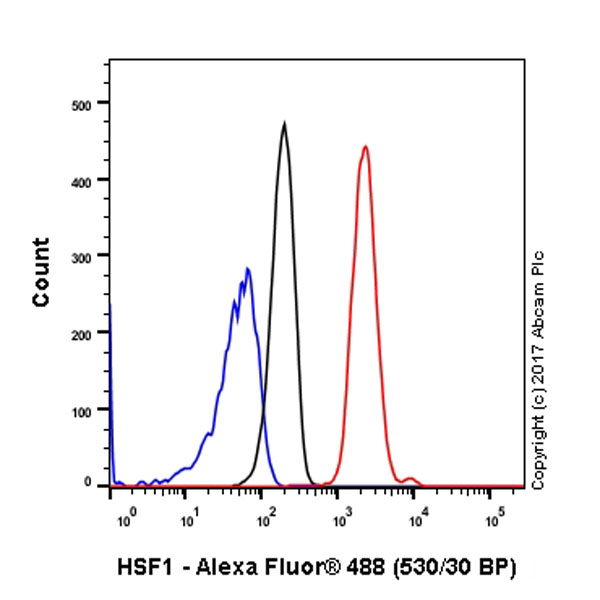

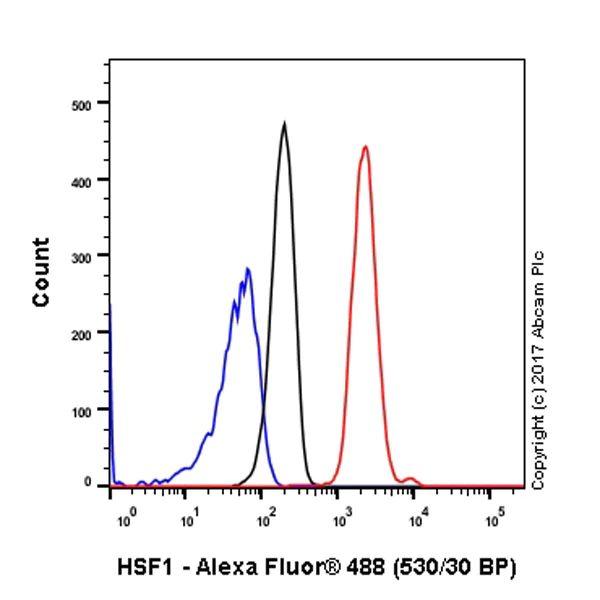

  Intracellular Flow Cytometry analysis of HeLa (Human cervix adenocarcinoma epithelial cell) cells labeling HSF1 with purified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1/20 dilution (10 μg/ml) (red). Cells were fixed with 80% Methanol and permeabilised with 0.1% Tween-20. A Goat anti rabbit IgG (Alexa Fluor^® 488) secondary antibody was used at 1/2000 dilution. Isotype control - Rabbit monoclonal IgG (Black). Unlabeled control - Cell without incubation with primary antibody and secondary antibody (Blue).


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Immunohistochemical analysis of paraffin-embedded Mouse colon tissue labeling HSF1 with Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1/1000 followed by a Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) Ready to use. Nuclear staining on mouse colon. The section was incubated with Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) Ready to use.

  Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Immunohistochemical analysis of paraffin-embedded Mouse testis tissue labeling HSF1 with Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1/1000 followed by a Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) Ready to use. Nuclear staining on mouse testis. The section was incubated with Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 for 30 mins at room temperature.The immunostaining was performed on a Leica Biosystems BOND^® RX instrument Counterstained with Hematoxylin.


  Secondary antibody only control: Secondary antibody is Rabbit specific IHC polymer detection kit HRP/DAB (Rabbit specific IHC polymer detection kit HRP/DAB ab209101) Ready to use.

  Heat mediated antigen retrieval with Citrate buffer (pH 6.0, epitope retrieval solution 1) for 20 mins

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunocytochemistry/ Immunofluorescence - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Immunocytochemistry/Immunofluorescence analysis of MCF-7 cells labelling HSF1 with unpurified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at 1/1000. Cells were fixed with 4% paraformaldehyde and permeabilized with 0.1% Triton X-100. Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077, an Alexa Fluor^® 488-conjugated goat anti-rabbit IgG (1/1000) was used as the secondary antibody.
  Control: PBS only.
  Nuclear counter stain: DAPI.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Flow Cytometry (Intracellular) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

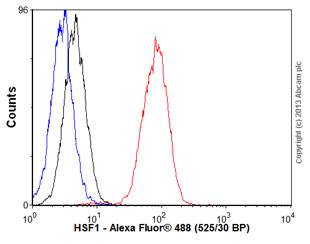

  Overlay histogram showing HeLa cells stained with unpurified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 (red line). The cells were fixed with 80% methanol (5 min) and then permeabilized with 0.1% PBS-Tween for 20 min. The cells were then incubated in 1x PBS / 10% normal goat serum / 0.3M glycine to block non-specific protein-protein interactions followed by the antibody (unpurified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757, 1/1000 dilution) for 30 min at 22°C. The secondary antibody used was Alexa Fluor^® 488 goat anti-rabbit IgG (H+L) (Goat Anti-Rabbit IgG H&L (Alexa Fluor® 488) ab150077) at 1/2000 dilution for 30 min at 22°C. Isotype control antibody (black line) was rabbit IgG (monoclonal) (0.1μg/1x10⁶ cells) used under the same conditions. Unlabelled sample (blue line) was also used as a control. Acquisition of >5,000 events were collected using a 20mW Argon ion laser (488nm) and 525/30 bandpass filter. This antibody gave a positive signal in HeLa cells fixed with 4% paraformaldehyde (10 min)/permeabilized with 0.1% PBS-Tween for 20 min used under the same conditions.


  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).

•

  Immunohistochemistry (Formalin/PFA-fixed paraffin-embedded sections) - Anti-HSF1 antibody [EP1710Y] - BSA and Azide free (ab232342)

  Immunohistochemical staining of paraffin-embedded human ovarian carcinoma using unpurified Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757 at a 1:100 dilution.

  This data was developed using the same antibody clone in a different buffer formulation containing PBS, BSA, glycerol, and sodium azide (Anti-HSF1 antibody [EP1710Y] - ChIP Grade ab52757).
