AB86750

Anti-Hsp47 antibody [134CT7.1.8]

1

(1 Review)

|

(0 Publication)

Mouse Monoclonal Hsp47 antibody. Suitable for WB and reacts with Mouse, Human samples.

View Alternative Names

Cbp1, Hsp47, Serpin H1, 47 kDa heat shock protein, Collagen-binding protein, GP46, Colligin

2 Images

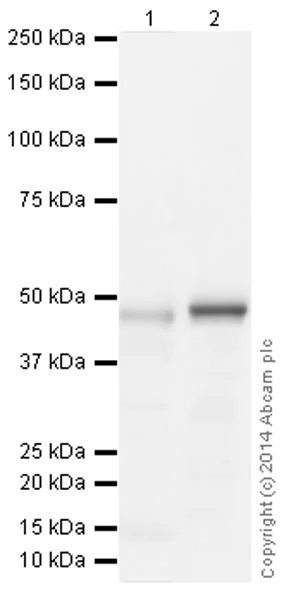

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (AB86750)
  • WB

Lab

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (AB86750)

All lanes:

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (ab86750) at 5 µg/mL

Lane 1:

Human placenta tissue lysate - total protein (<a href='/en-us/products/unavailable/human-placenta-tissue-lysate-total-protein-ab29745'>ab29745</a>) at 10 µg

Lane 2:

NIH 3T3 (Mouse embryonic fibroblast cell line) Whole Cell Lysate at 10 µg

Secondary

All lanes:

Western blot - Goat Anti-Mouse IgG H&L (HRP) preadsorbed (<a href='/en-us/products/secondary-antibodies/goat-mouse-igg-h-l-hrp-preadsorbed-ab97040'>ab97040</a>) at 1/10000 dilution

Predicted band size: 46 kDa

Observed band size: 47 kDa

true

Exposure time: 4min

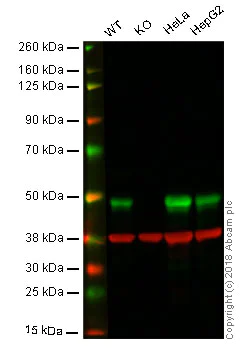

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (AB86750)
  • WB

Lab

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (AB86750)

Lane 1 : Wild-type HAP1 whole cell lysate (20 μg)
Lane 2 : Hsp47 knockout HAP1 whole cell lysate (20 μg)
Lane 3 : HeLa whole cell lysate (20 μg)
Lane 4 : HepG2 whole cell lysate (20 μg)

Lanes 1 - 4 : Merged signal (red and green). Green - ab86750 observed at 46 kDa. Red - loading control, ab181602, observed at 37 kDa.

ab86750 was shown to recognize Hsp47 in wild-type HAP1 cells as signal was lost at the expected MW in Hsp47 knockout cells. Additional cross-reactive bands were observed in the wild-type and knockout cells. Wild-type and Hsp47 knockout samples were subjected to SDS-PAGE. ab86750 and ab181602 (Rabbit anti-GAPDH loading control) were incubated overnight at 4°C at 5 μg/ml and 1/20000 dilution respectively. Blots were developed with Goat anti-Mouse IgG H&L (IRDye® 800CW) preabsorbed ab216772 and Goat anti-Rabbit IgG H&L (IRDye® 680RD) preabsorbed ab216777 secondary antibodies at 1/20000 dilution for 1 hour at room temperature before imaging.

All lanes:

Western blot - Anti-Hsp47 antibody [134CT7.1.8] (ab86750)

Predicted band size: 46 kDa

false

Key facts

Host species

Mouse

Clonality

Monoclonal

Clone number

134CT7.1.8

Isotype

IgG1

Carrier free

No

Reacts with

Mouse, Human

Applications

WB

applications

Immunogen

The exact immunogen used to generate this antibody is proprietary information.

style
left-column

Reactivity data

{ "title": "Reactivity Data", "filters": { "stats": ["", "Species", "Dilution Info", "Notes"], "tabs": { "all-applications": {"fullname" : "All Applications", "shortname": "All Applications"}, "FlowCytIntra" : {"fullname" : "Flow Cytometry (Intracellular)", "shortname":"Flow Cyt (Intra)"}, "WB" : {"fullname" : "Western blot", "shortname":"WB"} }, "product-promise": { "all": "all", "testedAndGuaranteed": "tested", "guaranteed": "expected", "predicted": "predicted", "notRecommended": "not-recommended" } }, "values": { "Human": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "<p></p>", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "5 µg/mL", "WB-species-notes": "<p></p>" }, "Mouse": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "testedAndGuaranteed", "WB-species-dilution-info": "5 µg/mL", "WB-species-notes": "<p></p>" }, "Rat": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Chicken": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Cow": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Dog": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Orangutan": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Pig": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Rabbit": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" }, "Xenopus laevis": { "FlowCytIntra-species-checked": "notRecommended", "FlowCytIntra-species-dilution-info": "", "FlowCytIntra-species-notes": "", "WB-species-checked": "predicted", "WB-species-dilution-info": "", "WB-species-notes": "" } } }
style
left-column

Product details

Want a custom formulation?
This antibody clone is manufactured by Abcam. If you require a custom buffer formulation or conjugation for your experiments, please contact orders@abcam.com
style
left-column

Properties and storage information

Form
Liquid
Purity
IgG fraction
Storage buffer
pH: 7.4 Preservative: 0.02% Sodium azide Constituents: PBS
Shipped at conditions
Blue Ice
Appropriate short-term storage duration
1-2 weeks
Appropriate short-term storage conditions
+4°C
Appropriate long-term storage conditions
-20°C
Aliquoting information
Upon delivery aliquot
Storage information
Avoid freeze / thaw cycle
style
left-column

Supplementary information

This supplementary information is collated from multiple sources and compiled automatically.

Hsp47 also known as the heat shock protein 47 is a molecular chaperone with a molecular weight of approximately 47 kDa. It mainly resides in the endoplasmic reticulum and participates in collagen synthesis. Hsp47 binds specifically to unfolded procollagen chains ensures their proper folding and prevents premature aggregation. Due to its specialized function Hsp47 is highly expressed in collagen-producing cells like fibroblasts. Researchers commonly study this protein using techniques like Hsp47 ELISA to measure its expression or activity levels.
Biological function summary

Hsp47 ensures the quality control of collagen within the secretory pathway. It does not form part of any large protein complexes but operates closely with collagen molecules. By stabilizing procollagen's triple-helix structure Hsp47 plays an important role in collagen biosynthesis. Dysfunctional collagen processes can arise without this protein's presence potentially leading to cellular stress or structural weaknesses within tissues rich in collagen.

Pathways

Hsp47's activity integrates into the collagen synthesis and secretion pathways. This protein is related to other molecular chaperones such as Hsp70 that assist in maintaining protein homeostasis within the cell. Hsp47’s function links to fibrosis pathways because of its role in collagen maturation. In terms of fibrotic pathologies this involvement makes the chaperoning of procollagen a critical control point.

Disrupted Hsp47 function frequently associates with fibrotic conditions and osteogenesis imperfecta. Fibrosis results from excessive collagen deposition in which Hsp47 is deeply implicated. Additionally certain cancer types have shown altered Hsp47 expression correlating with increased cancer cell invasiveness due to extracellular matrix remodeling. Studies have noted interactions between Hsp47 and TGF-beta signaling in fibrotic tissues reinforcing its role in pathological collagen turnover.
style
left-column
style
left-column

Product protocols

For this product, it's our understanding that no specific protocols are required. You can visit:
style
left-column

Target data

Binds specifically to collagen. Could be involved as a chaperone in the biosynthetic pathway of collagen.
